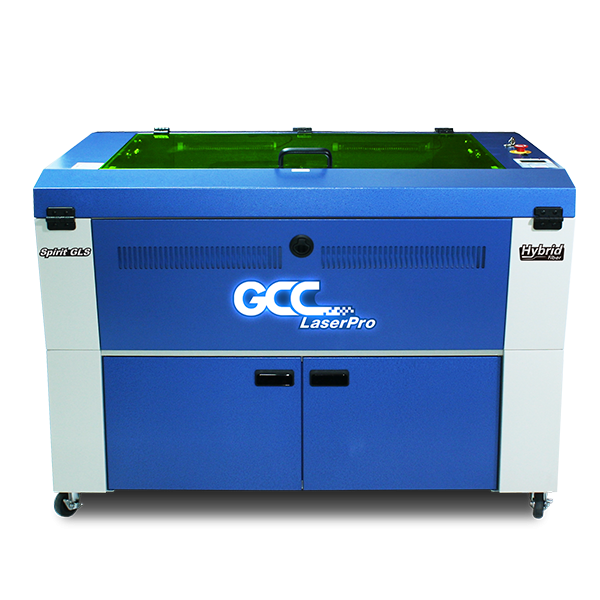

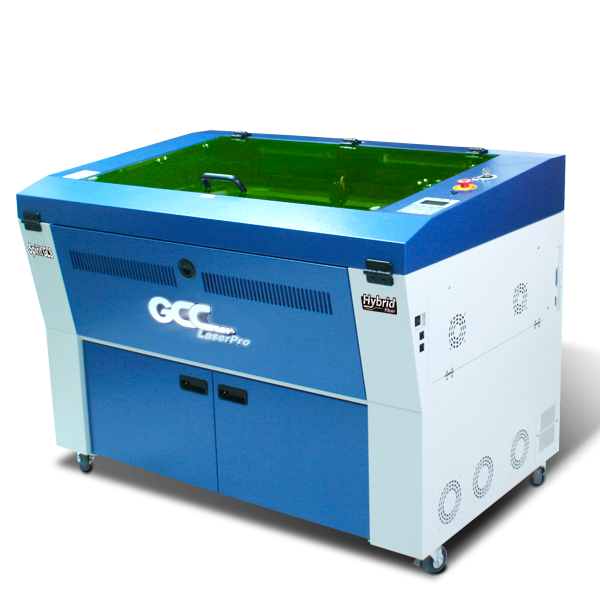

Spirit GLS Hybrid Laser Engraver
The GCC LaserPro Spirit GLS Hybrid is the flagship model of the award winning Spirit line of laser engravers.
Spirit-GLS-Hybrid-2
Spirit-GLS-Hybrid
Spirit-GLS-Hybrid-3
1 1
Laser Engraving Machine
Spirit GLS Hybrid Laser Engraver
In succession to GCC LaserPro's worldwide accolades features, Spirit GLS Hybrid further upscales its capability to CO2 & Fiber Hybrid laser option in one system.
Let this hybrid laser machine upgrade your business for more engraving, cutting, marking ap

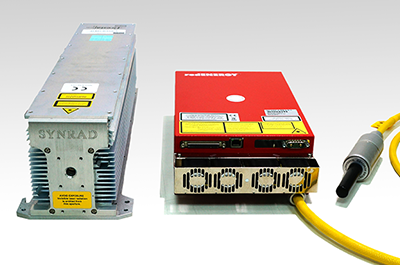

CO2 & Fiber Hybrid Lasers
GCC Hybrid technology allows to install CO2 & Fiber dual lasers in one system to expand your business from organic materials processing to direct metal engraving.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
DuraGuide
Systematic and reliable motion system embedded with strong mechanical framework, reinforced Kevlar belts, and accurate servomotor control technology to deliver superb output quality under rapid movement.
Closed-loop DC Servo Technology (Patented)
A Closed-loop DC servo motor can deliver greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy due to the continuous movement, instead of constant stopping and starting. GCC LaserPro high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptionally accurate outputs.
SmartCENTER™ (Patented)
The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
Astonish 3D Engraving
GCC LaserPro integrates laser firing control and image processing technology to create a 3D engraving function, the laser system assigns up to different laser powers to 200 levels of grayscale in the image to make the spectular 3D effects with different slopes.
TrueImage™ Engraving Technology (Patented)
Patented TrueImage feature smoothes the image engraving edge automatically by employing a unique laser firing algorithm to present image engraving in its most vivid form.

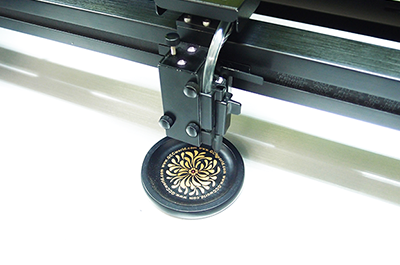

Real Pointer Alignment Feature
Extra beam combiner to align red pointer with laser beam, What You See is What You Get.
Rigid and Reliable Construction
Rigid and stable chassis construction ensures consistent output quality under high speed movement.
SmartACT™ (Patented)
Ground breaking technology that reduces the ramping process and job running time to boost productivity.
Key Switch & Emergency Stop
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

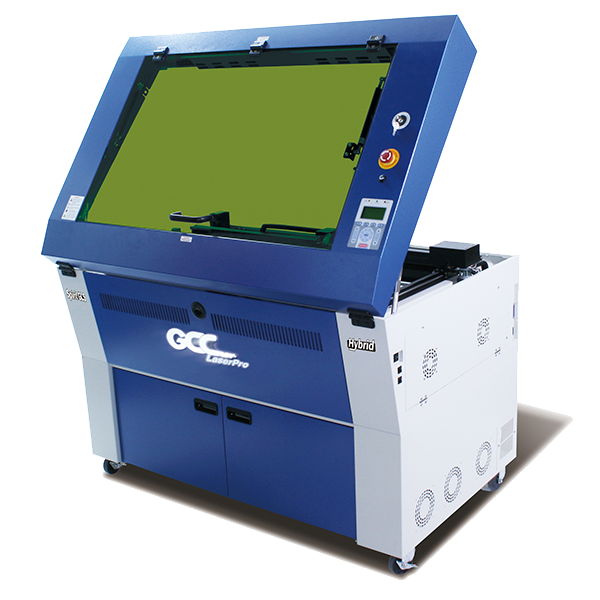

SmartLID™ (Patented)
An innovative lid that opens from both ends allowing easy access for daily maintenance.
SmartLIGHT
Built-in LED light module illuminates the working space and makes every engraving detail easy to see.
SmartPIN™ AutoFocus (Patented)
The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality in the lasering process.
Intuitive Control Panel Interface
A control panel with coherent hot-key design and graphical icon displays that allows you to change laser parameter settings, set jobs to repeat unlimited times, queue jobs, delete jobs, and more.
Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.
Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

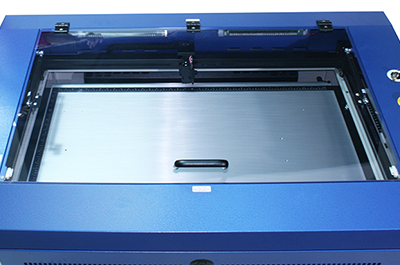

Extra large working Area
Extra large working area extendable to 38" x 24" (960 x 610 mm). The spacious platform allows jobs that require large working space.
Innovative Windows Driver
Directly output from familiar designing software like Illustrator, CorelDraw, AutoCad through GCC LaserPro unbeatable Windows driver featuring powerful functions such as SmartCENTER™ , Defocus by pen, Programmable Air Assist TrueImage, Vector Path Optimization and more allow easy set up and achieve marvelous output quality.
Programmable Origin Modes
Easy-to-use multiple position modes allow the operators an effortless way to setup a job with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
Built-In Networking Connection
Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility...MORE

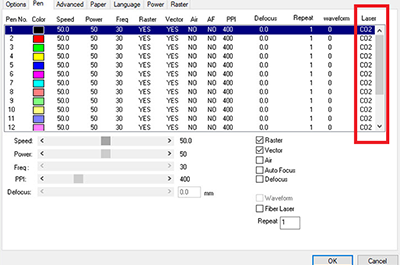

Automatically Switch Between Laser Tubes
GCC LaserPro dual-laser technology allows users to specify laser types per different color pens with Windows driver setting. The laser system will then switch automatically between laser tubes within one job. No optics change or manual adjustment is needed when switches happen between laser firings.

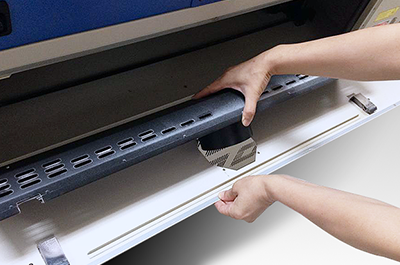

Removable Exhaust Duct
Easy access for cleaning dust accumulated in the exhaust duct on a regular basis helps maintain the ventilation efficiency and job quality.

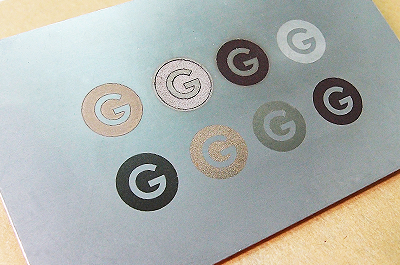

Multiple Laser Waveforms (for fiber laser)
GCC Fiber Laser is equipped unique Waveform function allowing greater control over laser pulse parameters such as laser pulse shape, pulse energy and pulse duration which can lead to more efficient and effective processing. Each waveform is optimized for pulse energy and peak power at a given pulse duration and frequency read more...
Pass-through Door Switch Module
Pass-through Door Switch Module
The Pass-through Door Switch Module is designed to activate the laser when the door is open which conforms the CDRH safety required by FDA.
Dust Prevention Window
Dust Prevention Window
When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.
SmartBOX™
SmartBOX™
An innovative technology that integrates the ventilation box with a honeycomb table or Aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.
External Interface Control Board
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC laser machines for communication with external devices such as odor reduction units, robot arms and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
Grid Cutting Table
Grid Cutting Table
The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum funnel exhaust. Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result. A clean and better
SmartPRINT™
SmartPRINT™
The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users. Currently, this new optional solution is compatible with GCC Spirit Series, VenusII, C180II, MercuryIII, S290LS and MG380Hybrid laser engravers. And GCC X Series and T500 laser cutters. -- more laser models are expected to join the line in the near future.
. SmartPRINT™ will run in trial mode and will cut a horizontal lines through your
SmartVISION™ Pro CCD
SmartVISION™ Pro CCD
GCC LaserPro utilizes CCD module to enhance productivity as it is able to learn, memorize and locate the printed graphics to perform contour cutting and automatically make adjustments to ensure the material is cut correctly. The LaserPro CCD module allows you to create incredibly accurate laser cuts around images that are print on wood, acrylic, cardstock and more.
Honeycomb Table
Honeycomb Table
The honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the work piece off the work table from hitting by laser reflection while supports it with honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by down vacuum funnel exhaust. Rather than handling rigid materials, honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus d
SmartGUARD™ Fire Alarm (Patented)
SmartGUARD™ Fire Alarm (Patented)
Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
Purex Fume Extraction System
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca
Rotary Attachment
Rotary Attachment
Allows the laser system to perform at another level! By using the rotary attachment, engraving on cylindrical or round objects is now possible. This option uses a fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixture available. The minimum/maximum diameter and length of the working object is 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.
Stack Light Set
Stack Light Set
The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Rotary Chuck
Rotary Chuck
The rotary Chuck for LaserPro Spirit GLS is a handy tool used for engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary Chuck allows for a fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. The diameter range of the to-be-engraved object is 0.5mm to 120mm and the max. length of the object is 410mm. Its maximum weight should not exceed 4kgs.
Multi-purpose Integrated SmartBOX™
Multi-purpose Integrated SmartBOX™
The removable drawer design facilitates the cleaning of the SmartBOX™ making it easy for users to remove fallen debris simply by pulling out and sliding the drawer back in place after cleaning. Various set up choices, such as tipped bars/honeycomb table/platform, and easy transformation conveniently accommodates your work requirements.
Spirit GLS Hybrid
Work Area34 x 24 in. (860 x 610mm) Extendable to 38 x 24 in. (965 x 610 mm)
Max. Part Size
(L x W x H)
All Doors Closed39 x 25 x 7 in. (990 x 635 x 177 mm)
All Doors Open39 x ∞ x 7 in. (990 x ∞ x 177 mm)
Table Size40.3 x 27.7 in. (1025 x 705 mm)
Dimensions53.7 x 34.6 x 39.7 in. (1365 x 880 x 1010 mm)
Laser SourceCO₂: Standard 2.0" (Optional 1.5", 2.5" & 4.0")
Fiber: Standard 2.0" (Optional 4.0")
Dual (CO₂+Fiber): Standard 2.0" (Optional 3.0" &4.0")
CoolingAir-cooled, Operating environment temperature 15°-30°C (60°-86°F)
DriveClosed-loop DC Servo Control
Maximum Motor Speed80 IPS
Speed ControlAdjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
Power ControlAdjustable from 0~100% (Up to 16 color-linked power settings per job)
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254 mm or 0.1% of move, whichever is greater
Z-Axis MovementAutomatic
Focus LensStandard 2.0" (Optional 3.0" &4.0")
Resolution (DPI)Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Compatible Operating SystemsMS Windows
Display Panel4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
SafetyClass I Laser Product Compliant with EN60825
Class II Laser Product Compliant with CDRH
2006/42/EC Machinery Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Facility Requirements
Operation VoltageBelow 80Watt, 100-240VAC, 50/60HZ Auto Switching, max. 15A
80Watt and above, 200-240VAC, 50/60HZ Auto Switching, max. 15A
Fume Extraction SystemExternal exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/h) is required,2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port)

* Speed does not equal to throughput. See dealer or visit www.GCCworld.com for more details.
* The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
∆ Specifications are subject to change without prior notice.​
