Venus-II
Laser Engraving Machine

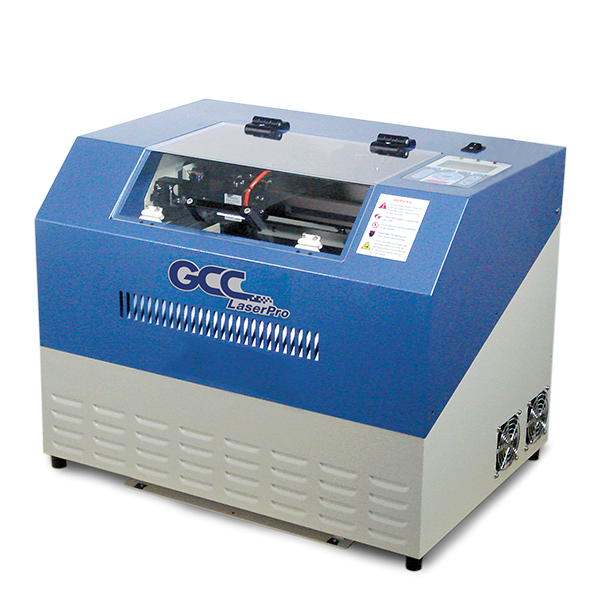

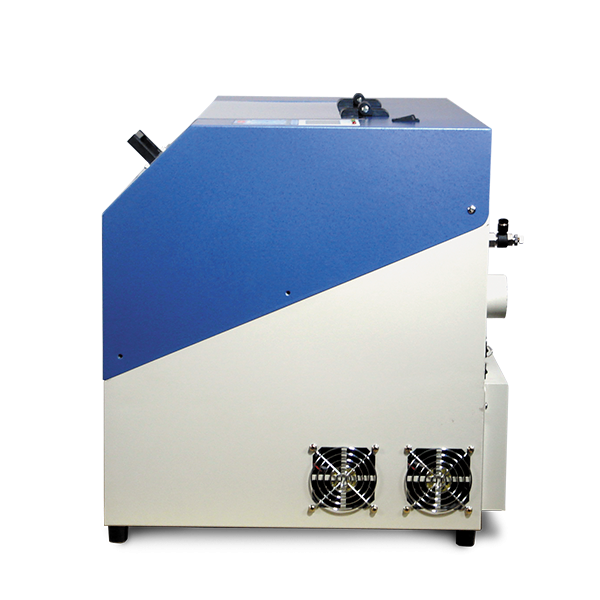

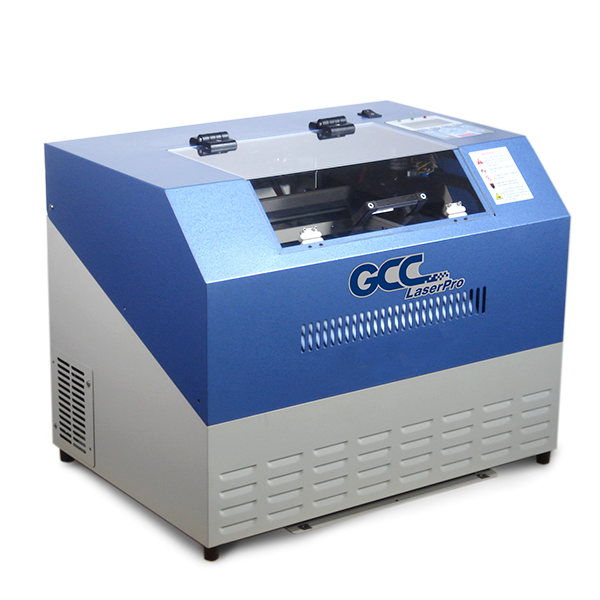

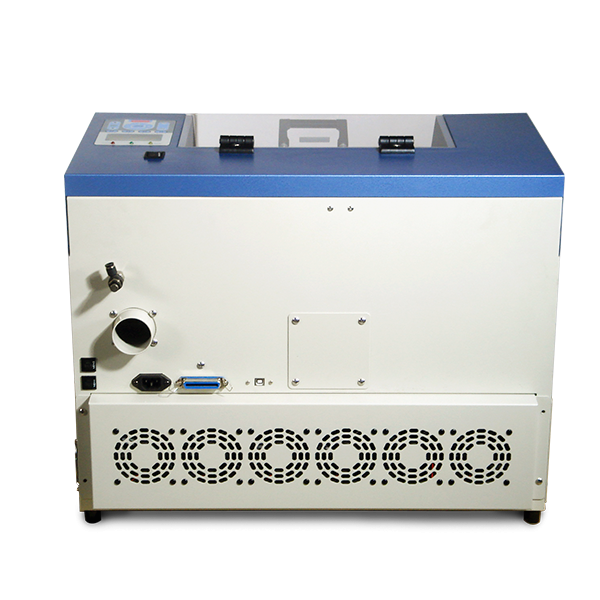

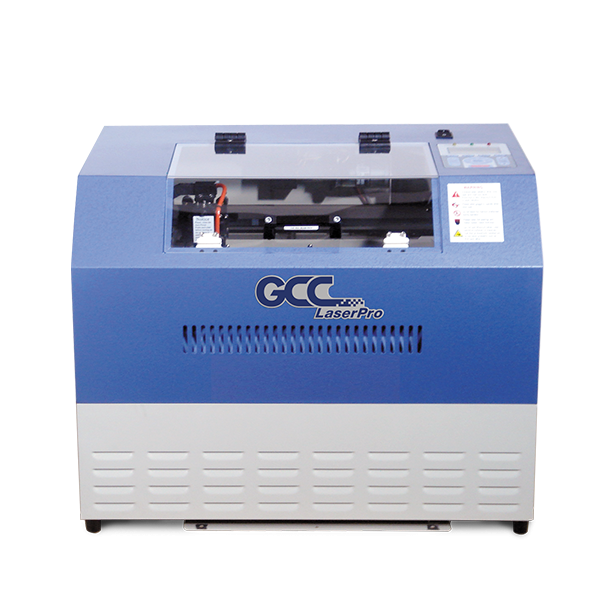

Venus II Desktop Laser Engraver
LaserPro Venus II is not only the most compact LaserPro laser engraver but also comes with easy-to-use interfaces.
Venus-II
Venus-II-5
Venus-II-3
Venus-II-2
Venus-II-4
1 1
Laser Engraving Machine
Venus II Desktop Laser Engraver
Use the Windows-based software to make fine pitch-based adjustments in engraving flat, convex or concave surfaces. Venus is also the perfect choice for stamp making.

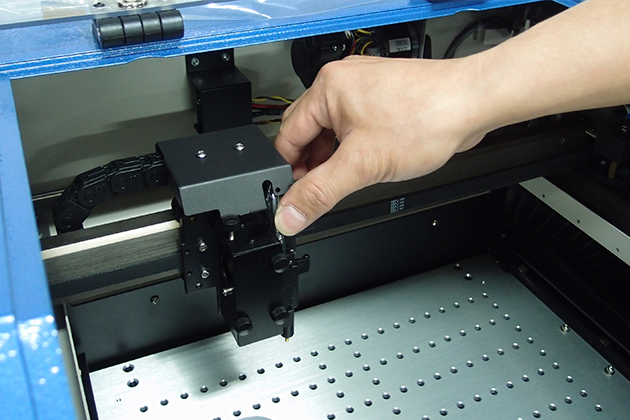

Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.

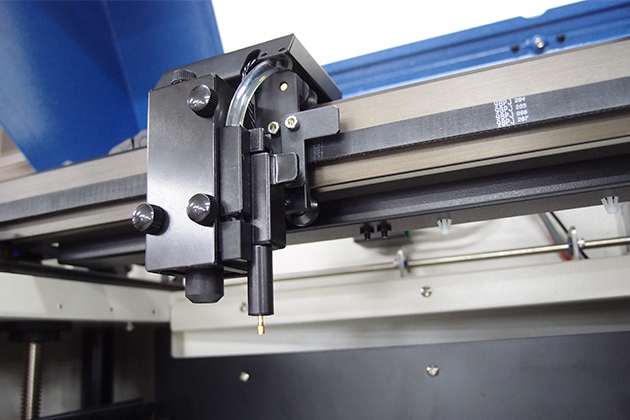

AutoFocus (Patented)
Patented Auto Foucus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Auto Focus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

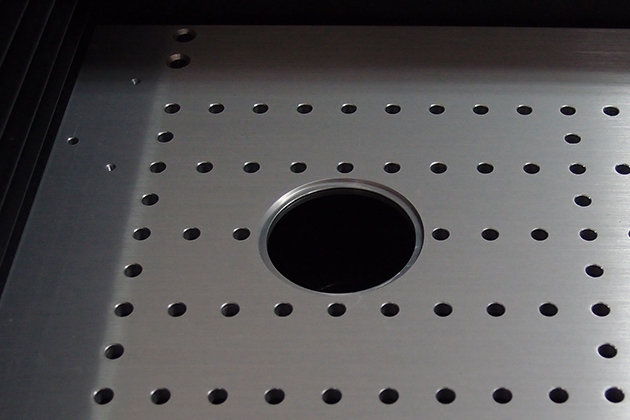

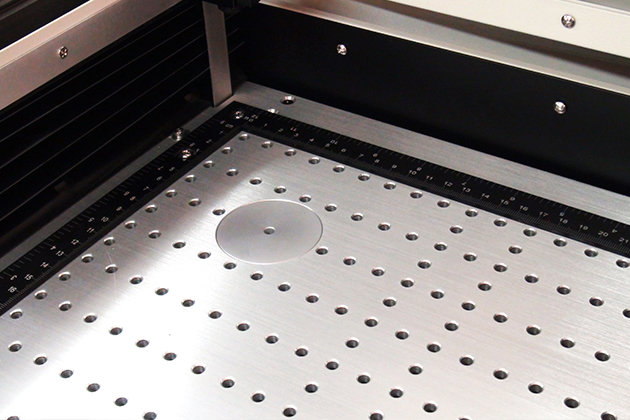

Unique Feature for Making Stamps
The 2" diameter hole is provided for stamps with a longer body. The size of this pit fits to your stamp sample perfectly. Just position the stamp stick into the hole. Longer stamps can be made with ease.

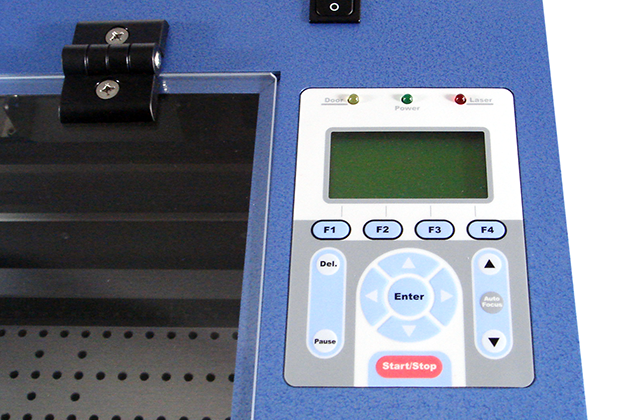

User-Friendly Interface
LaserPro windows based driver provides powerful function settings, such as engrave mode, programmable origin, various dithering types and more to meet users' specific needs.
Special Fire Retardant Material
The flexible right and left table shields are designed to coordinate the up down Z rail. These two shields isolate the airflow in the middle of the working table; thus, the possible damage caused by the heat is reduced.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

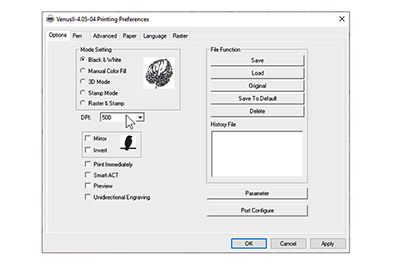

Windows-based Driver
Windows-based drivers offer plenty of functionality, including pitch tuning to adjust for a vertical profile for each character during stamp engraving.

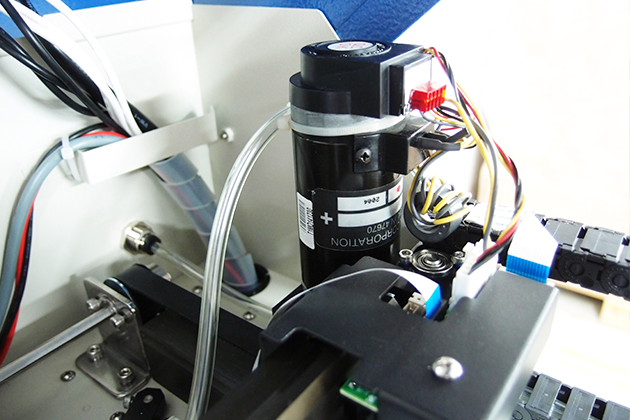

Precise Closed-loop DC Servo Motor
A high speed Closed-loop DC Servo motor shortens the overall engraving time, while maintaining excellent engraving quality.

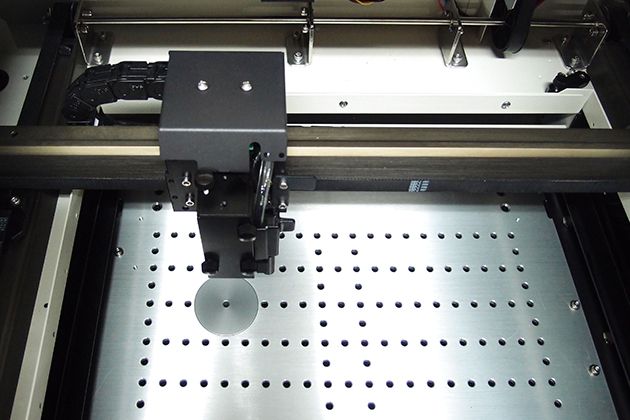

Unique Design Down Vacuum Table
A4 size working table and the unique dust collecting mechanism allows the full table rubber stamp to be engraved and debris to be gathered easily all at once.

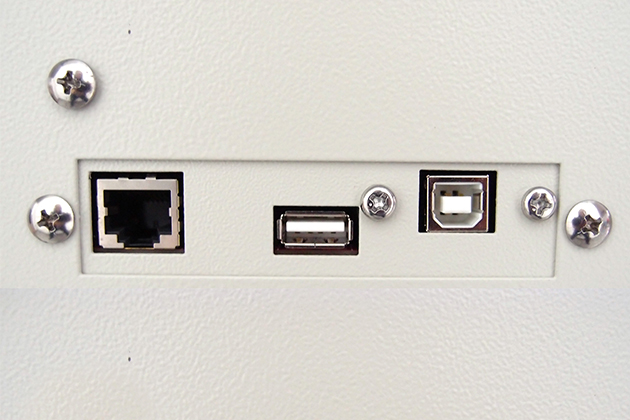

Built-In Networking Connection
Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility...MORE
Wi-Fi Router
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.
Purex Fume Extraction System
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca
Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartPRINT™
SmartPRINT™
The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users. Currently, this new optional solution is compatible with GCC Spirit Series, VenusII, C180II, MercuryIII, S290LS and MG380Hybrid laser engravers. And GCC X Series and T500 laser cutters. -- more laser models are expected to join the line in the near future.
. SmartPRINT™ will run in trial mode and will cut a horizontal lines through your
Entry-Level Fume Extraction System
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove the hazardous fumes and dusts during laser processing to protect the health of operators, eliminate environmental pollution and enhance the laser cutting.
Dust Prevention Window
Dust Prevention Window
When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.
Venus IIVII-12
Laser Source12W
Sealed CO2 Laser
CoolingAir-cooled, Operating environment temperature 15°-30°C (60°-86°F)
Work Area11.8 in. x8.3 in. (300 mm x 210 mm)
Max.Part Size (L x W x H)
14.2 in. x 11.8 in. x 2.8 in. (360 mm x 300 mm x 70 mm)
Dimensions24.4 in. x 17.1 in. x 18.1 in. (610 mm x 435 mm x 460 mm)
Weight32 Kg / 70 lb
DriveClosed-loop DC Servo Control
Maximum Speed*20 IPS
Speed ControlAdjustable from 0.1 to 100% (Up to 16 color-linked speed settings per job)
Power ControlAdjustable from 0-100% (Up to 16 color-linked power settings per job)
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254mm or 0.1% of move, whichever is greater
Z-Axis MovementAutomatic
Focus LensStandard 1.5", optional 2.0" available
Resolution (DPI)Available 200, 250, 300, 500, 600, 1000
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Compatible Operating SystemsMS Windows
Display Panel4-line LCD panel showing current file name, total working time,
laser power, engraving speed, file(s) loaded into memory buffer,
setup and diagnostic menus.
SafetyClass I Laser Product Compliant with EN60825
Class II Laser Product Compliant with CDRH
Standard Feature
Auto FocusV
Red Dot PointerV
Flexible Air TubeV
3D and Stamp ModeV
Reserved Stamp JigV
Facility Requirements
Operation Input100- 240VAC, 50-60Hz Auto Switching, Max. 7A
Fume Extraction SystemExternal exhaust system with minimum flow rate 215m3/h (CFM 125 ft3/h) is required,10kPA negative pressure (Purex GCC 400 @ 2" exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
