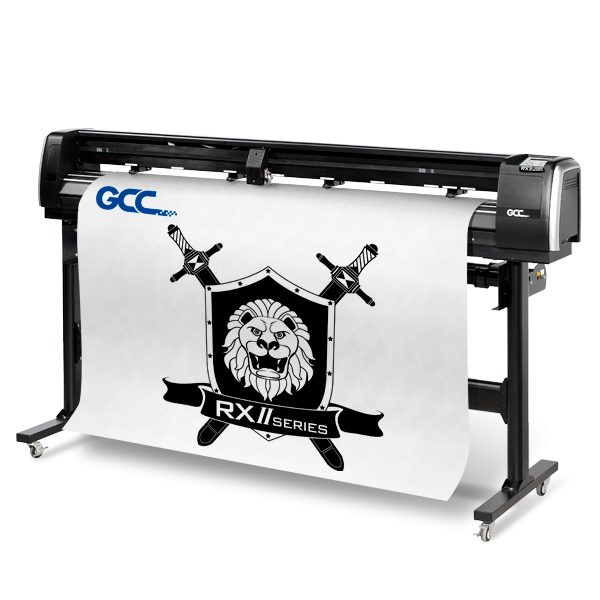

RX132
Cutting Plotter

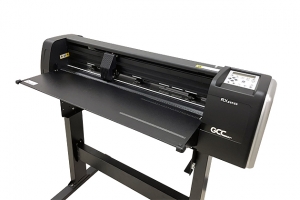

RX II / RX II (Creasing) Vinyl Cutter

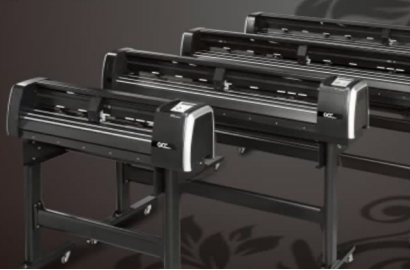

The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm. Designed With a stylish appearance and new functional features, the RX II series is the top notch cutter in the market for professional sign makers.
RX132

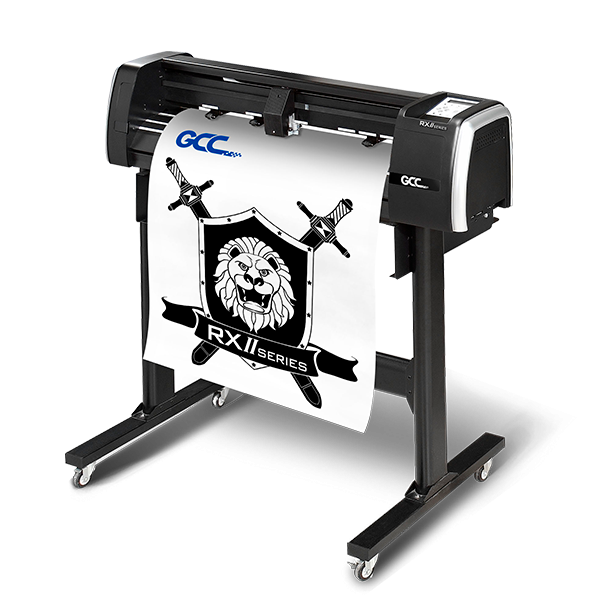

RXII-61
1 1
Cutting Plotter
RX II / RX II (Creasing) Vinyl Cutter
The brand new RX II series of cutting plotters is available in four sizes, 61cm, 101cm, 132cm, and 183cm. Designed With a stylish appearance and new functional features, the RX II series is the top notch cutter in the market for professional sign makers.
INQUIRY
Creasing Ability (only for creasing model)

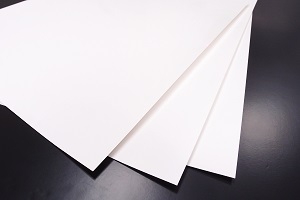

Equipped with the dual tool holders with creasing tool and blade, AFR offers cardstock creasing and cutting to make small volume of paper box. PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.

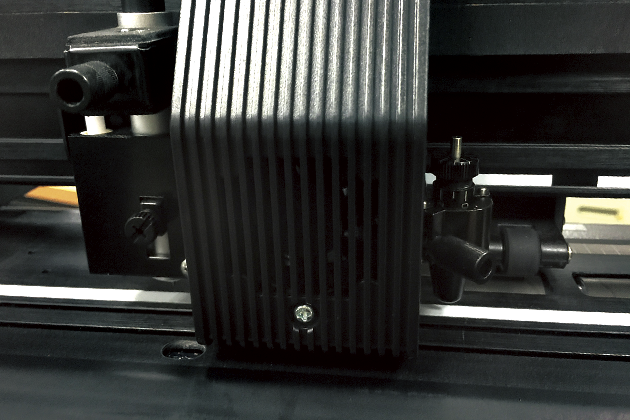

Dual Tool Holder (creasing model only)

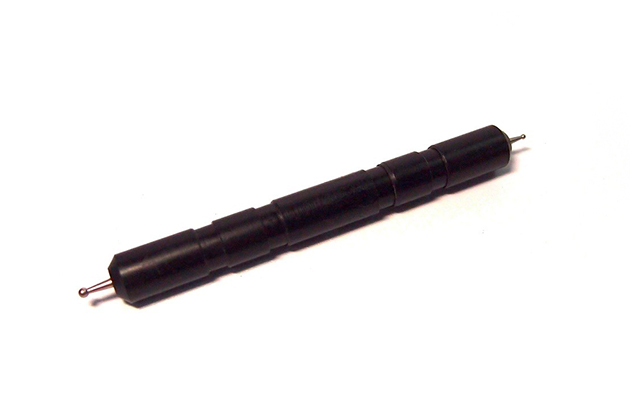

Equipped with special dual holder – blade holder and creasing tool holder - on the carriage, creasing lines and cut lines can be made at one time. It saves your valuable time.

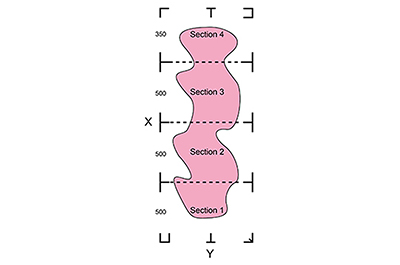

Section Cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC RX II series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

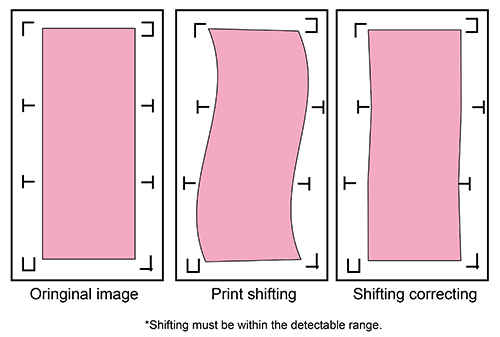

Segmental Positioning
RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

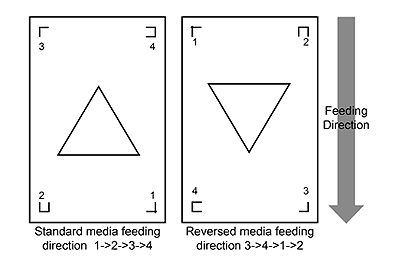

Auto Rotation
New registration marks defined to detect material feeding direction. RX II detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

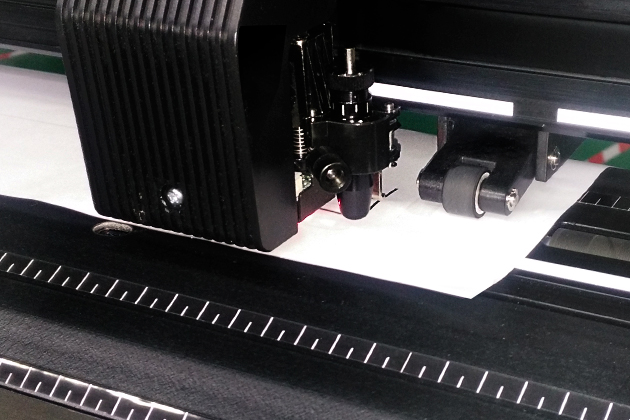

Enhanced AAS II Contour Cutting System
The RX II series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Functions include:
 1st-mark auto-detection 4-point positioning
 Segmental positioning   Multiple copies

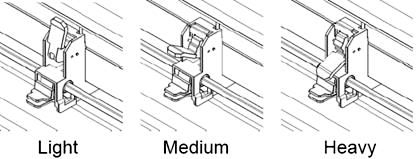

Multiple Pressure Pinch Rollers for Different Media
RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
MaterialsLeft sideMiddleRight side
Sandblast mask, Reflective filmHeavyMediumHeavy
VinylMediumMediumMedium
Window tinting filmMediumLightMedium
Triple Port Connectivity

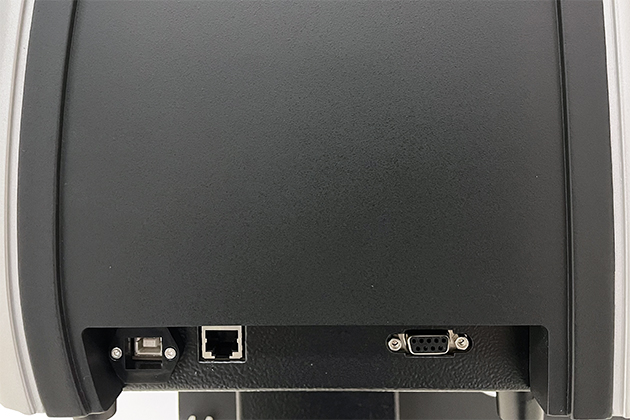

RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Segmental Positioning
RX II series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Auto Cut Off
This features allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically.
Efficient Throughput
At up to 60 inches per second of cutting speed, RX II series cutting throughput simply outperforms the competition.

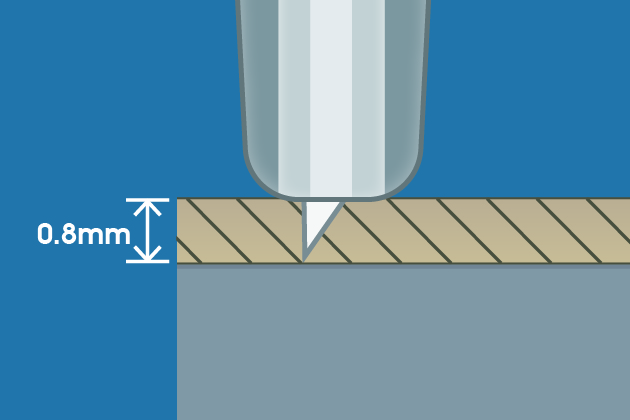

600 Grams of Cutting Force
Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.
Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.
Media Support System

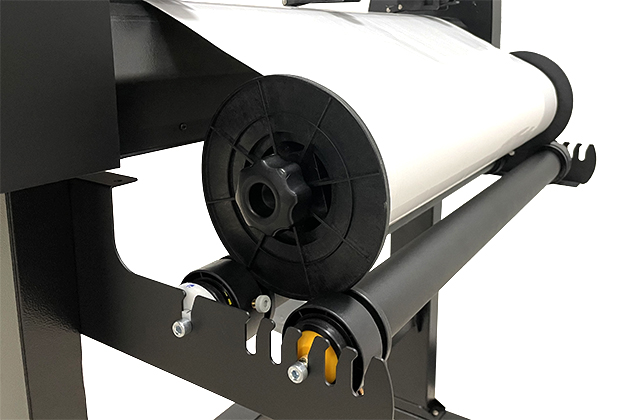

The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

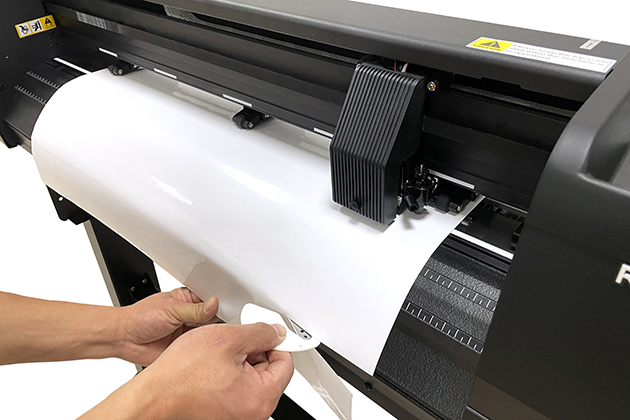

Handy Grooved Cut Off Tool
This handy and innovative design allows you to cut off a finished job in a straight line easily, reducing the possibility of wasting usable material.

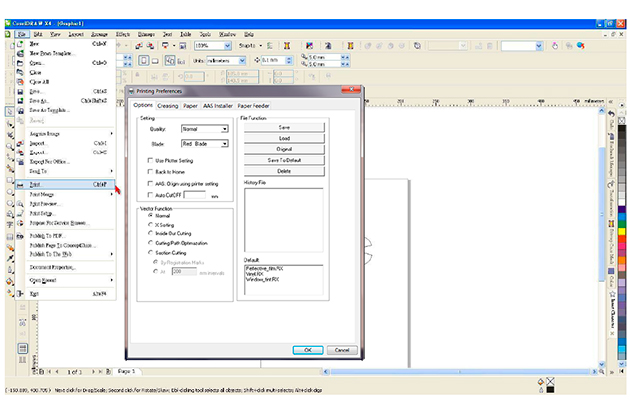

Advanced One Click Driver
RX II series includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the RX II series cutters. The One Click Driver simplifies the driver installation process. You just double click on the driver installation icon and the program will take care of the rest.

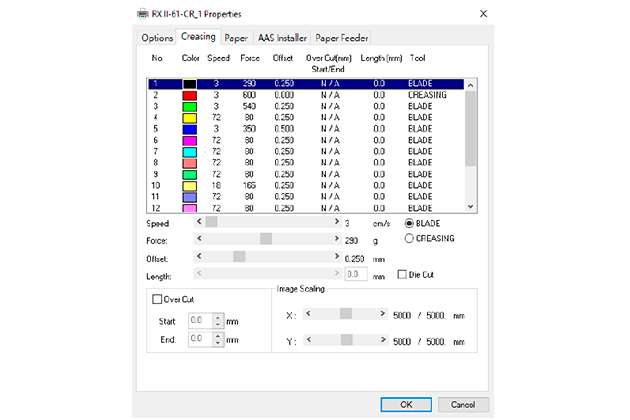

Multiple Parameters Setting by 16 Different Colors
The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.

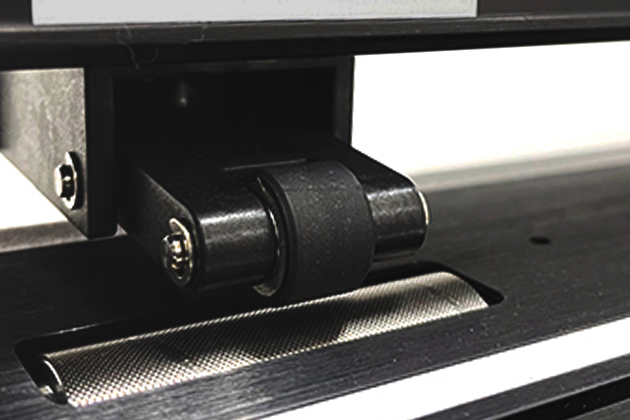

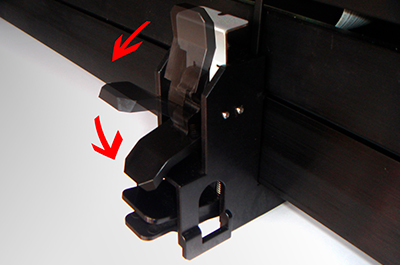

Selective Pinch Roller Positioning

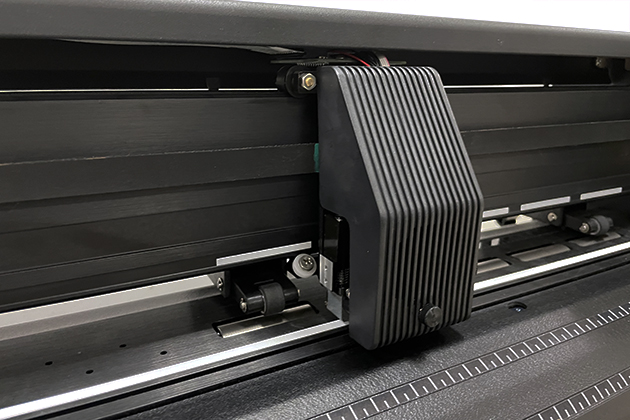

Each pinch roller can be positioned and operated individually, widening the RX II series cutting plotters’ range of applications.

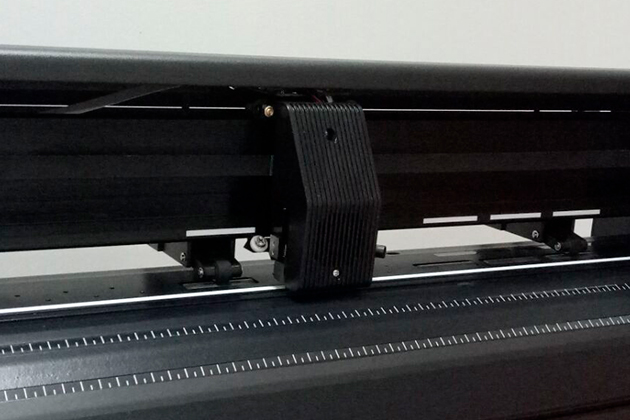

Guaranteed 10m Tracking Ability
The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.
Add-on Flat Table (only for 61 model)
Add-on Flat Table (only for 61 model)
For cutting thick sheet material, such as magnet.
18" x 24" Low Adhesive Film (3 pcs/pk)
18" x 24" Low Adhesive Film (3 pcs/pk)
Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.

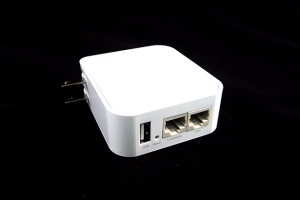

Wi-Fi Router
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.

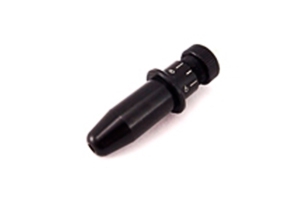

Metallic Blade Holder Φ2.5mm
Metallic Blade Holder Φ2.5mm
Adjusting the blade length to fit your needs.

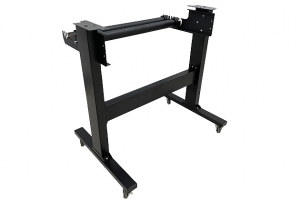

Stand
Stand
To support cutting plotter machine and roll media.
Media Basket
Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Safe Blade
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
Cutting Pad
It prevents the blades from becoming blunt quickly.
Model NumberRX II-61
(Creasing)		RX II-61RX II-101SRX II-132SRX II-183S
Operational MethodRoller-Type
Max. Cutting Width536mm(21”)610mm(24”)1010mm(40”)1320mm(52”)1830mm(72”)
Max. Cutting Length50m (164ft)
Max. Media Loading Width642mm(25.28”)810mm(31.88”)1326mm(52.2”)1635mm(64.37”)2145mm(84.44”)
Min. Media Loading Width50mm (1.97in)
Number of Pinch Rollers345
Acceptable Material Thickness0.8mm (0.03in)
Drive MotorDC Servo Control
Max. Cutting Force 600 g
Max. Cutting Speed1530 mm/sec (60 ips) (at 45° direction)
Acceleration4.2 G (gravity)
Offset0~1.0 mm (with an increase of 0.025mm)
Memory Buffer32 MB /16 MB (when using AAS)
InterfacesUSB 2.0 (Full Speed), Serial (RS-232) and Ethernet
Type of CommandHP-GL, HP-GL/2
Mechanical Resolution0.006 mm
Software Resolution0.025 mm
Distance Accuracy±0.254 mm or ±0.1% of move, whichever is greater
Repeatability±0.1mm
Automatic-Aligning SystemCompletely Automatic Contour Cutting System for print to cut solution
Auto RotationYes
Section CuttingYes
Curve & Arc SmoothingYes
Configurable OriginYes
Test Cut CapabilityYes
Tangential ModeYes
Over CutYes
RepeatYes
CopyYes

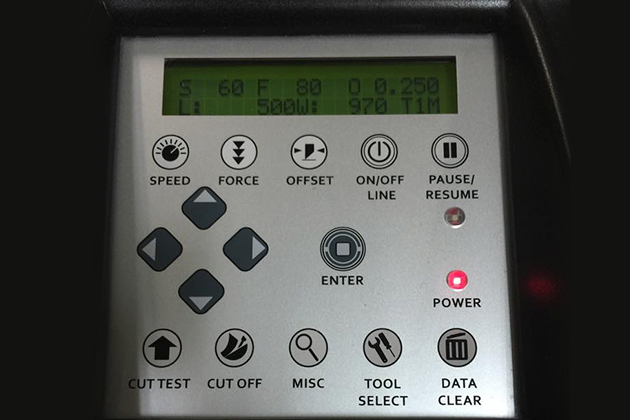

Control PanelLCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
Diameter of Blade2.5 mm
Power Supply100 ~ 240VAC 50/60Hz (auto switching)
Power Consumption251.8 watts
Dimension (HxWxD) mm437 * 1098 * 4791147 * 1614 * 651 1147 * 1923 * 651 1147 * 2433 * 756
(HxWxD) in17.2 * 43.2 * 18.845.2 * 63.5 * 23.845.2 * 75.7 * 23.845.2 * 95.8 * 29.8
Net Weight25.5kg
(56.22 lb)		25kg
(55.12 lb)		61.8kg
(136.2 lb)		71.5kg
(157.6 lb)		82kg
(180.8 lb)
Auto Cut OffStandard
Max. Cut Off Width642mm696mm1107mm1417mm1927mm
StandOptionalStandard
Media BasketOptional
Operation EnvironmentTemperature15°C~30°C / 60°F~86°F
Humidity25% ~ 75%
  • Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
  • The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
  • GCC reserves the right to change the specifications at any time without notice.
  • GCC certified material in tracking is Avery MPI 3000.
  • The above listed specification values are effective only when operated with media certified by GCC.
  • Please note that the machine manufactured before 09/26/2017 with 2 mm diameter of blade.
