The total solution GCC provides- Rhinestone Transfer System including StoneCut software from DAS and a professional cutting plotter from GCC helps you to swiftly create Rhinestone templates. In this video, you will learn the shortcut to transform your images into fun and inviting objects with your own twist. You will also be demonstrated the creation process of versatile heat transfer applications and high value-added customized objects.

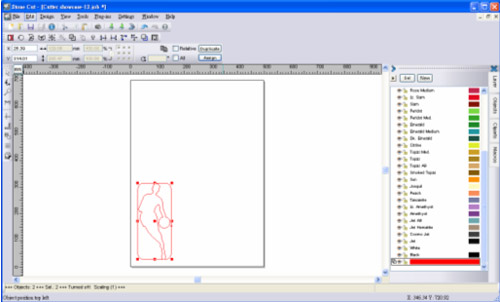

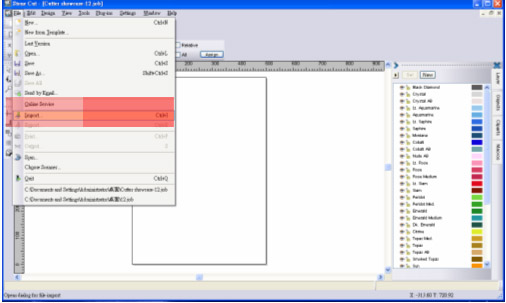

Open StoneCut and go to File and import your object. (It is advised that the image is edited in graphic design software before being input into StoneCut for template creation).

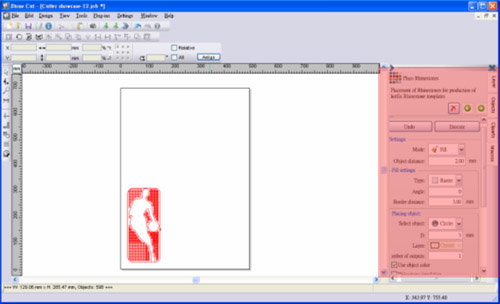

Set rhinestone parameters in Place Rhinestones under Macros (you can feel free to optimize rhinestone parameters according to the shape of the image or the dimension of rhinestones).

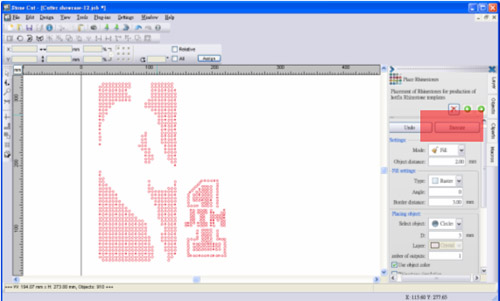

Select Execute when parameter setting is complete.

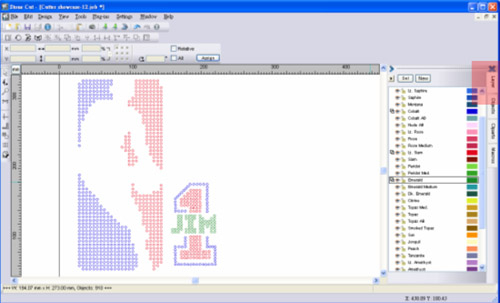

Set or change the colors of your rhinestones in Layer.

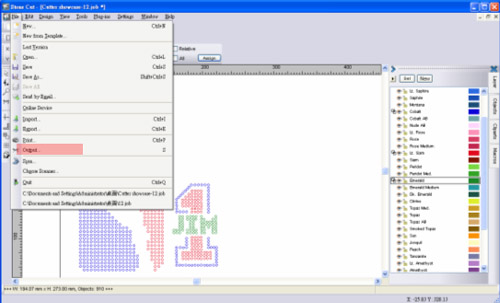

Go to File and select OK under Output after loading Stone Stencil.

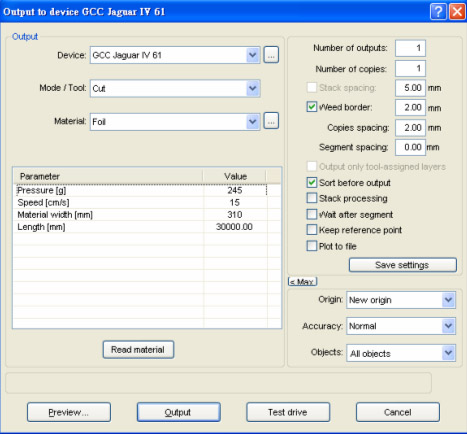

Set cutting parameters before outputting the object to GCC Cutting Plotter (it is suggested that GCC RX, Jaguar IV or Puma III series are used for this application).

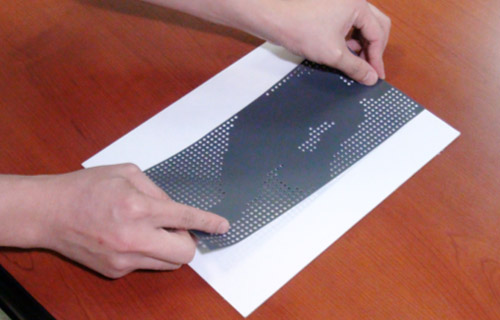

Attach the cut Stone Stencil on a piece of white board and weed the material.

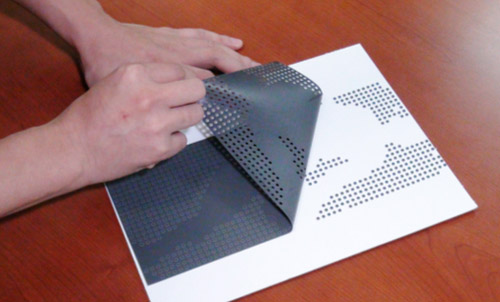

Attach the weeded material on the other side of the white board.

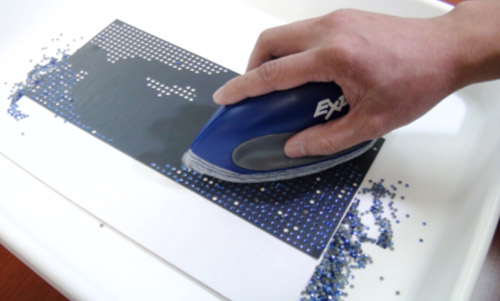

Fill the holes in the template with different colors of rhinestones and apply the brush to complete.

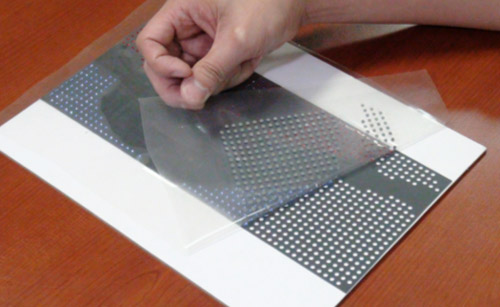

Apply a piece of transfer film to acquire a full rhinestone pattern.

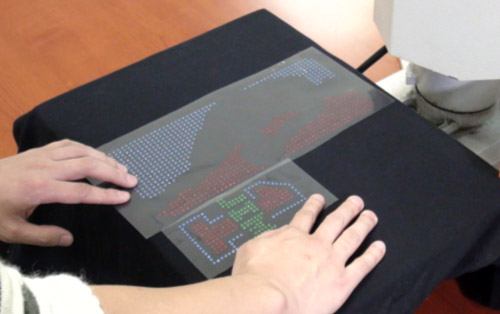

Place a garment on the heat press machine and the transfer film on it then heat press the transfer film for 12 seconds at 150 degrees.

StoneCut can also make Chinese character application happen!

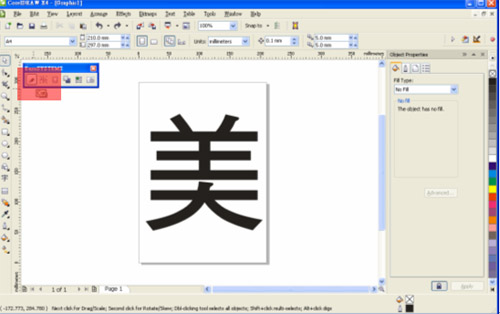

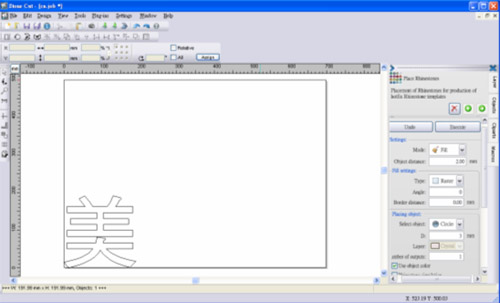

Open CorelDraw and input a Chinese character then select the "Cut" tool in the EuroSYSTEMS window to automatically start Stone Cut and import the character.

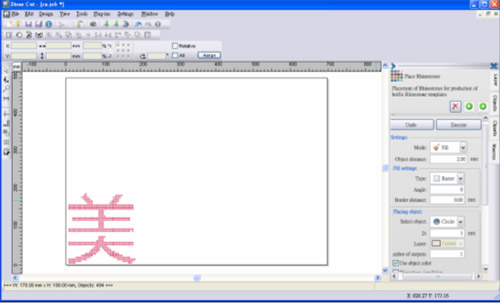

Set rhinestone parameters in Place Rhinestones under Macros (again, feel free to optimize rhinestone parameters according to the shape of the image or the dimension of rhinestones).

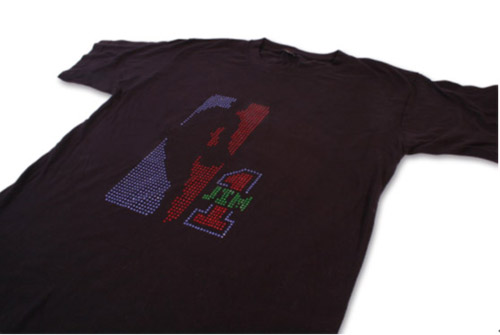

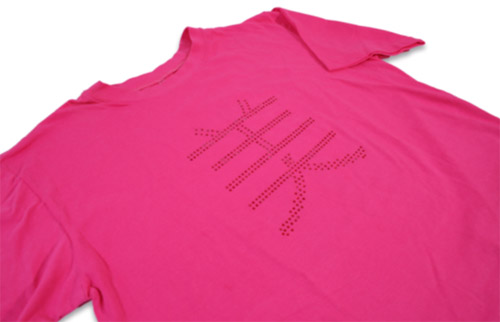

Completed application sample.
