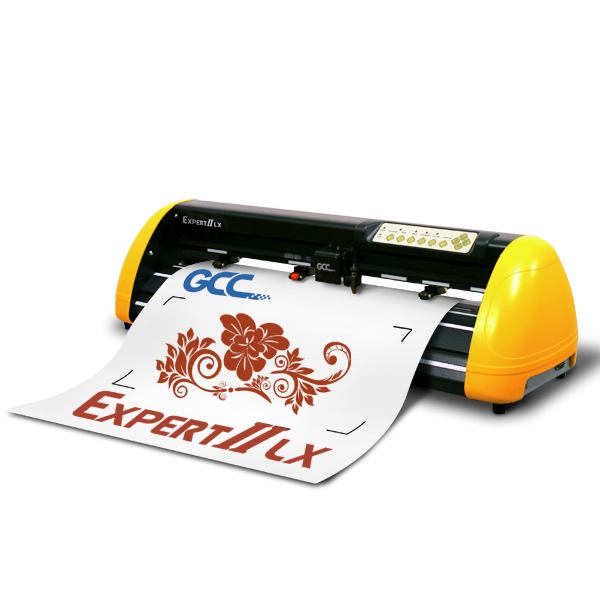

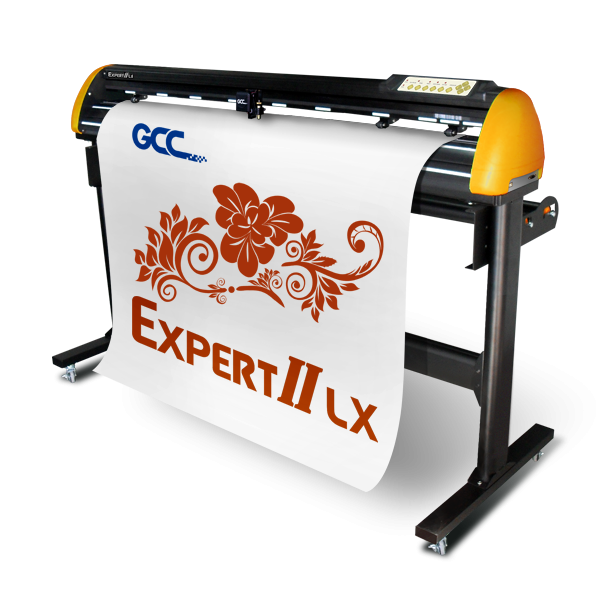

Expert II Vinyl Cutter

Expert II Series is the best choice for beginners and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value. Expert II produces eye-catching graphics with up to 27.8 ips (25 ips for EX-52 models ) cutting speed,

1 1

Cutting Plotter

Expert II Vinyl Cutter

INQUIRY

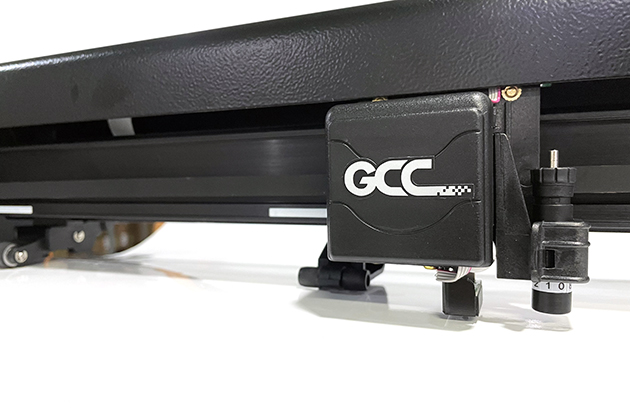

Enhanced AAS II Contour Cutting System (Available on EX II LX Model)

GCC Expert II LX model features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:

1st-mark auto-detection	4-point positioning
Segmental positioning	Multiple copies

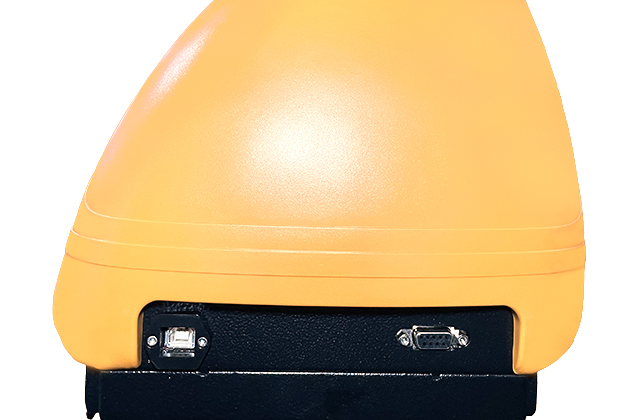

Dual-port Connectivity

GCC Expert II Series supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC Expert II Series. Dual-port connectivity provides sign makers with great flexibility for data transmission.

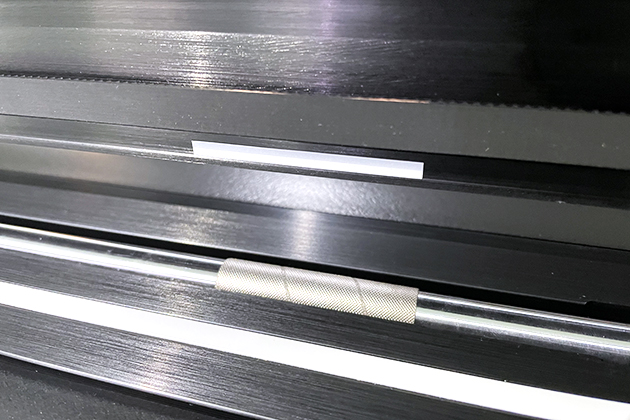

Guaranteed 3 Meter Tracking

GCC Expert II Series is built from the finest parts that come with every GCC cutter. It comes with stable drums that can guarantee 3 meter tracking to ensure quality outputs and save you materials and costs.

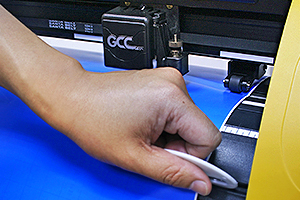

Handy Grooved Cut-off Tool

This handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material.

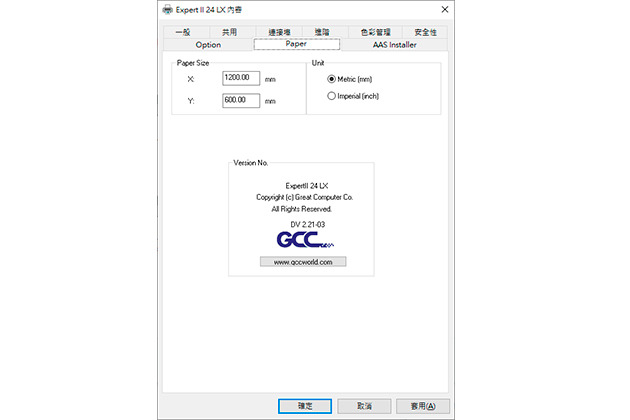

Windows Drivers

Expert II Series includes a "one click" Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Expert II Series, making it simple and easy to make signs with Expert52 LX.

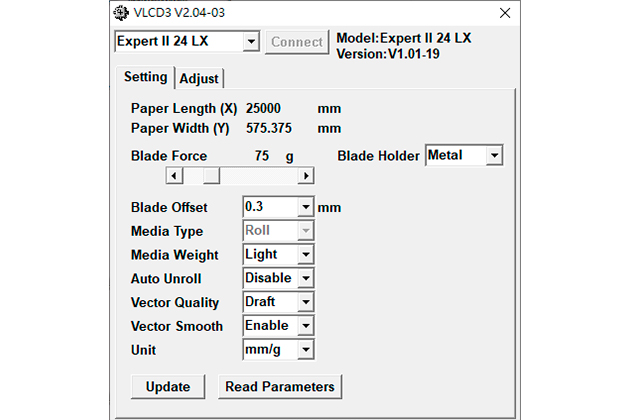

User-friendly Interface

The control panel of Expert II Series is very user-friendly; it comes with the special VLCD software, providing a simple and intuitive workflow for users of all levels.

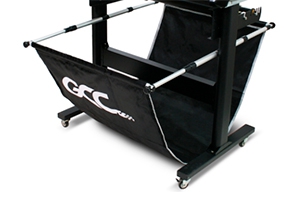

Media Basket

To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

Safe Blade

Users can cut off the finished job by the safe blade.

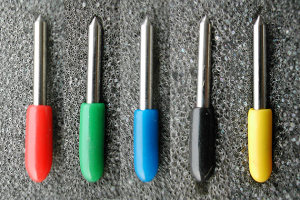

Cutting Blades

Users can replace the cutting blade by different materials to meet your need.

Cutting Pad

It prevents the blades from becoming blunt quickly.

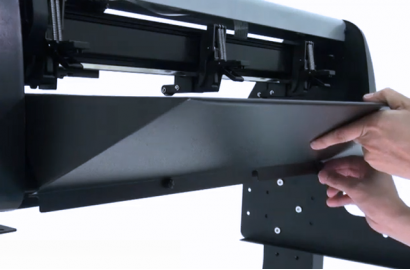

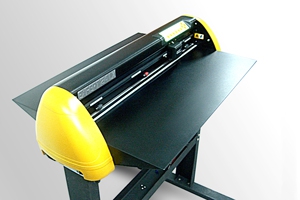

Add-on Flat Table (only for 24 model)

For cutting thick sheet material, such as magnet.

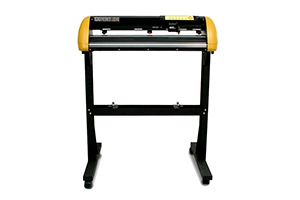

EX II Series Stand

Plastic Blade HolderΦ2.5mm

Adjusting the blade length to fit your needs.

Expert II Series		EX II-24	EX II-24LX	EX II-52	EX II-52LX
Max. Cutting Width		600 mm (23.6 in.)		1320 mm (51.96 in)
Max. Media Width		719 mm (28.3 in.)		1470 mm (57.87 in.)
Acceptable Material Thickness		0.8 mm
Max. Cutting Force		350 g
Max. Cutting Speed		705 mm/sec (27.8 ips) (at 45 degree direction)		635 mm/sec (25 ips) (at 45 degree direction)
Mechanical Resolution		0.012 mm (0.00047 in.)
Software Resolution		0.025 mm (0.00098 in.)
Distance Accuracy		±0.254 mm or ±0.1% of move, whichever is greater
Repeatability		±0.1
Tracking		3M
Memory Buffer		1 MB / 500KB(when using AAS)
Type of Command		HPGL, HPGL/2
Configurable Origin		Yes
Repeat		Yes
Copy		Yes
Control Panel		6 LEDs / 10 Keys
Diameter of Blade		2.5 mm
Dimension (HxWxD) mm		233880255		10651632620
Dimension (HxWxD) in		9.134.610		41.9362.2524.41
Net Weight		11KG (24.3lb)		41KG (90.2lb)
Stand		Optional		Standard
Automatic-Aligning System (AAS II)		Available on Expert II LX models
Power Supply		100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption		Max. 288 W
Operation Environment	Temperature	15° C~30° C / 60°F~86° F
Operation Environment	Tangential mode	25% ~ 75%
Humidity		25% ~ 75%
Over Cut		Yes
Repeat		Yes
Copy		Yes
Control Panel		LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
Diameter of Blade		2.5 mm
Power Supply		100 ~ 240VAC 50/60Hz (auto switching)
Power Consumption		251.8 watts
Dimension (HxWxD) mm		437 * 1098 * 479		1147 * 1614 * 651	1147 * 1923 * 651
(HxWxD) in		17.2 * 43.2 * 18.8		45.2 * 63.5 * 23.8	45.2 * 75.7 * 23.8
Net Weight		25.5kg (56.22 lb)	25kg (55.12 lb)	61.8kg (136.2 lb)	71.5kg (157.6 lb)
Auto Cut Off		Standard
Max. Cut Off Width		642mm	696mm	1107mm	1417mm
Stand		Optional		Standard
Media Basket		Optional
Operation Environment	Temperature	15°C~30°C / 60°F~86°F
Operation Environment	Humidity	25% ~ 75%
Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.) The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly. GCC reserves the right to change the specifications at any time without notice. GCC certified material in tracking is Avery MPI 3000. The above listed specification values are effective only when operated with media certified by GCC.

GreatCut

Professional cut plug-in for Corel DRAW, Illustrator, Freehand, AutoCAD
Cutting by color
Registration marks with “Print & Cut” Support
Plot Manager
Free bundle with vinyl cutters (for i-Craft™ is an optional item)
Creasing function function is not supported. This function only work when used with GCC driver.

FlexiSign 19

QR Code
Barcode
Combine function
Bitmap Edit
More powerful than SignPal
Creasing function and Multiple pen function are not supported. These functions only work when used with GCC driver.

SignPal 19

Achieve to Cloud
Cut Order
Optimize Cutting Order
Autotrace
Text Tool

Sure Cuts A Lot

Multi-languages interface
iOS tablet app Sure Cuts A Lot 3 available (i-Craft™ output only)
Available for Windows & Macintosh OSX
Import various file formats, including SVG & PDF
Works with your installed TrueType & OpenType fonts, as well as thousands of free fonts available on the Internet.
Support to multiple pen function (Cut by color).
Creasing Ability (Creasing Model Only)
