JaguarV
Cutting Plotter

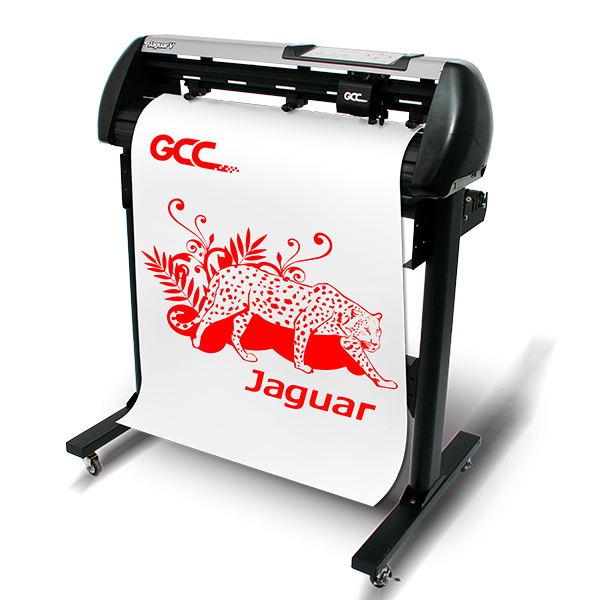

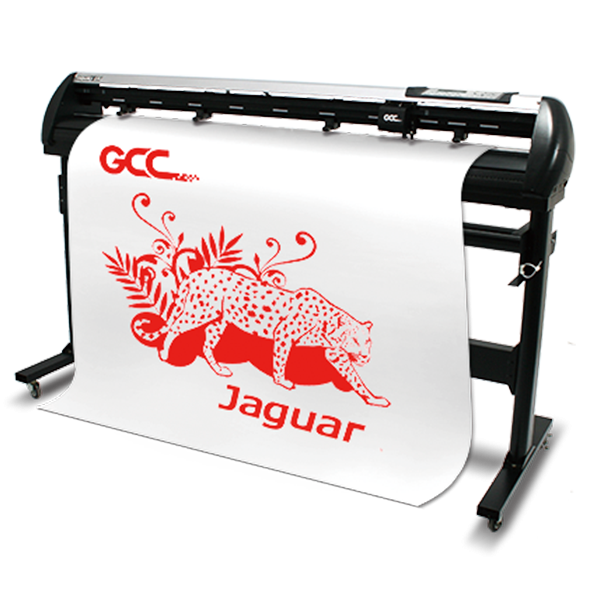

Jaguar V / Jaguar V (PPF) Vinyl Cutter
The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101, J5-160 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX, J5-160LX and J5-183LX) .
JaguarV
JaguarV-132
1 1
Cutting Plotter
Jaguar V / Jaguar V (PPF) Vinyl Cutter
With intuitive features to meet the demands of today's professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.
INQUIRY

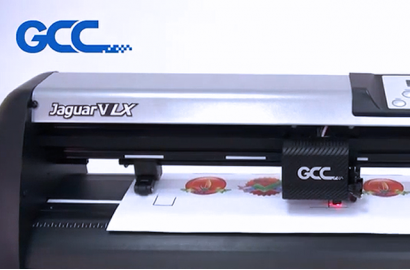

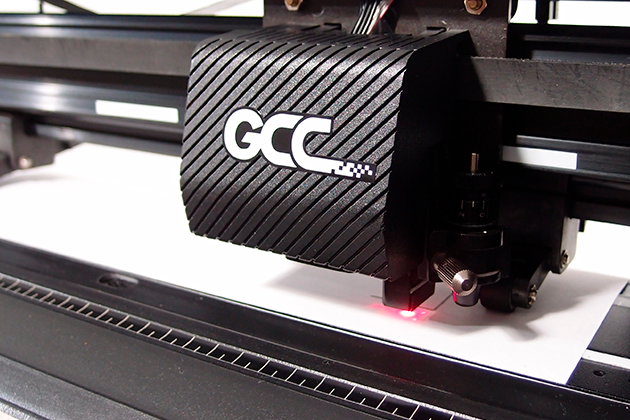

Enhanced AAS II Contour Cutting System
The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:
 1st-mark auto-detection 4-point positioning
 Segmental positioning   Multiple copies

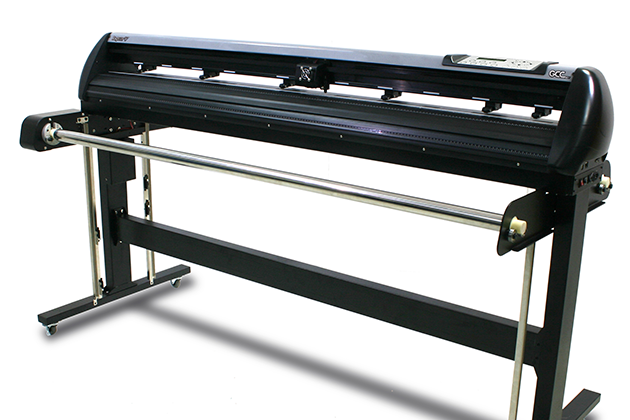

Media Take-up System (Only for PPF Model)
GCC develops the Jaguar V PPF machine equipped with the professional Media Take-up System for roll-to-roll cutting that makes paint protection film (PPF) cutting much more efficiently and cost lower than manual cutting.
Section Cutting
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
Segmental Positioning
Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Auto Rotation
New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

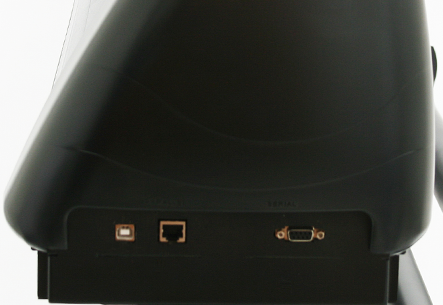

Triple Port Connectivity
Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
Efficient Throughput
At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.

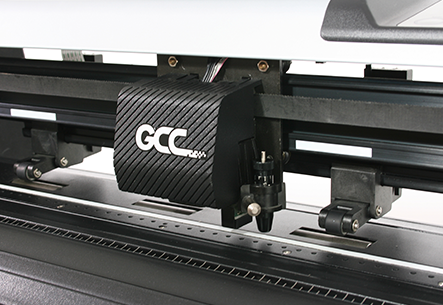

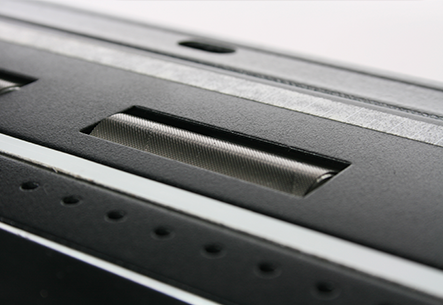

Guaranteed 10m Tracking Ability
The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.

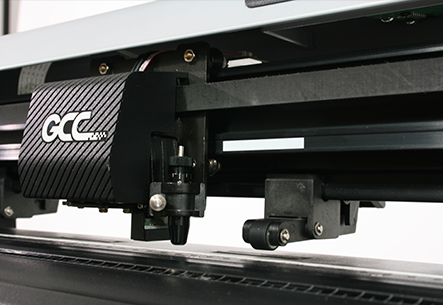

Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

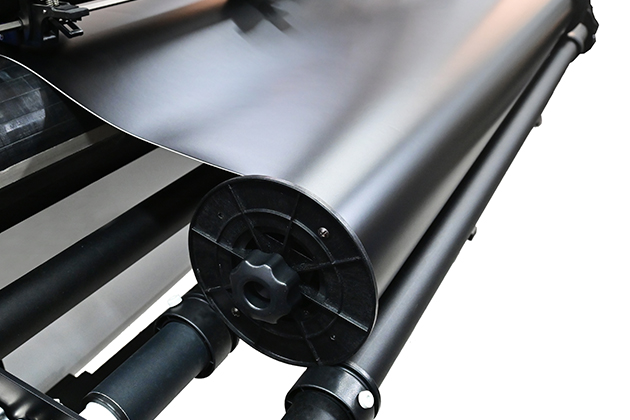

Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

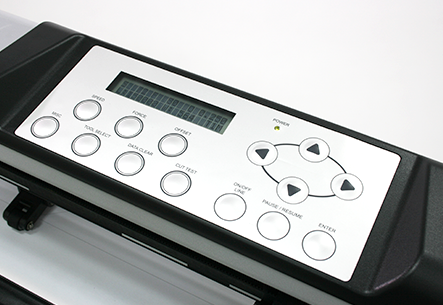

User-Friendly Control Panel
The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.
Selective Pinch Roller Positioning
Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.
GCC One-Click Windows Driver
GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
18" x 24" Low Adhesive Film (3 pcs/pk)
18" x 24" Low Adhesive Film (3 pcs/pk)
Put materials on the Low Adhesive Film to cut, and it’s recommended to work with Add-on Flat Table.
Wi-Fi Router
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.
Metallic Blade Holder Φ2.5mm
Metallic Blade Holder Φ2.5mm
Adjusting the blade length to fit your needs.
Stand
Stand
To support cutting plotter machine and roll media.
Media Basket
Media Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Safe Blade
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
Cutting Pad
It prevents the blades from becoming blunt quickly.

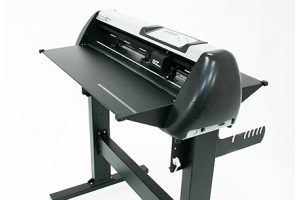

Add-on Flat Table (only for 61 model)
Add-on Flat Table (only for 61 model)
For cutting thick sheet material, such as magnet.
Jaguar V SeriesJ5-61J5-101J5-132J5-160 J5-160-P
J5-61LXJ5-101LXJ5-132LXJ5-160LXJ5-183LX
Operational MethodRoller-Type
Max. Cutting Width610 mm (24”)1016mm (40”)1320mm (52”)1600 mm (63”)1830mm (72”)1600 mm (63”)
Max. Media Loading Width770mm (30.3")1270mm (50")1594mm (62.7")1782mm (70.2")1990mm(78.3")1782mm (70.2")
Min. Media Loading Width50 mm (1.97”)
Number of Pinch Rollers346
Acceptable Material Thickness0.8 mm (0.03”)
DriverDC Servo Control
Max. Cutting Force 600g
Max. Cutting Speed1530 mm/sec (60 ips) (at 45° direction)
Acceleration4.2 G (gravity)
Offset0~1.0 mm (with an increase of 0.025mm)
Memory Buffer32 MB /16 MB (when using AAS)
InterfacesUSB 2.0 (Full Speed) and Serial (RS-232), and Ethernet
Type of CommandHP-GL, HP-GL/2
Mechanical Resolution0.006 mm
Software Resolution0.025 mm
Distance Accuracy±0.254 mm or ±0.1% of move, whichever is greater
Repeatability±0.1 mm
Automatic-Aligning SystemAvailable on Jaguar V LX models, including Segmental Positioning and Auto Rotation functionsN/A
Auto RotationAvailable on Jaguar V LX models
Section CuttingYes
Curve & Arc SmoothingYes
Configurable OriginYes
Test Cut CapabilityYes
Tangential ModeYes
Over CutYes
RepeatYes
CopyYes
Control PanelLCD (20 digits x 2 lines), 14 Keys, 1 Power LED
Diameter of Blade2.5 mm
StandOptionalStandard
Media BasketOptionalN/A
Power Supply100~240 VAC 50 / 60 Hz (auto switching)
Power ConsumptionMax. 110 watts
Dimension(H x W x D) mm412 * 950 * 4861096 * 1450 * 6511111 * 1774 * 6511127 * 1962 * 7561127 * 2170 * 7561127 * 1962 * 756
(HxWxD) in16.2 * 37.4 * 19.143.1 * 57 * 25.643.7 * 69.8 * 25.644.4 * 77.2 * 29.844.4 * 85.4 * 29.844.4 * 77.2 * 29.8
Net Weight18 kg/ 39.6 lb41.5 kg/ 91.4 lb50 kg/ 110.2 lb63 kg/ 138.6 lb77.5 kg/ 170.86 lb63 kg/ 138.6 lb
Operation EnvironmentTemperature15° C~30° C / 60°F~86° F
Humidity25% ~ 75%
  • Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
  • J5-160-P does not contain GreatCut and vehicle template software.
  • The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
  • GCC reserves the right to change the specifications at any time without notice.
  • GCC certified material in tracking is Avery MPI 3000.
  • The above listed specification values are effective only when operated with media certified by GCC.
