Laser Engraving Machine

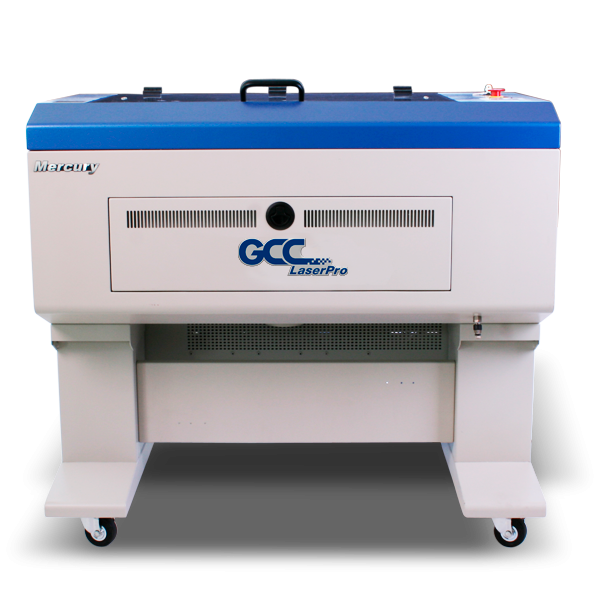

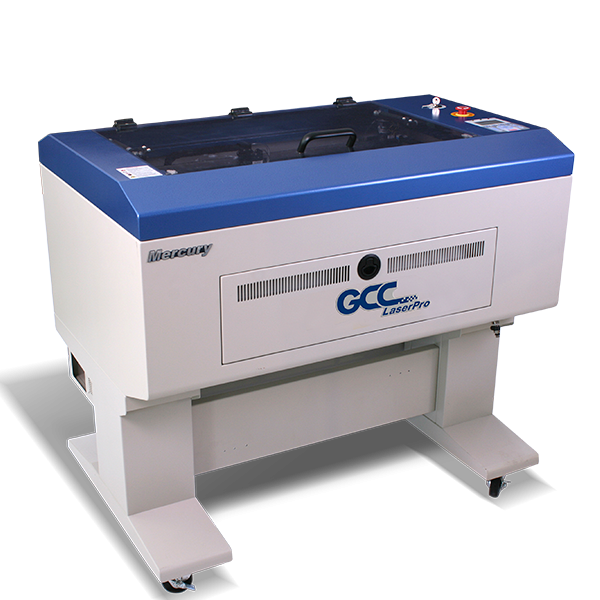

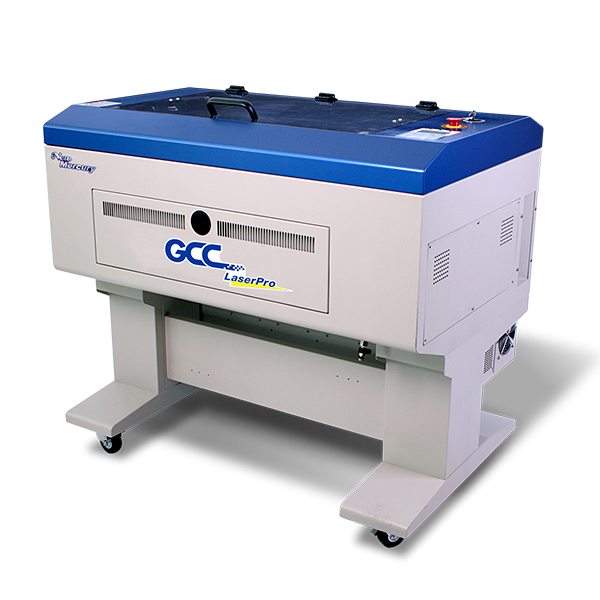

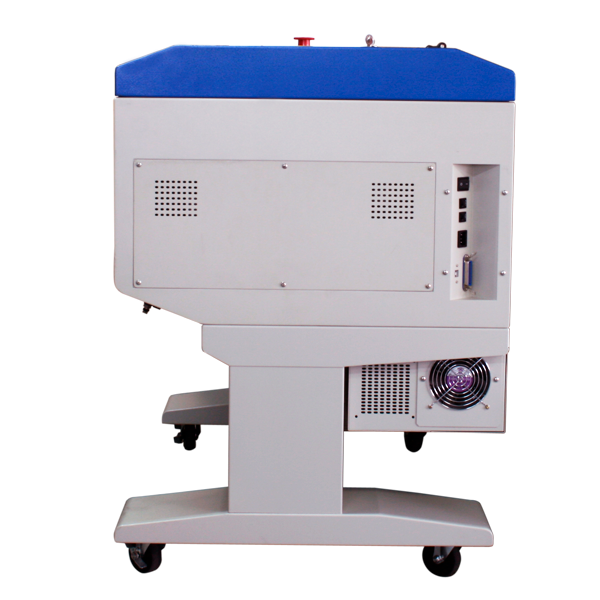

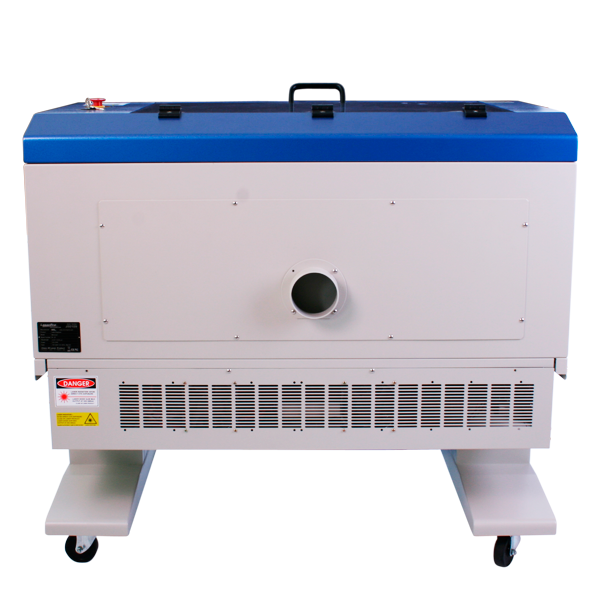

Mercury III Laser Engraver
LaserPro Mercury III carries the fine tradition of the Mercury series to provide stable engraving quality. The servo motor enables fast movement of lens carriage while maintaining accuracy over time, giving you reliable and dependable results.
mercury_III-5
mercury_III-1
mercury_III-2
mercury_III-3
mercury_III-4
1 1
Laser Engraving Machine
Mercury III Laser Engraver
Mercury III is reinforced with new features, including key switch, user-friendly control panel, and SmartCENTER.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

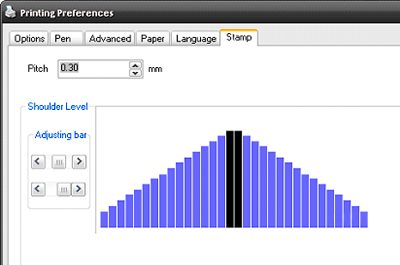

Flexible 3D and Stamp Engraving
Advanced print driver with over 200 level gray scales to presents you fabulous 3D engraving output. And through the intelligent stamp engraving mode you can create a fantastic logo stamp.

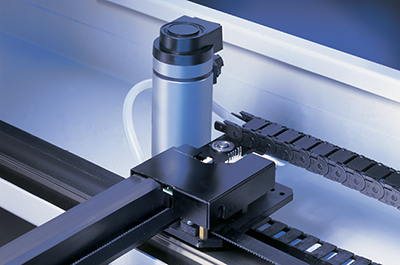

Closed-loop DC Servo Motor
A Closed-loop DC servo motor can deliver greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy due to the continuous movement, instead of constant stopping and starting.

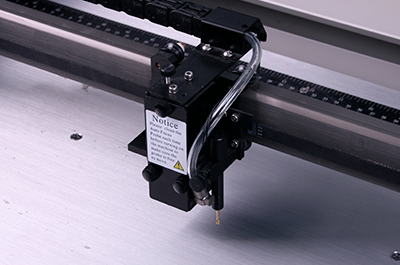

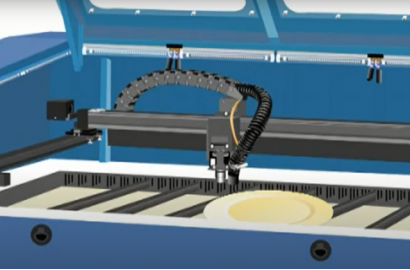

AutoFocus (Patented)
Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

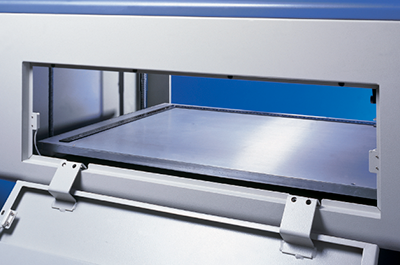

Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

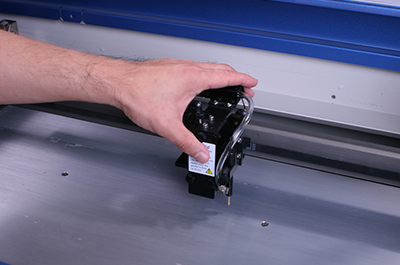

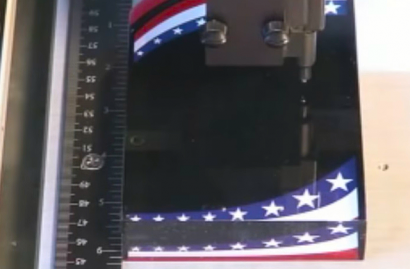

Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.

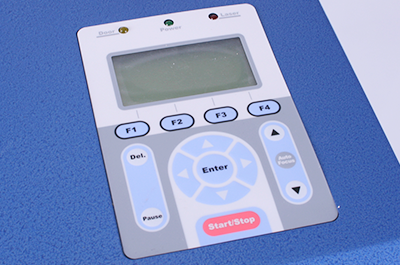

Easy to Use Control Panel
A control panel with coherent hot-key design and graphical icon displays that allows you to change laser parameter settings, set jobs to repeat unlimited times, queue jobs, delete jobs, and more.

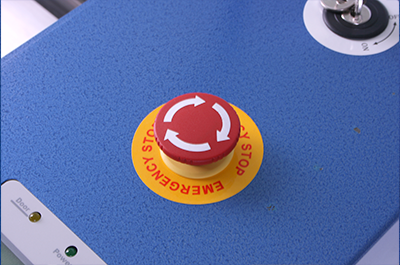

Key Switch Emergency Stop
Key switch safeguards the machine from unauthorized use.Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

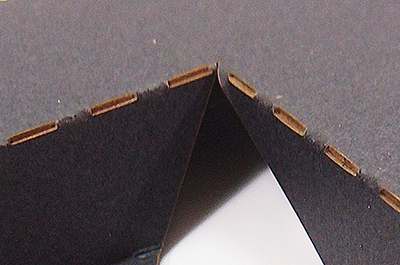

Bridge Cutting
Bridge Cutting function diversifies the laser cutting into packaging prototyping and ful fill versatile requirements. Define the cutting gap to create the dashed line effect from user-friendly print driver interface.
Bridge Cutting online Video
Pass-through Door Switch Module
Pass-through Door Switch Module
The Pass-through Door Switch Module is designed to activate the laser when the door is open which conforms the CDRH safety required by FDA.

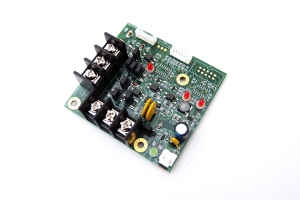

External Interface Control Board
External Interface Control Board
The External Control Interface Board is an optional item that allows users to set up GCC laser machines for communication with external devices such as odor reduction units, robot arms and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.

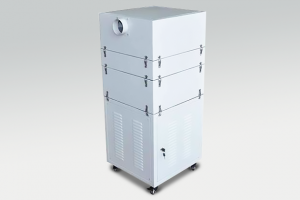

Entry-Level Fume Extraction System
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove the hazardous fumes and dusts during laser processing to protect the health of operators, eliminate environmental pollution and enhance the laser cutting.
SmartPRINT™
SmartPRINT™
The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users. Currently, this new optional solution is compatible with GCC Spirit Series, VenusII, C180II, MercuryIII, S290LS and MG380Hybrid laser engravers. And GCC X Series and T500 laser cutters. -- more laser models are expected to join the line in the near future.
. SmartPRINT™ will run in trial mode and will cut a horizontal lines through your

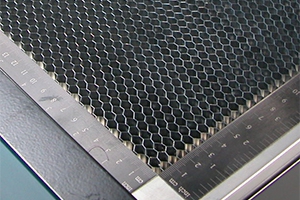

Honeycomb Table
Honeycomb Table
The honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the work piece off the work table from hitting by laser reflection while supports it with honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by down vacuum funnel exhaust. Rather than handling rigid materials, honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus d

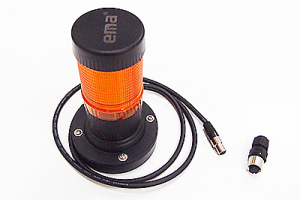

SmartGUARD™ Fire Alarm (Patented)
SmartGUARD™ Fire Alarm (Patented)
Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

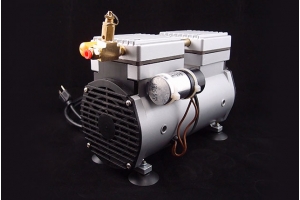

Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
Purex Fume Extraction System
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca

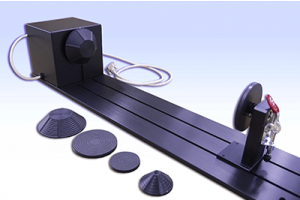

Rotary Attachment
Rotary Attachment
Allows the laser system to perform at another level! By using the rotary attachment, engraving on cylindrical or round objects is now possible. This option uses a fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixture available. The minimum/maximum diameter and length of the working object is 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.

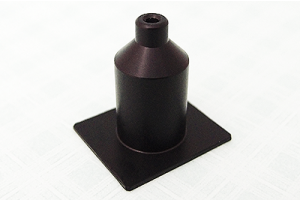

SmartAIR™ Fine Nozzle
SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.
Mercury III
Max. Part Size
(L x W x H)
All Doors Closed27 x 19 x 6.5 in. (685 x 482 x 165 mm)
All Doors Open27 x ∞ x 6.5 in. (685 x ∞ x 165 mm)
Table Size31.1 x 20.9 in. (790 x 530 mm)
Dimensions 44.3 x 28.3 x 39.6 in. (1125 x 720 x 1005 mm)
Laser Source

12, 30, 40, 60W

CoolingAir-cooled, Operating environment temperature 15°- 30°C (60°- 86°F)
DriveClosed-loop DC Servo Control
Speed ControlAdjustable from 0.1~100% of 42 IPS
(Up to 16 color-linked speed settings per job)
Power ControlAdjustable from 1-100% (Up to 16 color-linked power settings per job)
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254mm or 0.1% of move, whichever is greater
Z-Axis MovementAutomatic
Focus LensStandard 2.0", optional 1.5", 2.5" & 4.0" available
Resolution (DPI)Available125, 250, 300, 380, 500, 600,760,1000, 1500
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Compatible Operating SystemsMS Windows
Display Panel4-line LCD panel showing current file name, total working time,
laser power, engraving speed, file(s) loaded into memory buffer,
setup and diagnostic menus.
SafetyClass I Laser Product Compliant with EN60825
Class II Laser Product Compliant with CDRH
2006/42/EC Machinery Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Auto FocusV
Red Dot PointerV
Pass Through DoorsV
3D and Stamp ModeV
Operation Voltage100-240VAC, 50-60Hz Auto Switching, Max. 15A
Fume Extraction SystemExternal exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/h) is required,2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.​
