S290LS
Laser Engraving Machine

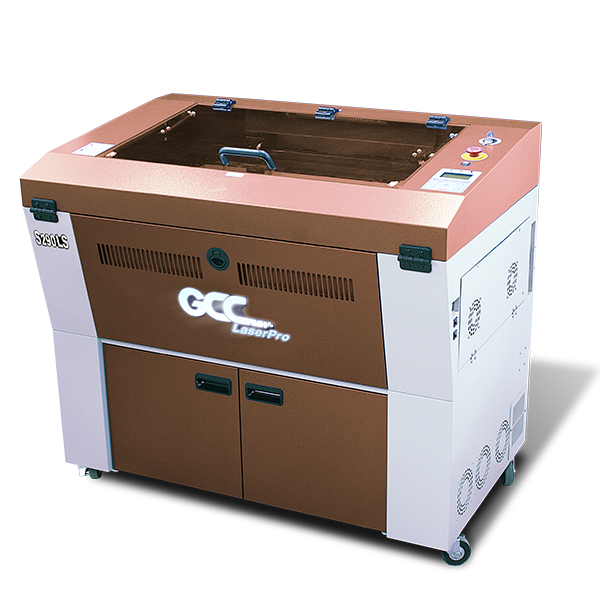

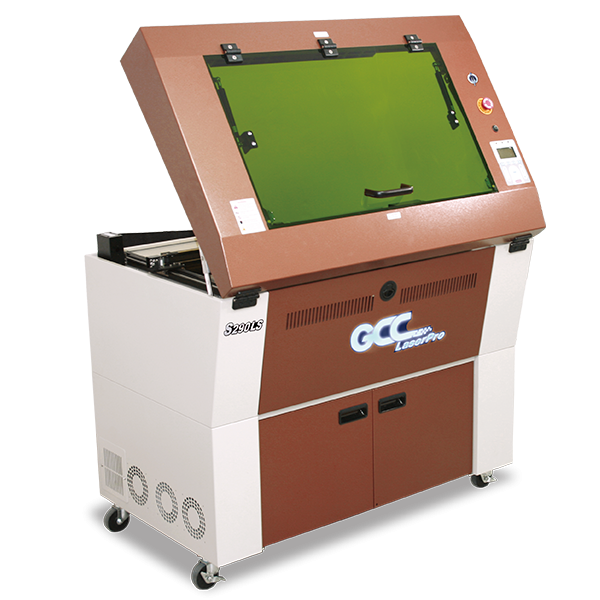

S290LS Laser Engraver
A full table size production marker, GCC LaserPro delivers an easy to operate DPSS laser marking system which yields spectacular marking results. The S290LS is a marking specialist engineered for performance and produces excellent output quality.
S290LS
S290LS-2
1 1
Laser Engraving Machine
S290LS Laser Engraver
Whether it is a graphic on metallic surfaces, markings on plastic surfaces, or simply barcodes on metal tools, the S290LS produces the finest markings.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

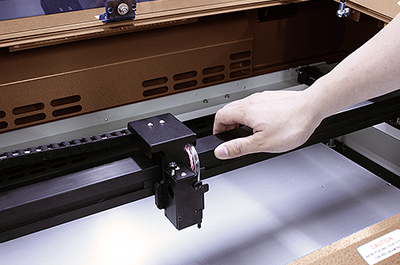

Drag-N-Play
An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.

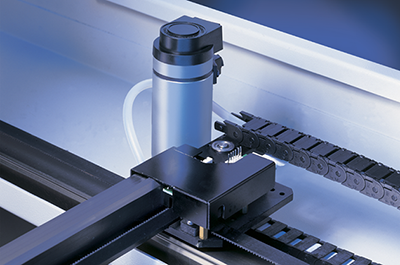

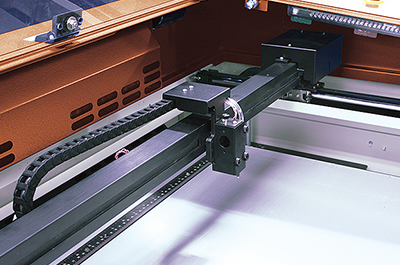

DuraGuide Motion Design
Systematic and reliable motion system embedded with strong mechanical framework, reinforced Kevlar belts, and closed-loop servo motor control technology to deliver superb output quality under rapid movement.
Closed-loop DC Servo Technology
DC servo motor applies a higher quality motor and controller to send command to the motors and utilizes an encoder to feedback location values to the controller, so the motors always verify their positions. This continual link allows the motors to run faster with higher acceleration and speed that the laser engraver can cut or engrave and also you can move the laser carriage to any position and resume working precisely. Adopting the servo control technology, GCC LaserPro high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptionally accurate outputs.

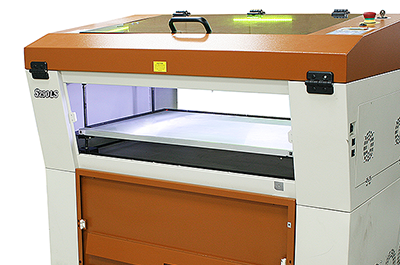

Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

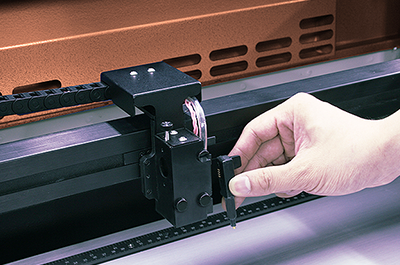

SmartPIN AutoFocus (Patented)
The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality in the lasering process.

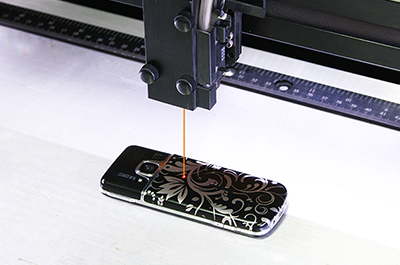

SmartCENTER™ (Patented)
The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.

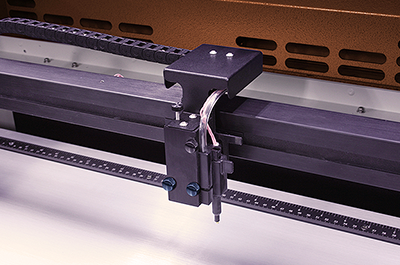

SmartACT™ (Patented)
Ground breaking technology that reduces the ramping process and job running time to boost productivity.

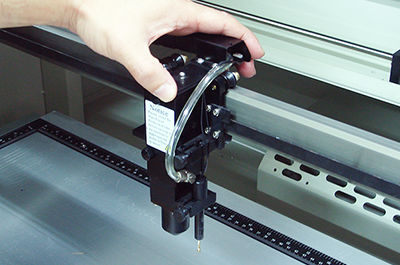

Programmable Origin Modes
Easy-to-use multiple position modes allow the operators an effortless way to setup a job with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

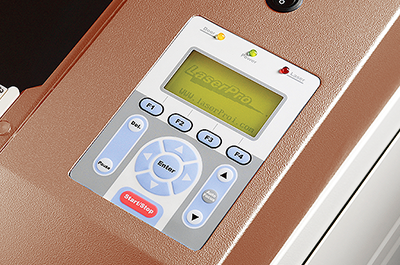

Intuitive Control Panel Interface
A user-friendly menu-driven interface system simplifies complex tasks. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.

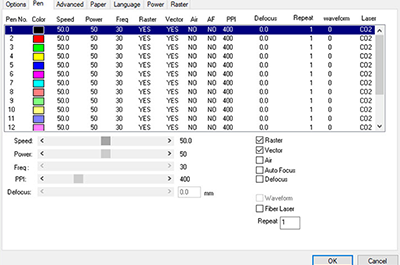

Innovative Windows Driver
LaserPro Windows based driver provides powerful functions, such as SmartCENTER, Air Assit by Pen, Defous by Pen, Drill, Dithering Patterns and more to reduce set up time and make easy adjustments to achieve marvelous output quality.

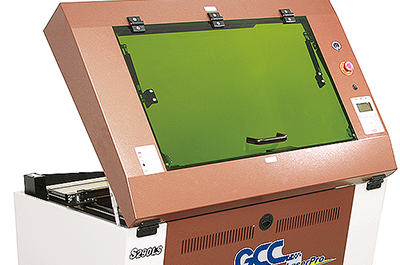

SmartLID™ (Patented)
An innovative design that grants easy access to internal machine parts for daily maintenance.

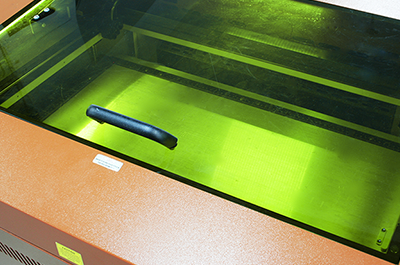

SmartLIGHT
Built-in LED light module illuminates the working space and makes every engraving detail easy to see.

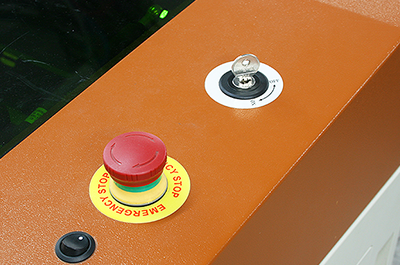

Key Switch & Emergency Stop
Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

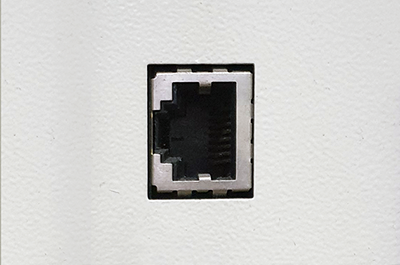

Built-In Networking Connection
Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility...MORE

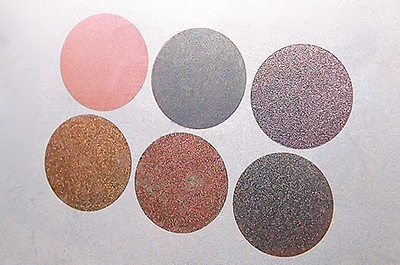

Multiple Waveforms
A waveform is a pulse with a specific shape, pulse energy and duration. The benefits of a waveform are that it allows customers to adjust pulse conditions to optimize marking...MORE
Wi-Fi Router
Wi-Fi Router
Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.
Pass-through Door Switch Module
Pass-through Door Switch Module
The Pass-through Door Switch Module is designed to activate the laser when the door is open which conforms the CDRH safety required by FDA.
Purex Fume Extraction System
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca
Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
SmartGUARD™ Fire Alarm (Patented)
SmartGUARD™ Fire Alarm (Patented)
Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table
Honeycomb Table
The honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the work piece off the work table from hitting by laser reflection while supports it with honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by down vacuum funnel exhaust. Rather than handling rigid materials, honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus d
SmartPRINT™
SmartPRINT™
The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users. Currently, this new optional solution is compatible with GCC Spirit Series, VenusII, C180II, MercuryIII, S290LS and MG380Hybrid laser engravers. And GCC X Series and T500 laser cutters. -- more laser models are expected to join the line in the near future.
. SmartPRINT™ will run in trial mode and will cut a horizontal lines through your
SmartAIR™ Fine Nozzle
SmartAIR™ Fine Nozzle
The optional SmartAIR Fine Nozzle is recommended for engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.

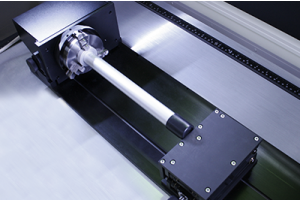

Rotary Chuck - S290LS/FMC280
Rotary Chuck - S290LS/FMC280
Handy rotary chuck to work with cylindrical metal objects like pipes, engineering parts, and even spherical objects with tilt angle. In addition to the standard X, Y, Z axis, the rotary Chuck allows for a fourth axis which rotates the object 360° to allow for engraving and cutting on spherical objects. The diameter range of the to-be-engraved object is 0.5mm to 120mm and the max. length of the object is 410mm. Its maximum weight should not exceed 4kgs.
S290LS
S290LSS290LS-20SHSS290LS-20JFLS290LS-30JFLS290LS-50JFL
Laser SourceFiber laser: 20 / 30 / 50W
Wavelength1064 nm
Laser M²<1.3<1.3<1.3<1.8
Laser Peak Power (kW)>7>4.5>5.5>8
Work Area25 x 18 in. (640 x 460 mm) extendable to 29 x 18 in. (740 x 460 mm)
Max. Part Size
(L x W x H)
All Doors Closed31.5 x 22.4 x 6.5 in. (800 x 570 x 165 mm)
All Doors Open31.5 x ∞ x 6.5 in. (800 x ∞ x 165 mm)
Table Size31.1 x 20.9 in. (790 x 530 mm)
Dimensions44.3 x 28.3 x 39.6 in. (1125 x 720 x 1005 mm)
CoolingAir Cool
DriveClosed-loop DC Servo Control
Maximum Motor Speed*80 IPS
Speed ControlAdjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
Power ControlAdjustable from 0~100% (Up to 16 color-linked power settings per job)
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254 mm or 0.1% of move, whichever is greater
Z-Axis MovementAutomatic
Focus LensStandard 4.0", optional 2.0" available
Resolution (DPI)Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500, 3000
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Display Panel4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
SafetyClass I Laser Product Compliant with EN60825
Class 3R Laser Product Compliant with CDRH
2006/42/EC Machine Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Facility Requirements
Operation Voltage100V-240VAC, 50/60Hz Auto switching, MAX. 8A
Fume Extraction SystemExternal exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/h) is required,
2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system.
