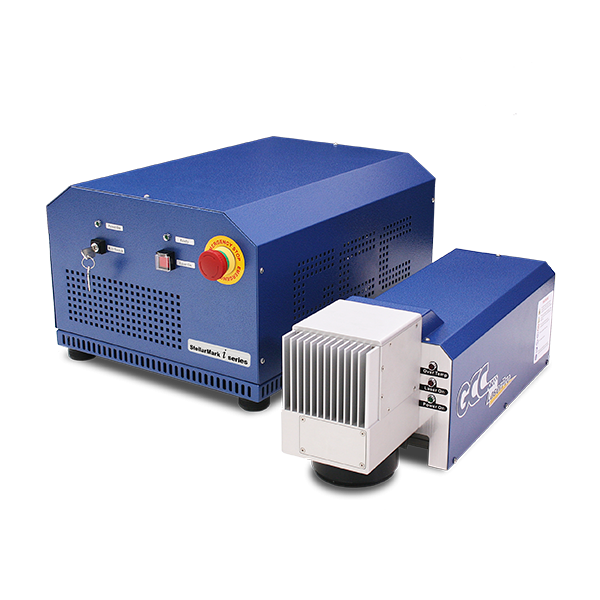

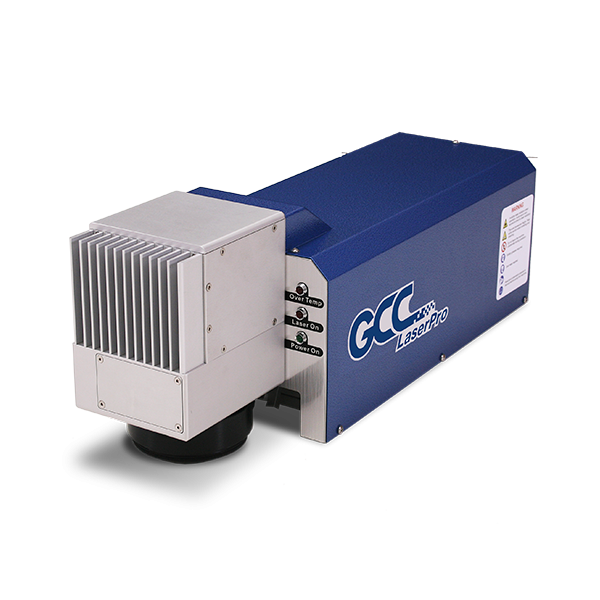

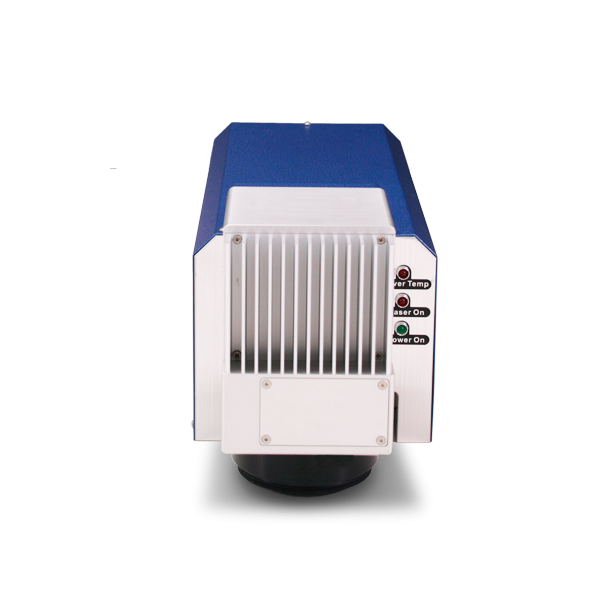

StellarMark I-series Laser Marker
StellarMark I-Series Laser Marker is a comprehensive solution that satisfies customers with diverse requirements.
StellarMark_I-series
StellarMark_I-series-2
StellarMark_I-series-3
1 1
Laser Marking Machine
StellarMark I-series Laser Marker
StellarMark I-Series is easy to install, easy to operate, designed with simple maintenance and safety considerations while providing superior output quality.

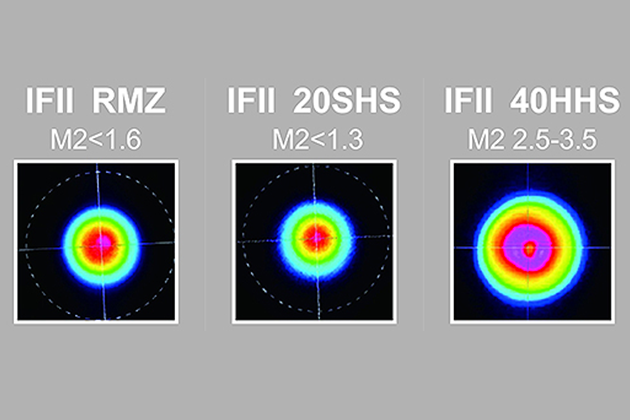

Superior Output Performance
Benefiting from the state-of-the-art design, StellarMark I-Series stands out from the competition by increasing productivity and providing superior output quality. The TEM00 beam mode brings in high precision marking results and stable laser output maintain consistent marking quality. Different M2 values are available with the different models under the IF-series catering to the different requirements for different applications.

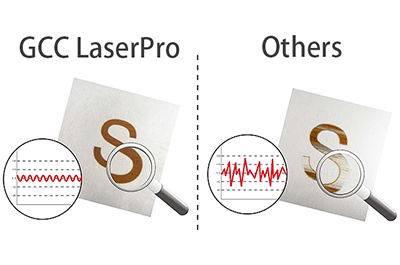

Consistent Power Stability:

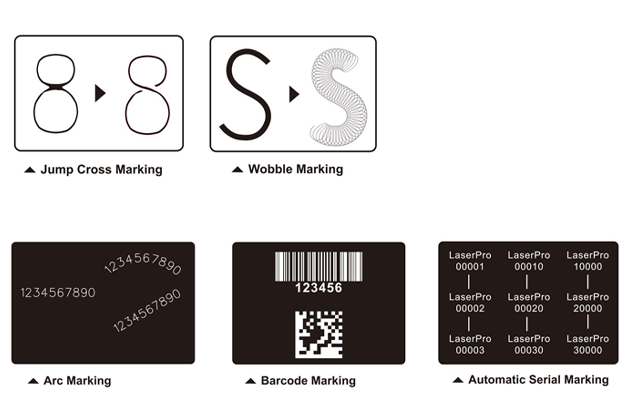

Superior Text-editing Function
** Automatic Serial Marking
** Barcode Marking
** Wobble Marking
** Jump Cross Marking
** Font Variation
** Logo and Image Marking
** Arc Marking

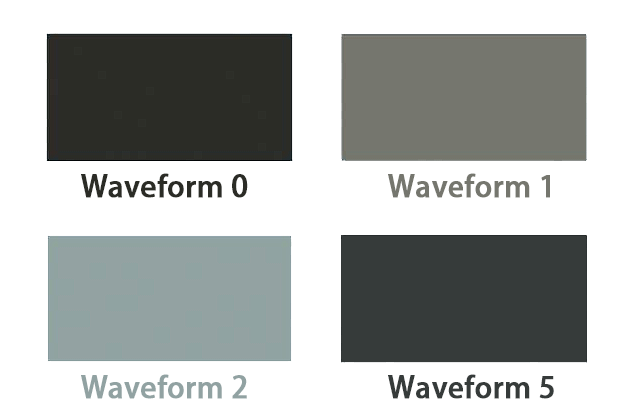

Multiple Waveforms
While the IFII 20RMZ model has a single waveform suitable for basic marking applications, multiple waveforms are available for the IFII 20SHS and IFII 40HHS models further enabling you to make use of 25 optimized pulse waveforms ranging in duration from 10-240ns optimized for sophisticated marking and micro-machining applications.
The availability of the waveforms open up more combinations that enables users to fine-tune their laser settings for optimal results...MORE

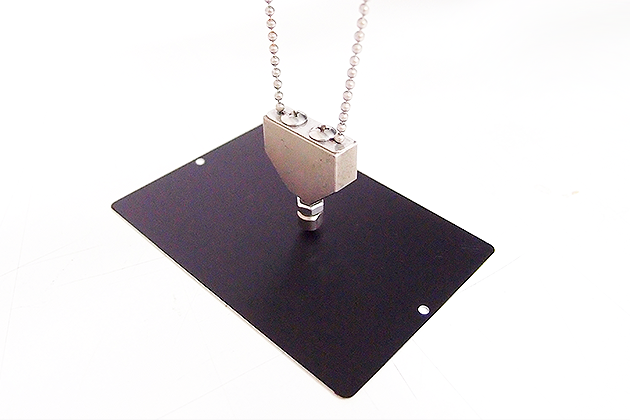

Pyramid Focus Tool
Pyramid Focus Tool is standard feature for StellarMark IFII series. It helps you to quickly and precisely find the correct focus distance with ease.

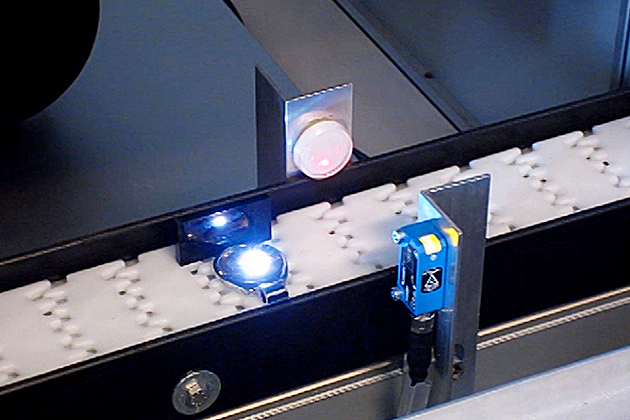

Mark On Fly (Optional)
An optional software function that features marking of moving objects on a conveyor.
G-Mark Library (Optional)
This programmable software can be used to customize functions by VB scripts. All the commands can be received in real time from master PC and allows the position to offset, it also permits angle rotation and text contents can be varied from time to time without extra editing process.
With G-Mark Library, the workflow of the marking process can be optimized and simplified at production line.

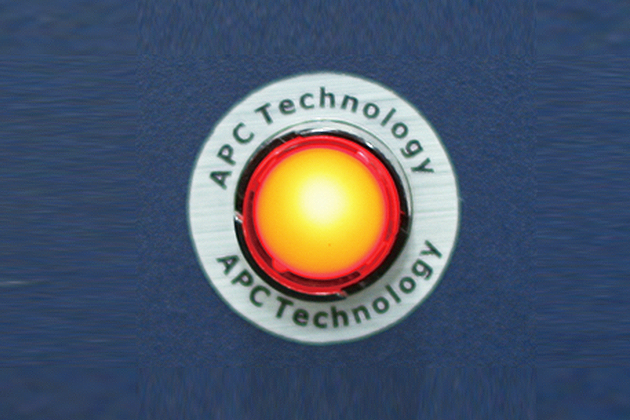

Auto Power Compensation
Close loop design to ensure a consistent output power over a long period of time.

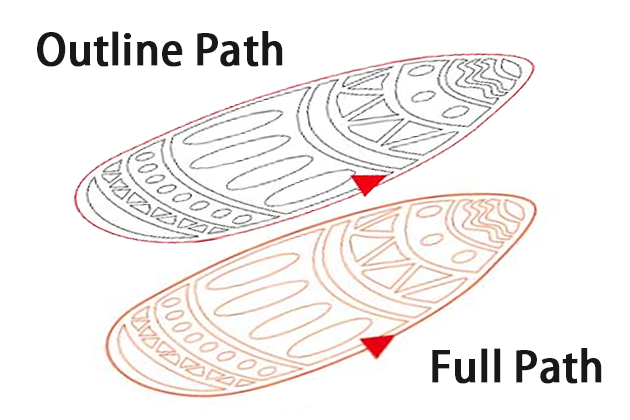

Preview Mode
Variable-speed, red dot pointer "preview" mode allows for accurate and easy marking positioning on the marked part.
Cost-Saving Solution
StellarMark I-Series is equipped with the state of the art technology of end pumped and fiber design, offering less downtime and lower running costs than other conventional laser.

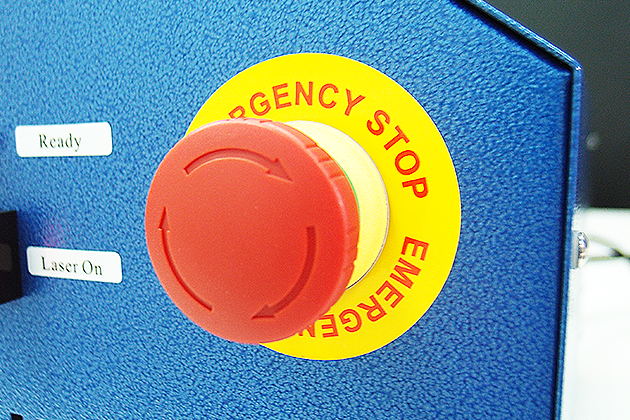

Emergency Stop
The machine can be entirely shut down by pressing the Emergency Stop button from controller when any emergency occurs.

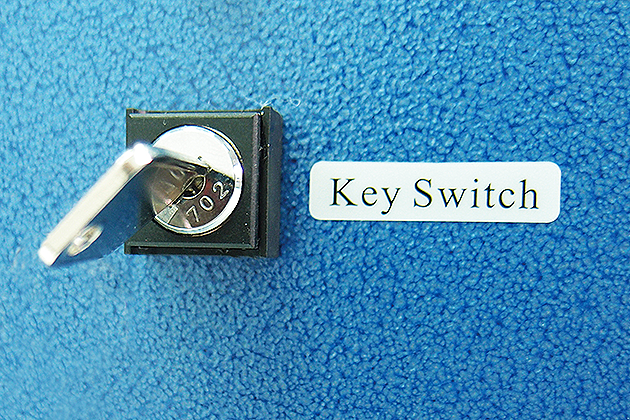

Key-Switch
This safety feature enables operators to keep the laser locked to avoid unauthorized use.
CE Certification
StellarMark complies with essential safety requirements set out in the European Directives.
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

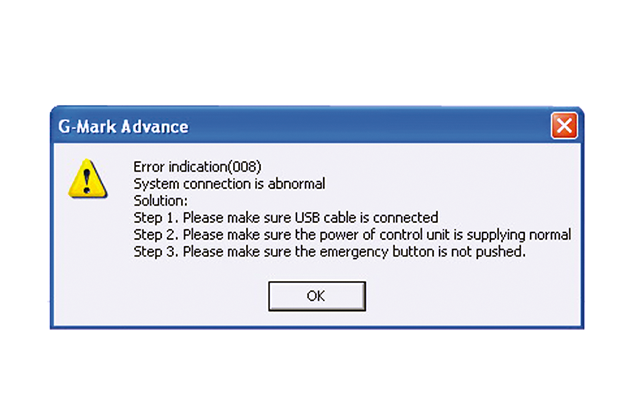

Error Indications
Error message appears when the laser marker works incorrectly. So operators can be informed by the message and to solve the problem immediately.

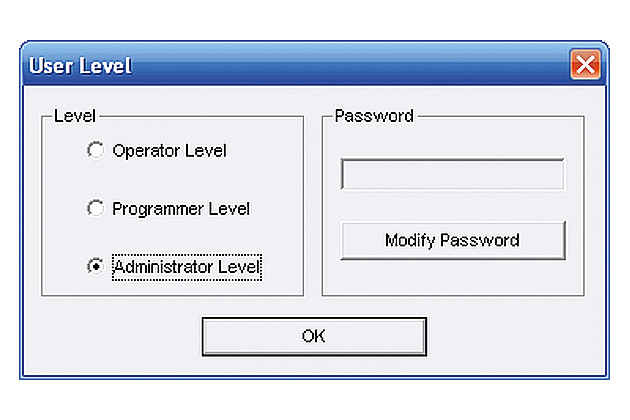

Secure Password Protection
Three-tier password security system restricts unauthorized access to the production line.
Safety door
Safety door
Stellar Mark I-Series can be fastened to a rigid mounting structure to ensure the marking system and adjustable Z-axis table are parallel to each other for quality jobs.

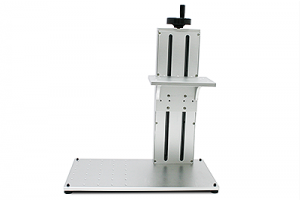

EZ Stand (i-series)
EZ Stand (i-series)
EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with 12W and 30W StellarMark models. An adjustment dial on the EZ Stand allows users to quickly and easily adjust the position of the laser marker to maintain the most suitable focal distance for the varying focal distance requirements when marking objects of different sizes.
Adjustable z-axis table
Adjustable z-axis table
Adjust the marking surface as required to ensure that it is parallel to the Stellar Mark focusing lens mount.
Rotary Attachment - Marker
Rotary Attachment - Marker
The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

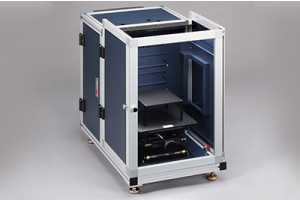

Workstation
Workstation
*Not available on StellarMark C-100 model
StellarMark I-seriesIFIIS 20JFLIFII 20SHSIFIIS 30JFLIFIIS 50JFLIFIIS 60JFL
Laser SourceWavelength1064 nm
TypeYb-doped, MOPA
Output Power20W30W50W60W
Beam ModeTEM00
Beam Quality (M²)<1.5<1.3<1.5<1.5<1.8
Frequency1-600 kHz 1-1000 kHz 1-600 kHz 1-600 kHz 1-400 kHz
WaveformSingle25SingleSingleSingle
CoolingAir-cooled
Max. Linear Marking Speed3,000 mm/s
Max. Marking Speed10,000 mm/s
Electrical RequirementsPower Supply100~240V, 50/60 Hz Max 15 Amp
Power ConsumptionMax. 1650W
DimensionsLaser HeadL 497 x W 168 x H 152 mm
Control UnitL 470 x W 360 x H 241 mm
Laser Marker Weight9 kg
Control Unit Weight25 kg
Operating SystemMicrosoft Windows 2000 / XP / Vista(32/64 Bit) / 7(32/64 Bit) / 8(32/64 Bit) (Desktop or Laptop PCs)
EnvironmentTemperature15℃ ~ 35℃
Humidity10 ~ 80% Non condensing
SafetyClass 4 (EN60825-1 Class 1 available with safety shield and LFC)
2006/42/EC Machinery Directive)
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive

StellarMark IFIIS 20/30/60JFL Scan Lens
Model No.70110180300
Working Area70x70 mm110x110 mm180x180 mm300x300 mm
Spot Size27 μm 44 μm 71 μm 114 μm
Working Distance142 ± 1 mm 220 ± 2 mm 350 ± 2 mm 553 ± 3 mm
Repeatability**0.03 mm0.03 mm0.04 mm0.06 mm
StellarMark IFIIS 20SHS Scan Lens
Model No.70110180
Working Area70x70 mm110x110 mm180x180 mm
Spot Size22 μm 35 μm 55 μm
Working Distance142 ± 1 mm 220 ± 2 mm 350 ± 2 mm
Repeatability**0.03 mm0.03 mm0.04 mm

Above specifications are subject to change without further notices. See dealer or visit http://www.GCCworld.com for more details.
All above spot size will be material dependent.
*According to theoretical calculation.
**The test is 8-hour continuous firing with power level at 30% using a 60JFL
