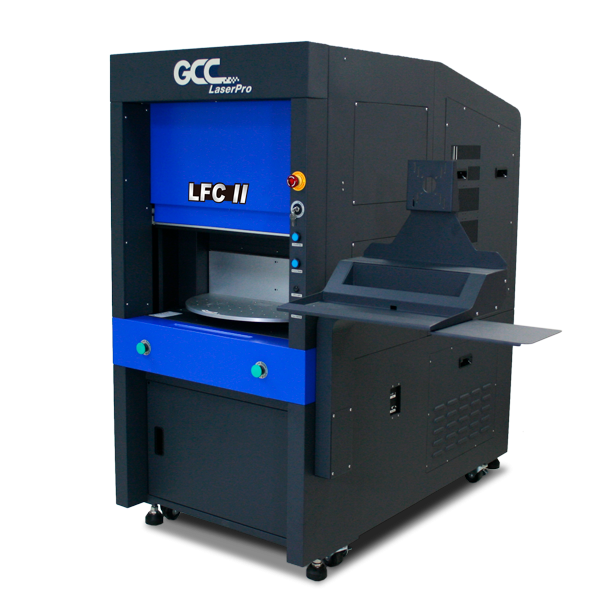

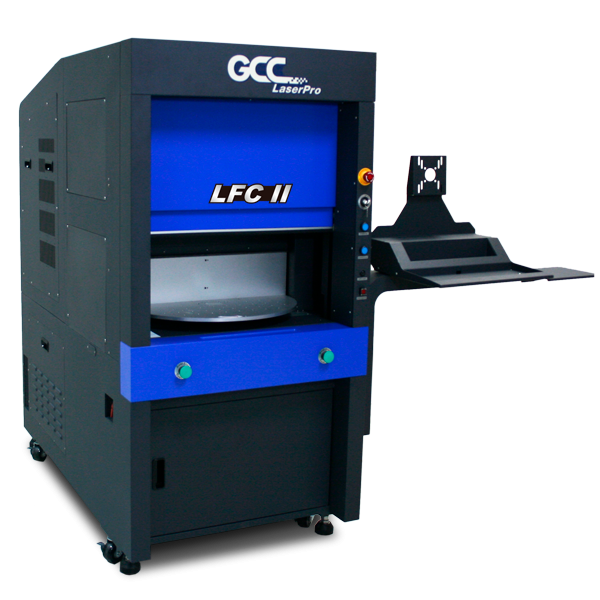

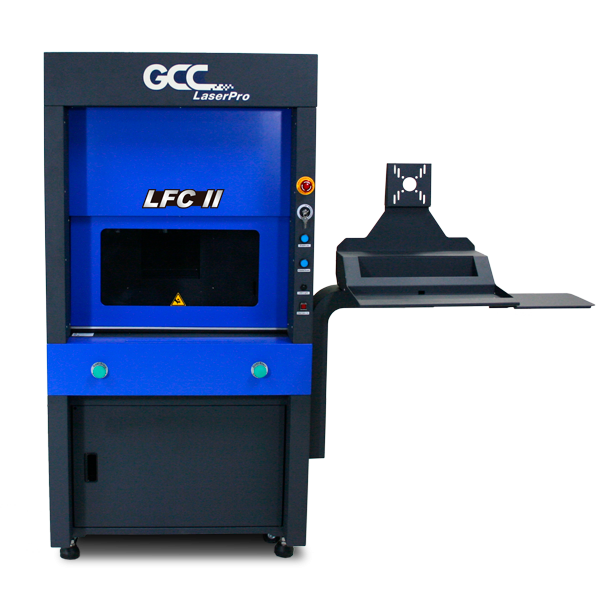

LFC II Workstation | Laser Engraving, Vinyl Cutter, UV Printer

Standard Table

Standard table with matrix M6 circular slots for fixture mounting, setup is very easy.

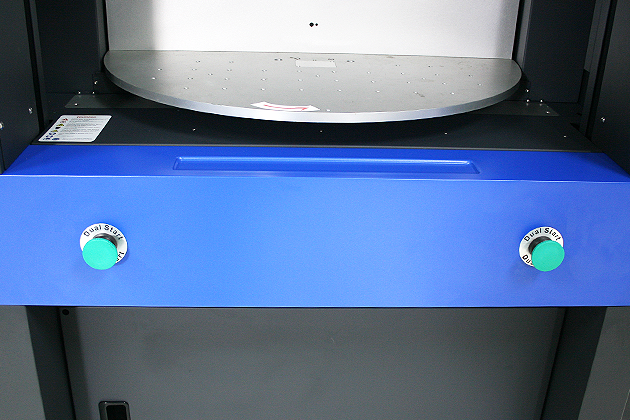

Dual Start Button

Advanced secure protection by simultaneously pushing the Dual Start buttons to fire laser.

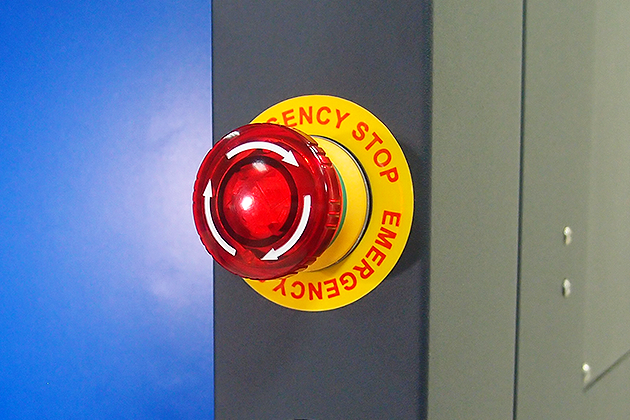

Emergency Stop

Big red button located on the right of machine allows operators to stop the laser and AC power immediately to provide highly safety operation.

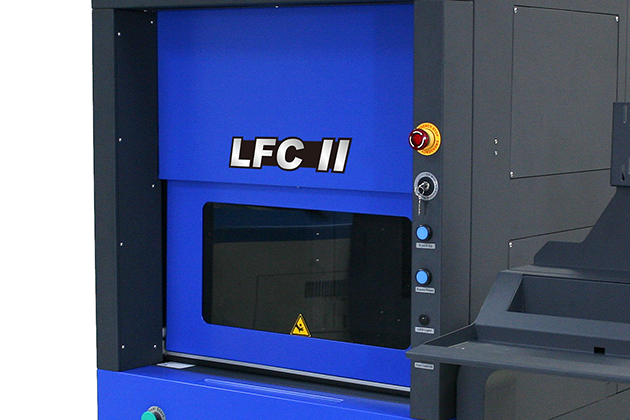

Automatic Safety Door

Automatically controlled front door with the anti-pinch to secure safety operation.

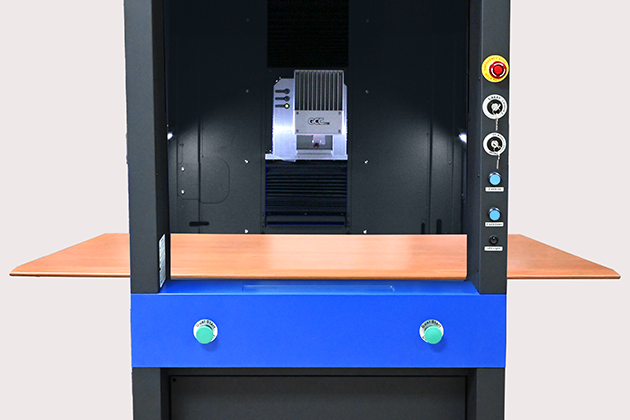

Pass-Through Door

Removeable side doors allow integrating with conveyor and Mark On Fly (optional) for continuous production with 420 x 290 x 420 x 290 x ∞ mm (WxDxL) * When the right door and left door are open, machine becomes a Class 4 equipment and users must wear goggles to operate the machine.

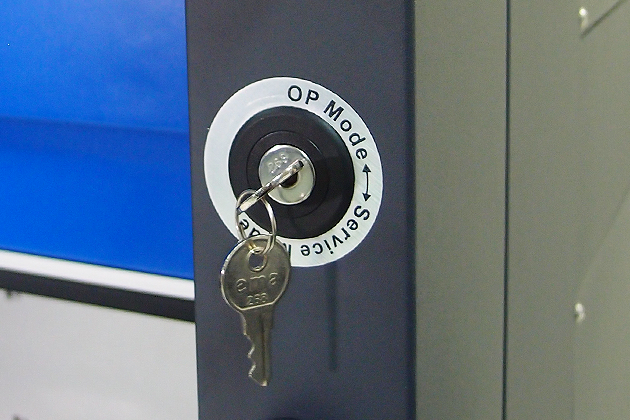

Key Switch

Key Switch manages different authority levels between Service Mode and Operator Mode to restrict unauthorized access to the production setups. *Service Mode will allow laser firing when door is open to allow parameter test and setup.

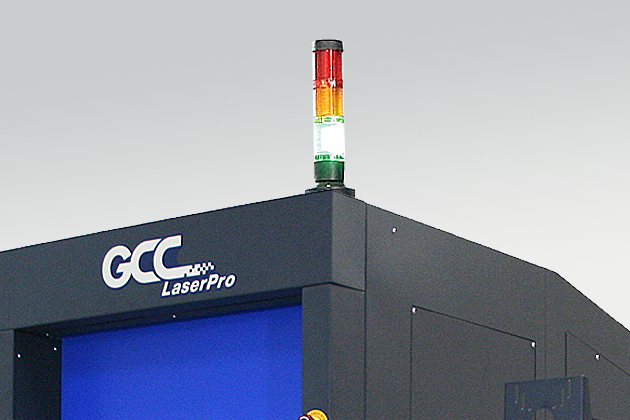

External Signal Indicators

The three-color indicator shows the current status of the machine, easily visibility and ideal for the factory working environment.

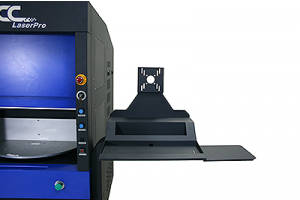

Screen Frame Module

Screen Frame Module can place laptop, monitor, keyboard and mouse conveniently.

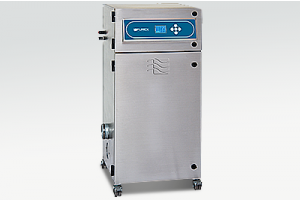

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca

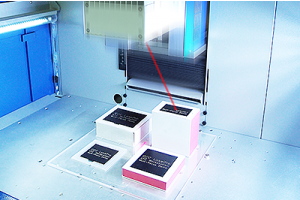

MultiFOCUS

MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times.

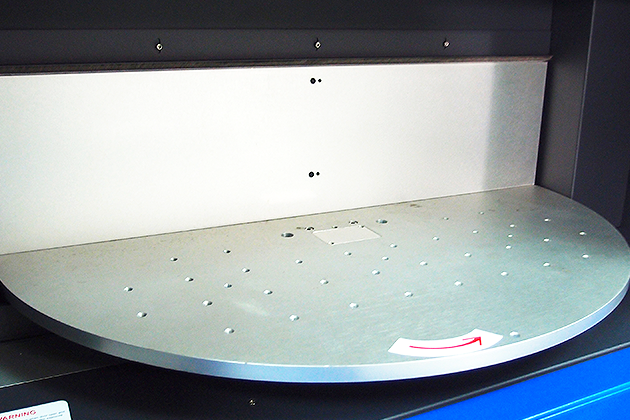

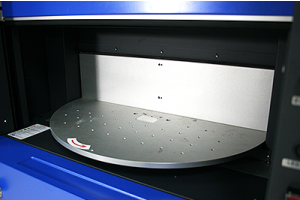

Rotary Table

Rotary table can maximum production throughput by loading and unloading working materials while laser firing at the same time.

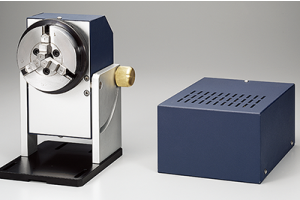

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

Model No.		LFC II
Available Laser Marker		CIIA / CIIS / CIIP / IFII / IFIIS Series
Scan Lens	CO2	70 x 70mm, 140 x 140mm, 200 x 200mm, 300 x 300mm
Scan Lens	Fiber	70 x 70mm, 110 x 110mm, 180 x 180mm
Working Table Size		700 x 400mm
Front Door		Automatic door
Max. Loading		50 kg
Z-axis Travel		385mm
Safety Class		Class 1 (EN60825-1)
Software		G-Mark Basic / G-Mark Library
Operating System		Microsoft Windows XP / Vista(32/64 bit) / 7(32/64 bit) / 8(32/64 bit) (Desktop or Laptop PCs)
Interface		USB x 1, VGA x 1
Power Supply		AC Auto Switching 115 / 230V, 50-60Hz / Single Phase
Power Consumption		1650W
Operating Temprature		15°C ~35°C
Operating Humidity		10 ~ 80% Non condensing
Dimension		1585(L) x 852(W) x 1745(H) mm 1854(L) x 1192(W) x 2050(H) mm (with package)
N.W.		235 kg
G.W.		580 kg
Optional Item		Rotary Table (Ø 650mm, 2 station)
		Screen Frame Module
		MultiFOCUS
		Air Extraction System

Max. Work Piece Size
Standard Table
C-Series		Max.Work Piece Size
Lens	Scan Area	Length	Width	Height
10	10 x 10mm	720mm	320mm	525mm
50	50 x 50mm			490mm
70	70 x 70mm			460mm
140	140 x 140mm			355mm
200	200 x 200mm			265mm
300	300 x 300mm			125mm
IF-Series		Max. Work Piece Size
Lens	Scan Area	Length	Width	Height
70	70 x 70mm	720mm	320mm	420mm
110	110x110mm			345mm
180	180x180mm			185mm

Rotary Table
C-Series		Max. Work Piece Size
Station	Scan Area	Length	Width	Height
2 Station	10 x 10mm	650mm	320mm	155mm
	50 x 50mm
	70 x 70mm
	140 x 140mm
	200 x 200mm
	300 x 300mm
IF-Series		Max. Work Piece Size
Station	Scan Area	Length	Width	Height
2 Station	70 x 70mm	850mm	320mm	155mm
	110x110mm
	180x180mm

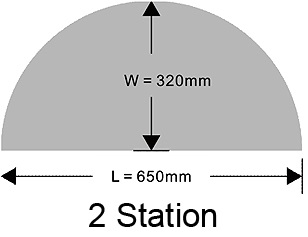

Rotary Table
C-Series		Max. Work Piece Size
Station	Scan Area	Length	Width	Height
2 Station	10 x 10mm	650mm	320mm	155mm
	50 x 50mm
	70 x 70mm
	140 x 140mm
	200 x 200mm
4 Station	10 x 10mm	320mm	320mm
	50 x 50mm
	70 x 70mm
	140 x 140mm
IF-Series		Max. Work Piece Size
Station	Scan Area	Length	Width	Height
2 Station	70 x 70mm	850mm	320mm	155mm
	110x110mm
	180x180mm
4 Station	70 x 70mm	320mm	320mm
	140 x140mm

Specifications are subject to change without prior notice.
