Laser Cutting Machine
MG380Hybrid Laser Cutter
The GCC LaserPro MG380Hybrid is equipped with metal laser tube and glass laser tube at the same time which allow users to produce superior engraving and cutting work piece. This all-in-one machine saves your storage space and makes your profit maximum.

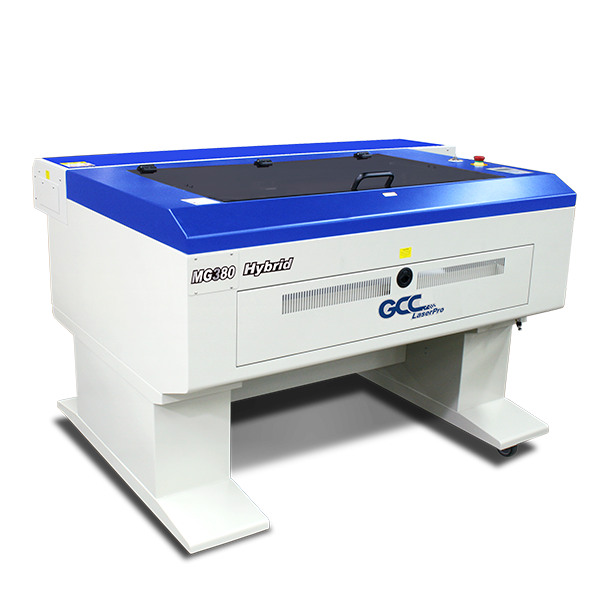

MG380Hybrid

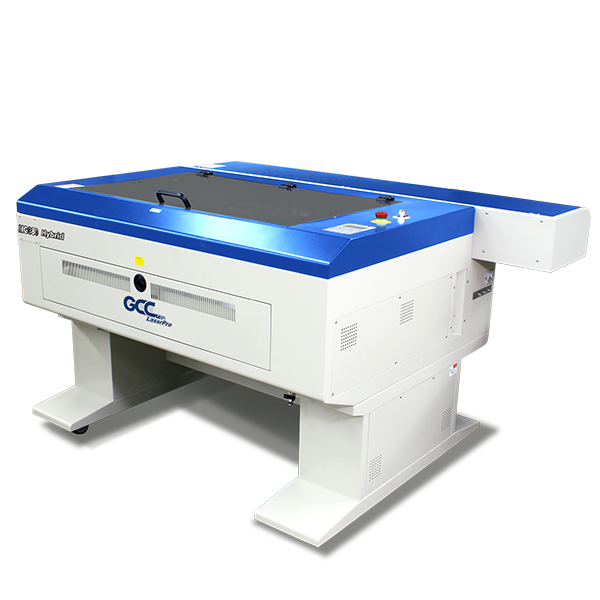

MG380Hybrid-2

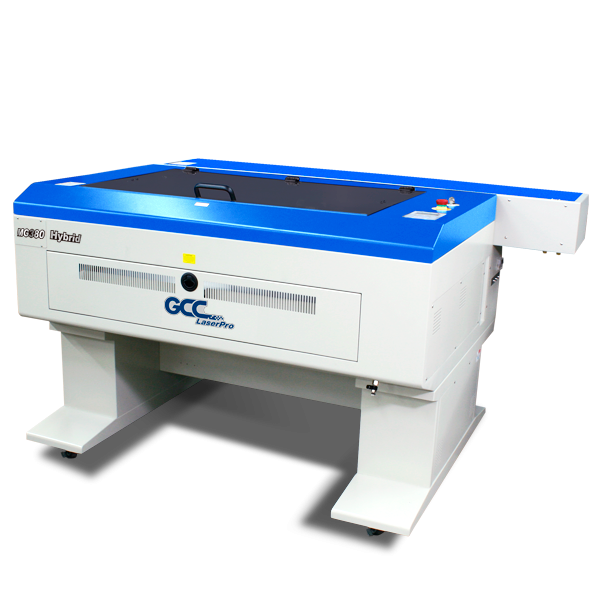

MG380Hybrid-3
1 1
Laser Cutting Machine
MG380Hybrid Laser Cutter
The GCC LaserPro always has an edge over the others with numerous uniquely innovative and user-friendly features.
INQUIRY
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
Dual Laser Tubes (Patented)
Possesses the high engraving quality of RF driven laser tubes while taking advantage of low per-wattage cost of DC excited CO2 glass laser tubes to deliver clear cutting edge on thick materials.
Innovative Software Features
Simple step engraving and cutting laser parameters in GCC LaserPro driver, MG380Hybrid will automatically use different laser tubes to do its best output quality. A real smart laser engraver/ cutter ever.
Emergency Stop
Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a highly safe operational environment.
Motion System with DC Servo Motor
The GCC LaserPro MG380Hybrid utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.
AutoFocus (Patented)
Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.
Programmable Origin
Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N-Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
SmartBOX™ (Optional)
This innovative design is composed of a ventilation box, a honeycomb table and easily rearrange able magnetic supporting pieces. The SmartBOX™ provides great cutting quality and remarkably enhances air extraction.
Pass-through Front to Rear Doors (Optional)
A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.
Easy-to-use Control Panel
Embrace total solution in one machine. Innovative GCC LaserPro MG380Hybrid deliver superior engraving and cutting result by its high end technology.
Rigid and Reliable Construction
Solid machine structure ensures superior output quality and motion stability for superb performance.
Superb Engraving and Cutting Quality
Designed for simplifying complex tasks, the GCC LaserPro MG380Hybrid’s user-friendly interface is a great facilitator to provide powerful function settings.
AAS Contour Cutting Device (Patented)(Optional)
Developed by LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics.
MG380HybridMG380Hybrid-12100MG380Hybrid-30100
Laser WattageRF driven metal laser tube: 12W
DC driven glass laser tube: 100W		RF driven metal laser tube: 30W
DC driven glass laser tube: 100W
Laser SourceSealed CO2 Laser
Laser CoolingRF driven laser tube: Air Cooled; DC driven laser tube: Water Cooled
Working Area38 x 24 in. ( 960 x 610 mm )
Max. Part Size
(L x W x H)
All Doors Closed41 x 25 x 6.5 in. ( 1041 x 635 x 165 mm )
All Doors Open41 x ∞ x 6.5 in. ( 1041 x ∞ x 165 mm )
Table Size42.7 x 29.5 in. ( 1085 x 750 mm )
Dimensions68.9 x 48.9 x 40 in. (1750 x 1242 x 1017 mm)
Driving MotorClosed-loop DC Servo Control
Maximum Motor Speed40 IPS
Speed ControlAdjustable from 0.1~100% ( Up to 16 color-linked speed settings per job )
Power ControlAdjustable from 0~100% ( Up to 16 color-linked power settings per job )
Engraving Capability256-level gray scale image processing capability
Distance Accuracy0.254 mm or 0.1% of move, whichever is greater
Resolution (DPI)Available 125, 250, 300, 380, 500, 600, 760, 1000
Z-Axis MovementAutomatic
Focus LensStandard 2.0", optional 1.5", 3"
Interface10 Base-T Ethernet
USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)
USB Type-B 2.0  – For connecting with the computer
Memory Buffer32MB standard
SafetyClass I Laser Product Compliant with EN60825
Class II Laser Product Compliant with CDRH
2006/42/EC Machinery Directive Compliance
Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Facility Requirements
Operation Voltage200-240VAC, 50/60Hz auto switching, Max. 8A
Water ChillerExternal water chiller required
External Exhaust Systemwith minimum flow rate 800m3/h (CFM 471 ft3/h) is required,2.3kPA negative pressure
(Pure-Air PA-1500FS @ 4" & 8" exhaust port)

*Speed is not equal to throughput. See dealer or visit www.GCCworld.com for more details.
Specifications are subject to change without prior notice.
♦TW Patent I430864
♦US Patent 8,748,775 B2
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
