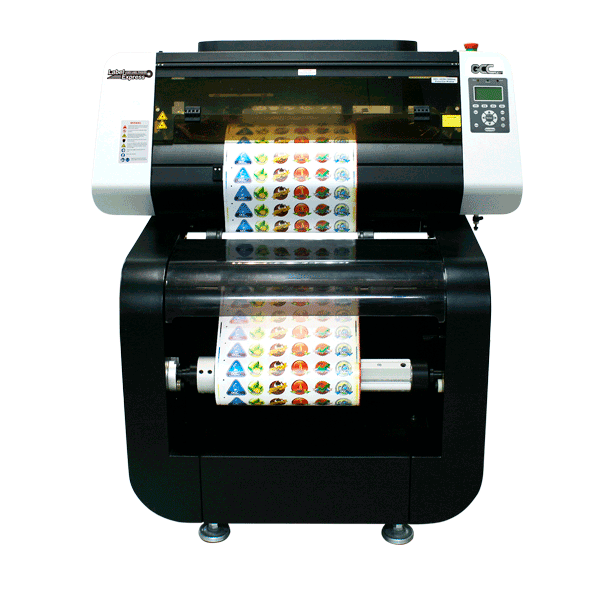

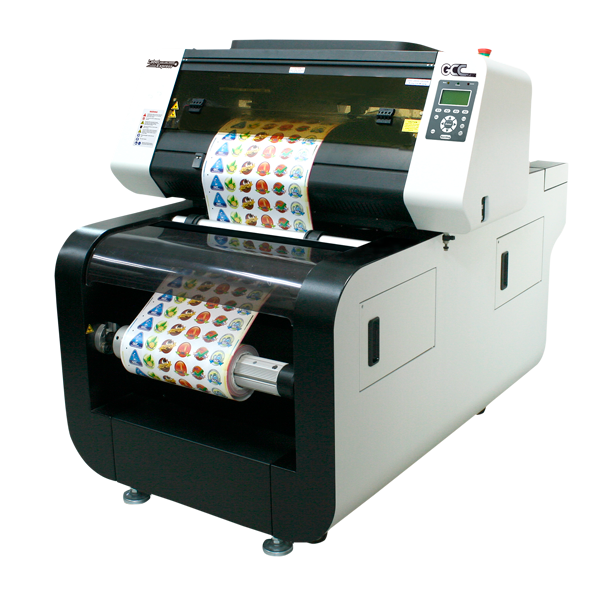

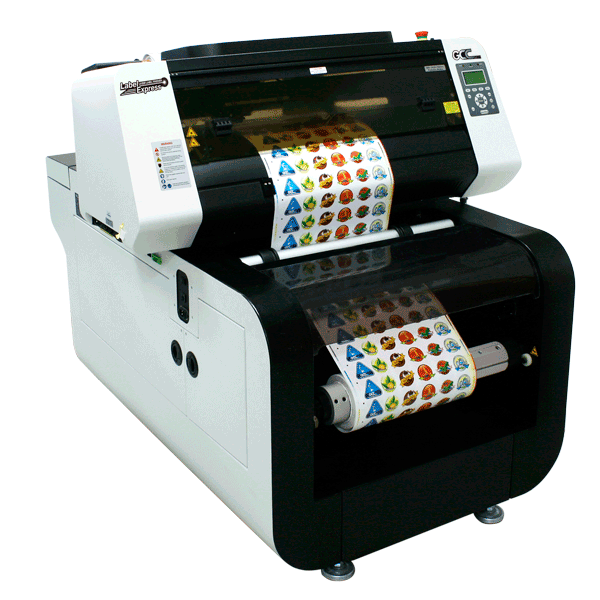

Digital Die Cutting Machine
LabelExpress Laser Finisher
The GCC LabelExpress laser die cutter is a high-speed label cutting system that delivers high flexibility and great precision with an intuitive operation.
LE
LE-3
LE-4
1 1
Digital Die Cutting Machine
LabelExpress Laser Finisher
With the state of the art CCD module, auto-feed system, waste removal module and re-winder device, as well as an optional slitting module. LabelExpress provides an uninterrupted and unattended workflow on one single compact platform.
INQUIRY
RoHS Compliance
All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to provide environmentally friendly products to protect our earth for future generations.

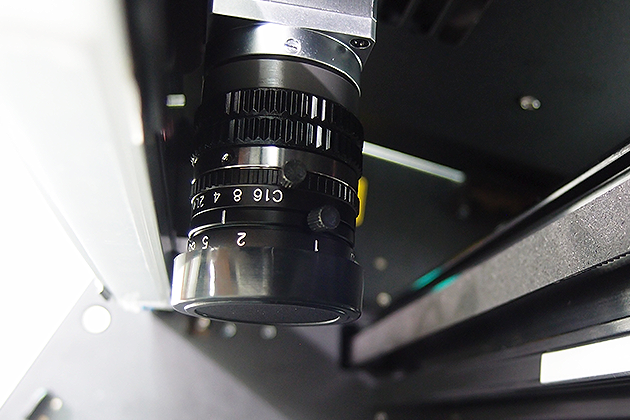

SmartVISION™ Pro CCD
SmartVISION™ Pro CCD is a unique artificial intelligent system that reads two marks with scaling and angle compensation to perform precise contour cutting for printouts.
* Use 3mm square as registration marks for high precision cutting.

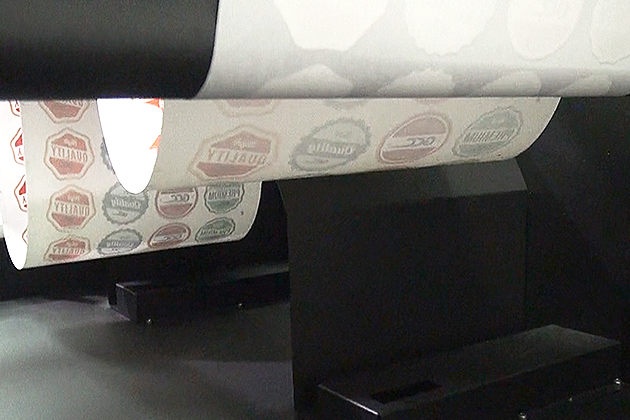

Auto-feeding Paper Sensors
Paper sensors detect the distance in relation with media. When the distance is too long, the media will be automatically fed and cut materials will rewind into the roll for take up.

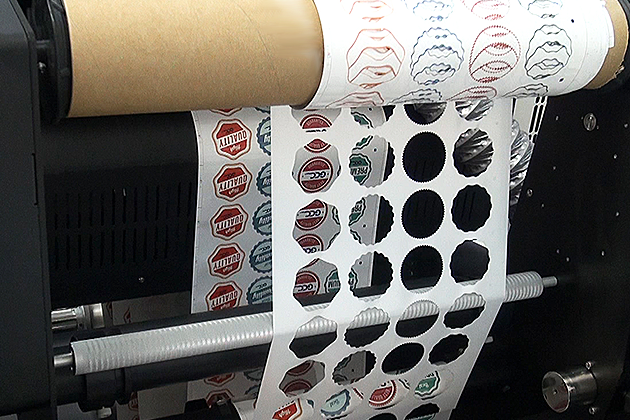

Waste Removal System
With the waste removal system, the cut label will be separated from waste automatically, and the label is ready for use once the cutting job is finished.

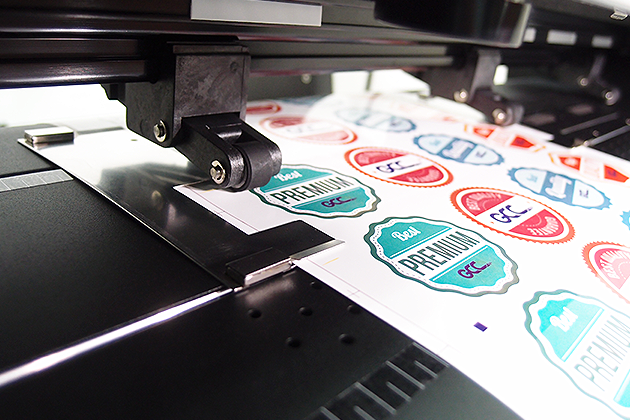

Edge Guiding Mechanism
Edge guiding module keeps materials constantly feeding and prevents materials from shifting.

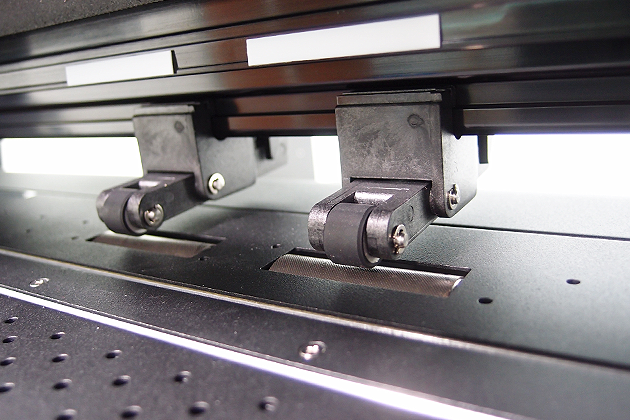

Steel Drum Driven Technology
Reliable steel drum technology drives materials with long plotting and provides excellent tracking ability.

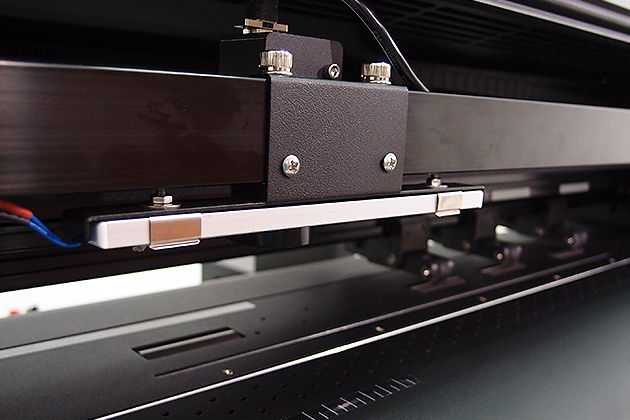

Closed-loop DC Servo Technology
A Closed-loop DC servo motor can deliver greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy due to the continuous movement, instead of constant stopping and restarting. GCC high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptional accurate outputs.

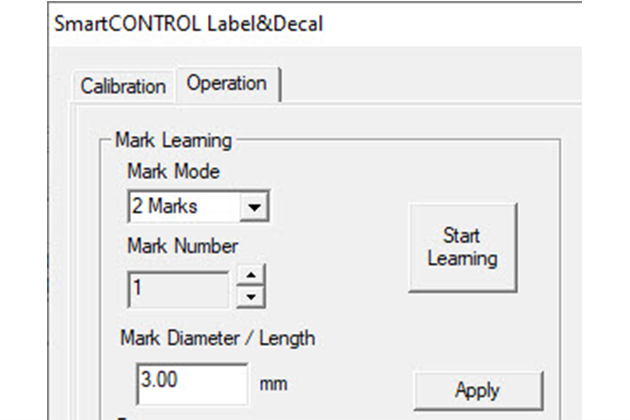

Dedicated SmartCONTROL Label Driver
Dedicated SmartCONTROL Label allows the operators an effortless way to setup a job. Workflows can be drastically simplified with the intuitive and easy-to-use SmartCONTROL Label.

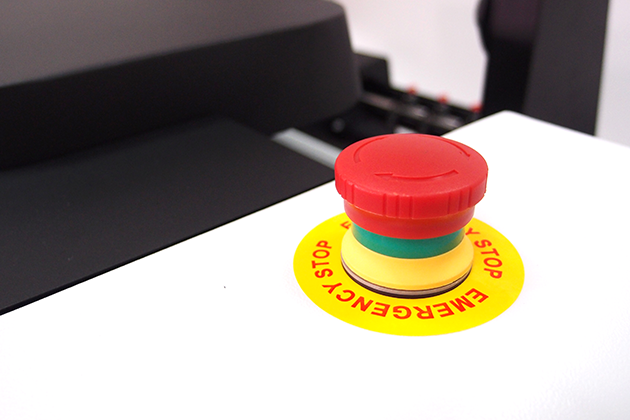

Emergency Stop
Prominent emergency button located on the top of the machine allows operators to stop the laser immediately to provide a safe operating and working environment.

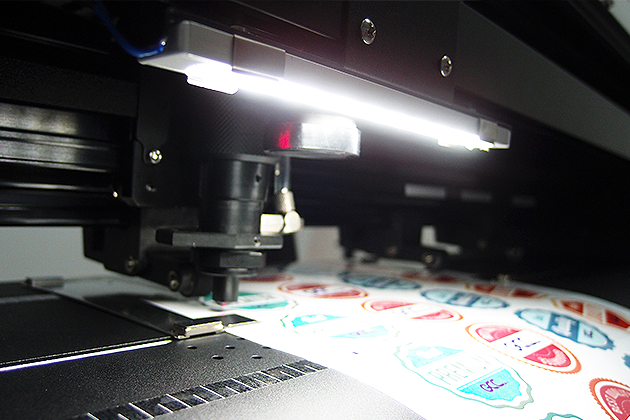

Illumination Light
Built-in LED light module illuminates the working space and makes every engraving detail easy to see.

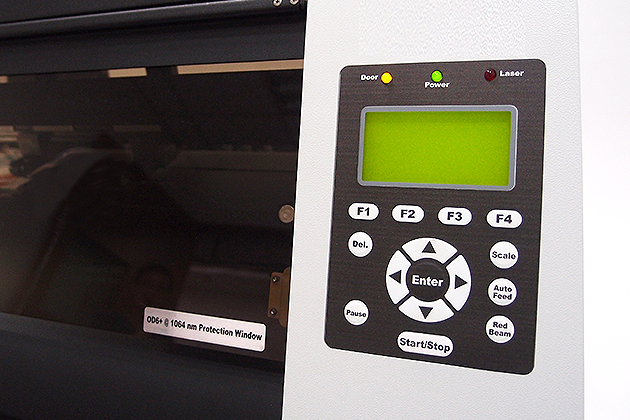

Intuitive Control Panel Interface
A control panel with coherent hot-key design and graphical icon display allows you to change laser parameter settings, set jobs to a repetitive mode, queue jobs, delete jobs, etcetera.
Air Compressor
Air Compressor
A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.
Entry-Level Fume Extraction System
Entry-Level Fume Extraction System
GCC PA-1500FS & PA-1000FS, CE-certified fume extraction systems, are designed to remove the hazardous fumes and dusts during laser processing to protect the health of operators, eliminate environmental pollution and enhance the laser cutting.
WebGuide
WebGuide
The optional Web Guide system is specific for those label customers who request very accurate re-winding that tolerance is only ±0.1mm to meet their downstream firms –
labeling machine’s requests. With GCC Web Guide system for LabelExpress, it’s easy to get this job done.

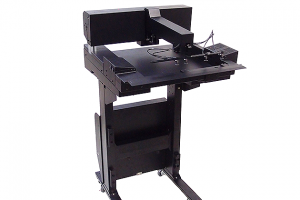

Auto Sheet Feeder
Auto Sheet Feeder
GCC LabelExpress is now available for sheet to sheet solution, not only for roll media, purchase an add-on sheet to sheet module, you can cut sheet labels or any other sheet application as well. Incorporated with auto sheet feeder, LabelExpress enables users to handle the sheet material from media loading to collecting in a continuous, unattended and efficient manner.

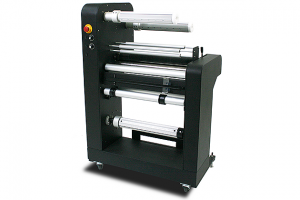

Laminator
Laminator
With GCC Laminator + LabelExpress, you will be able to quickly and easily perform all these label finishing steps in a single, integrated and automated process:
Laminating(optional) / Laser Kiss Cutting / Laser Bridge Cutting / Slitting (optional) / Rewinding to finished rolls

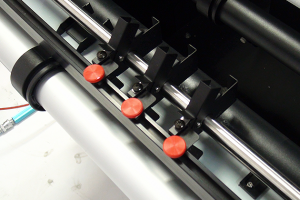

Slitting Module
Slitting Module
Slitting module is able to cut the roll media into smaller webs.

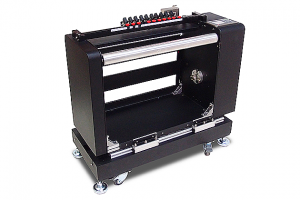

Paper Loading Cart
Paper Loading Cart
Paper loading cart is a handy tool that allows operators to put the media on the cart for the assembly of the media and the wind/rewind system.
External Control Interface
External Control Interface
The External Control Interface Board is an optional item that allows users to set up GCC machine for communication with external devices such as label printer, GCC laminator and others via 24V, 500mA signal to form an automatic production line.
LabelExpressLE15
Model NumberLE15-20V93LE15-30VLE15-25Vi102
Cutting Width381 mm (15")
Work Area (Sheet) (W x L)381 x 500 mm (15" x 19.7")
Max. Label Graphic Size381 x 330 mm (15” x 13”)
Max. Part Size
(W x L x H)		Width400 mm (15.7")
Roll size76.2 mm (3") core with 300 mm (11.8") diameter
Roll Weight25 kgs
Laser SourceSealed CO2 Laser
Wattage20W 9.3-μm30W 10.6-μm
DriveClosed-loop DC Servo Control
Roll to RollStepper motor Control
Maximum Speed1,530 mm/s (60ips) (for straight line cutting)
Speed ControlAdjustable from 0.1~100 %
(Up to 16 color-linked speed settings per job
Power ControlAdjustable from 0~100%
( Up to 16 color-linked power settings per job )
Alignment SystemCCD Module
Distance Accuracy0.254 mm or 0.1% of move, whichever is greater
Computer InterfaceStandard USB port
Operating SystemsMS Windows
Display Panel4-line LCD panel
Paper FeedingAuto feed sensor, re-winding system, paper alignment control,
waste removal system
Vacuum SystemDown vacuum for media fixation
Top vacuum for media surface cleaning
Process MaterialsPaper, PET, PP, BOPP, etc.
SafetyClass IV Laser Product Compliant with EN60825-1:2014
Class IV Laser Product Compliant with CDRH
Dimensions
(W x L x H)		Machine
1,070 x 1,441 x 1,180 mm
(42.2 x 56.7 x 46.5 in.)
Shipping1,320 x 1,660 x 1,490 mm
(52 x 65.4 x 58.7 in.)
WeightMachine250 kg
Shipping385 kg
Facility Requirements
Electrical100~240 Volt AC, 50/ 60Hz, Auto Switching, Max. 10 Amp
Power ConsumptionMAX:1000W
Air Exhaust System (Optional)External exhaust system required (Air Flow: 1000~1500m3/h)
Compressor (Optional)Air Compressor required (Air Capacity: 64~81L/min)
Optional (LabelExpress Laminator)
Lamination WidthMAX: 380mm (15”)
Lamination Film (Outer Diameter)MAX: 250mm (9.8"), with core 76.2mm (3")
Media (Outer Diameter)MAX: 300mm (11.8"), with core 76.2mm (3")

*Specifications are subject to change without prior notice.
