JV-240UV
Digital Printing Machine

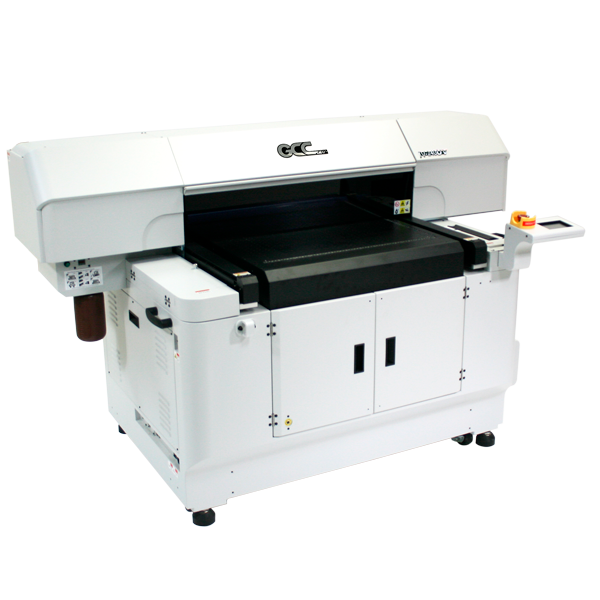

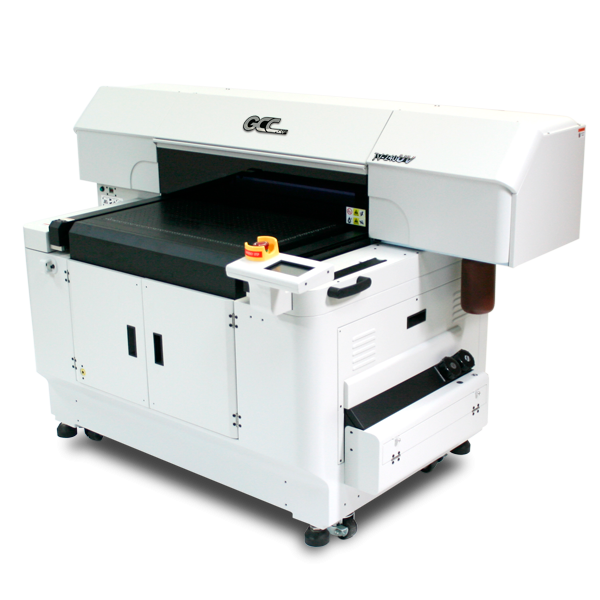

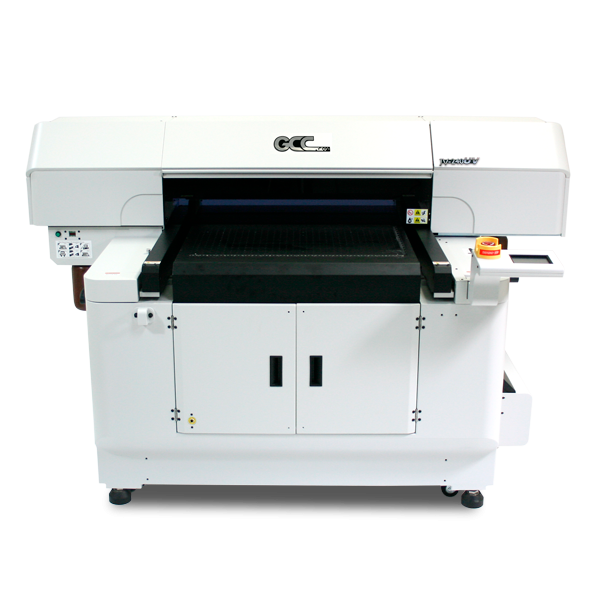

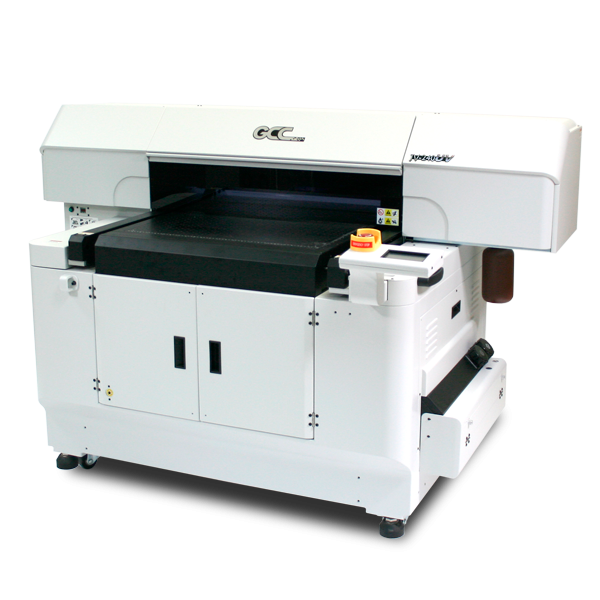

JV-240UV Varnish Printer
The GCC JV-240UV varnish machine provides clear and shiny print finishing and tactile sensation to printed images which upgrade the design to a premium look and increase perceived value.
JV-240UV
JV-240UV-2
JV-240UV-3
JV-240UV-4
1 1
Digital Printing Machine
JV-240UV Varnish Printer
The UV coating produced by GCC JV-240UV turns each of your printed product become a masterpiece.

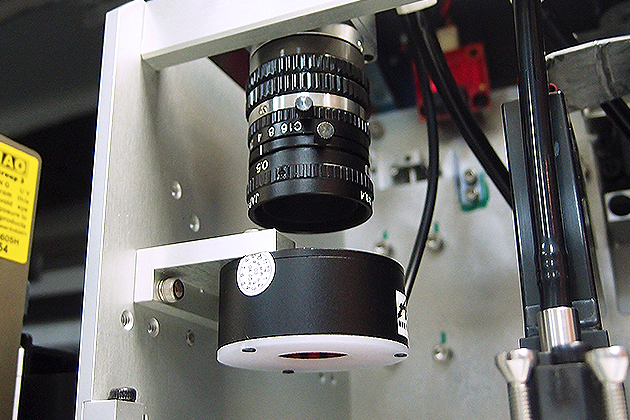

CCD Module
CCD module with automated image scale and rotate compensation allows spot varnishing to designated area.

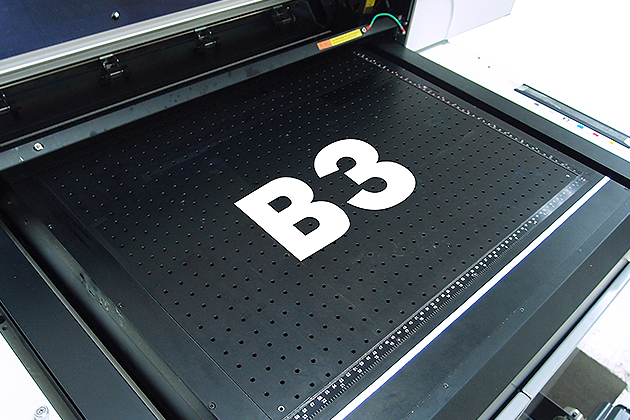

Accept B3 Size Media
Up to B3 plus size work area (24 x 15 in./609 x 380 mm) accepts a wide range of sheet format and allows various applications.

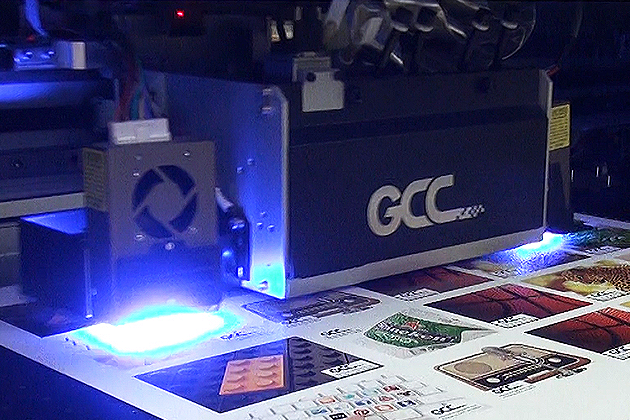

Dual UV LED Lamps
GCC JV-240UV flatbed varnish printer equipped with dual UV LED lamps to reach high throughput, energy saving and environment protection goals.

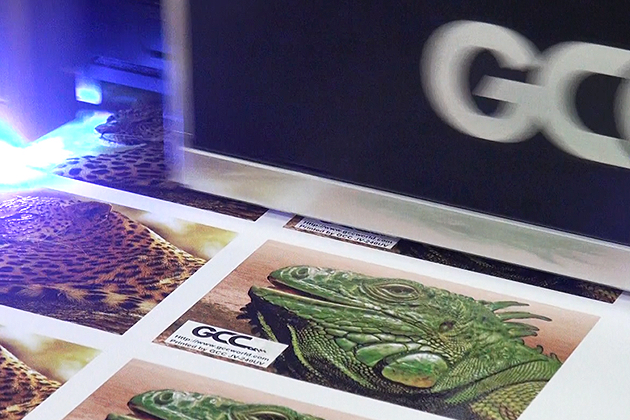

Unbeatable Throughput
JV-240UV print speed is higher than 5 square meters per hour for 4 print heads model suggesting high profitaibility for the business.

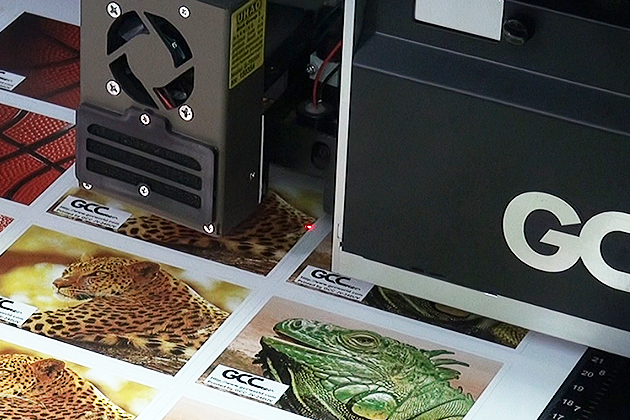

Auto Media Calibration (AMC™)
Auto Media Calibration (AMC™) gauges the distance between the print heads so the loaded media can be automatically detected and adjusted to the optimized position based on the thickness of the loaded media.

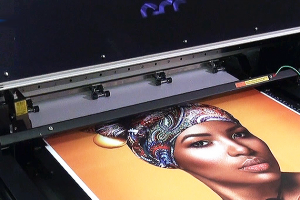

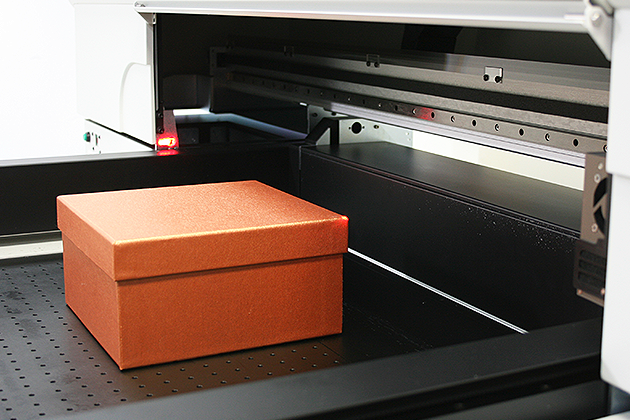

Printhead Gap Auto-Adjustment
Printhead Gap Auto- Adjustment lowers the platform automatically when detecting obstacles that block the movement of printhead before printing to avoid printhead damages.

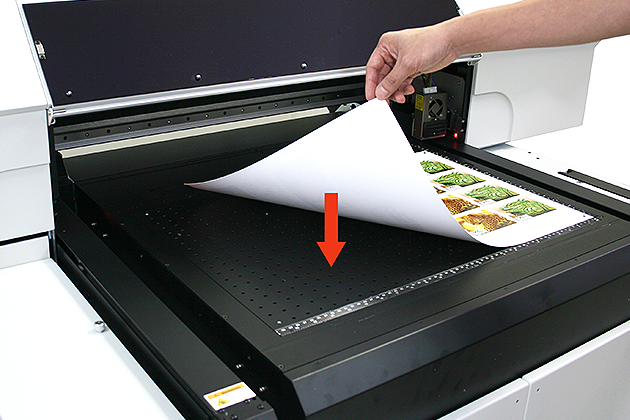

Built-in Down Vacuum Table
Hold the sheet media flat onto the working area by vacuum force to achieve optimized printing quality.

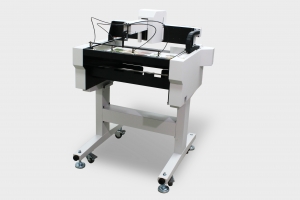

Auto Feeder
Auto Feeder
Auto sheet media feeding system delivers an automated process for varnishing production. Incorporated with auto feeder, JV-240UV enables users to handle the sheet material from media loading, spot varnishing to collecting in a continuous, unattended and efficient manner.
Anti-static Bar
Anti-static Bar
Provides powerful static elimination while printing to enhance the printing quality.
Printing MethodOn-demand Piezo head
Print Head (Drop Size)UV printing dedicated printhead, 14pl
Printing Area (W x L)609.6 x 380 mm (24 x 15 in.)
Max. Media Size
(W x L x H)
Size609.6 x 380 x 170 mm (24 x 15 x 6.7 in.)
WeightLess than 15 kg
Media Height AdjustmentAMC™
Mark DetectionCCD module for automatic positioning
Max. Print Speed45 B3 sheets/hr
Varnish Thickness0.52 mm (with base printing)
Print Accuracy+/- 0.4 mm
InkTypeUV curable ink
Capacity1 liter
Ink Curing UnitDual UV LED lamps
Distance Accuracy – When PrintingError of less than +/-0.3% of distance traveled, or+-0.3mm (0.01 inch), whichever is greater
Z axis MovementMotorized
Control PanelTouch Screen
InterfaceEthernet 1000BASE-T
Operating Environment (Temperature/Humidity)22°C -30°C (71.6°F- 86°F) / (40%-60% humidity), higher is recommended
Operating Voltage110 - 240VAC,  50/60HZ
Power Consumption-Operating115V AC (60HZ) (Max. 270W), 220V AC (50HZ) (Max. 260W)
Power Consumption-Stand by115V AC (60HZ) (Max. 160W ), 220V AC (50HZ) (Max. 200W )
Dimension (WxLxH)Printer1760 x 1160 x 1140 mm (69.3 x 45.7 x 44.9 in.)
Shipping2000 x 1300 x 1360 mm (78.7 x 51.2 x 53.5 in.)
WeightPrinter272 Kg
Shipping433 Kg

*Above specifications are subject to change without prior notice.
