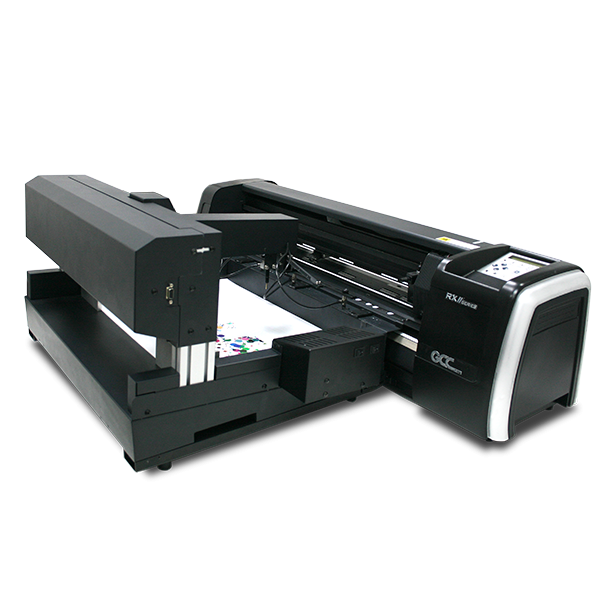

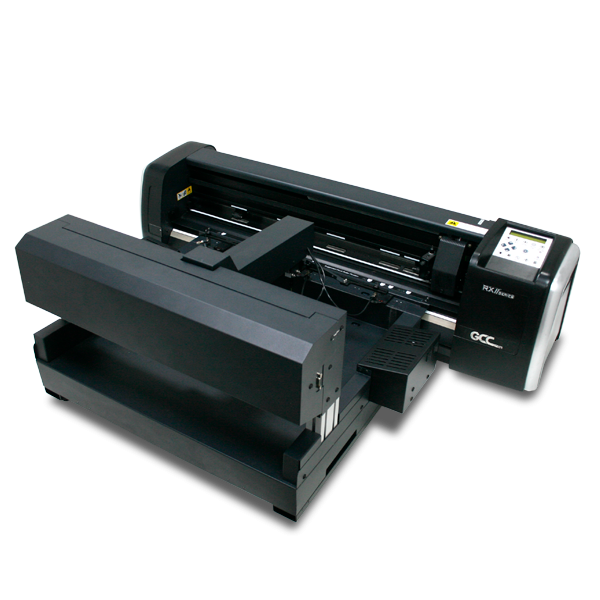

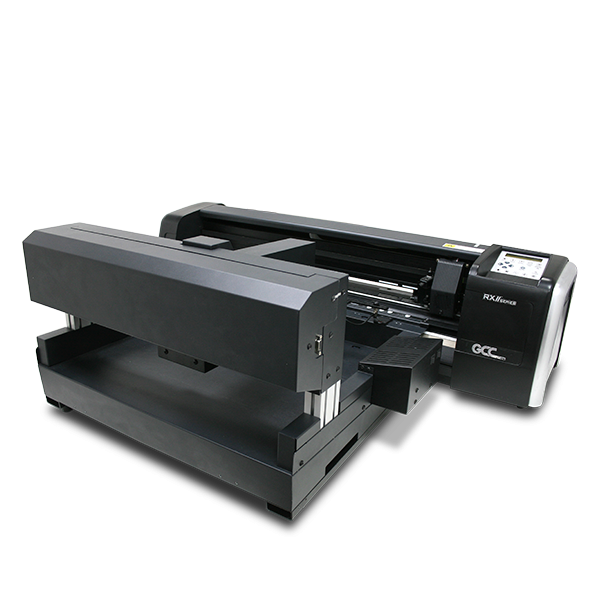

Digital Cutting & Creasing Machine
AFR-24S Automatic Finisher
AFR provides auto cutting and creasing function in sheet feed cutter to simplify your operation through an automatic working procedure in custom products such as package, labels, transfer decals in short-term run.
INQUIRY

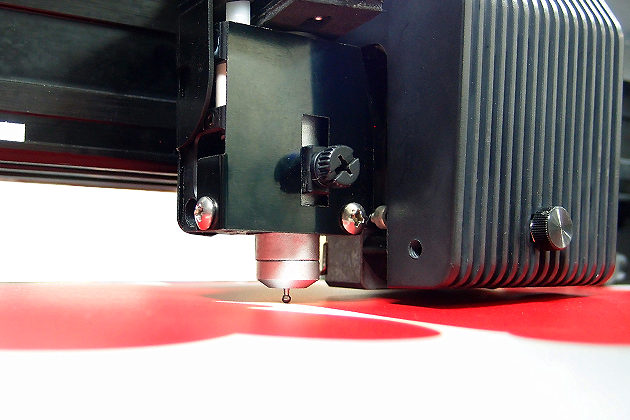

Creasing Ability
Equipped with the dual tool holders with creasing tool and blade, AFR offers cardstock creasing and cutting to make small volume of paper box.
PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.

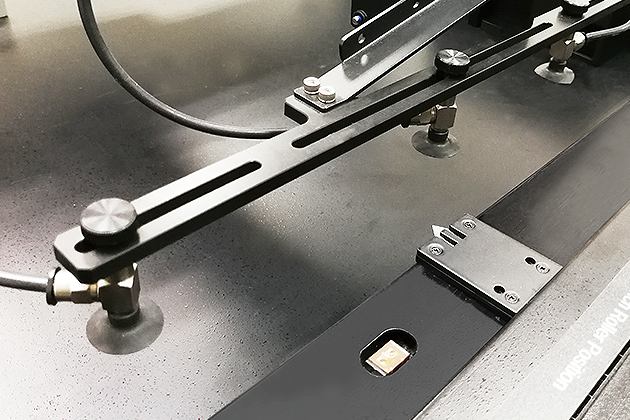

Suction Cup
Strong suction Cup can absorb media easily to load into cutter.

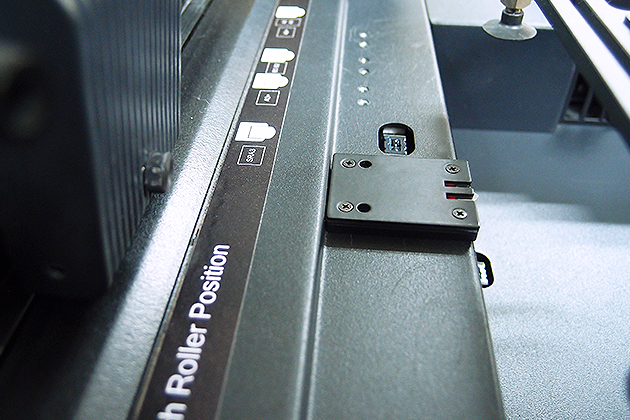

The Magnetic Media Separator
The special design of magnetic media separation mechanism prevents double feeding which ensure single sheet feeding each time as well as an uninterrupted workflow.

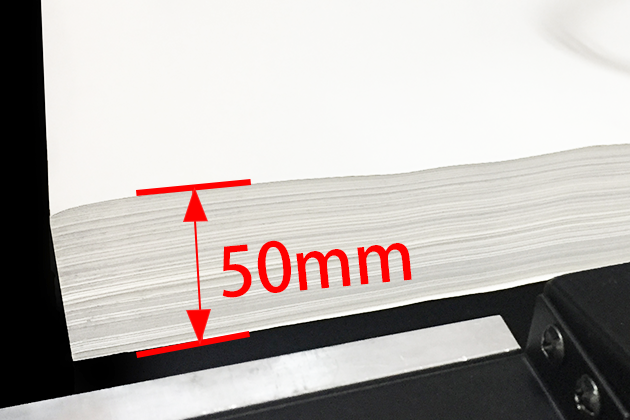

Media Stacking Up to 50mm (250 sheets)
Up to 50mm media stacking suggests great capacity tray and allows unattended operation.
Multiple Parameter Setting by 16 Different Colors
The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.

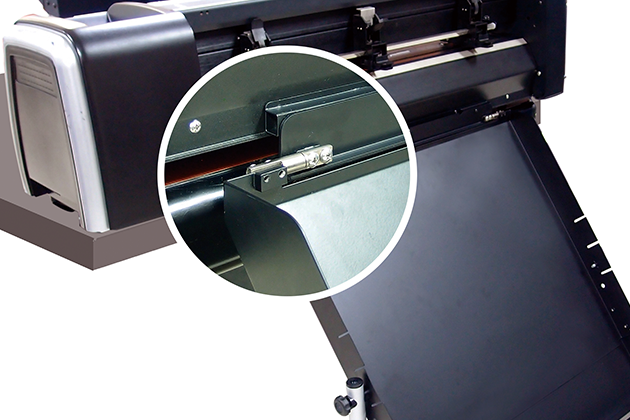

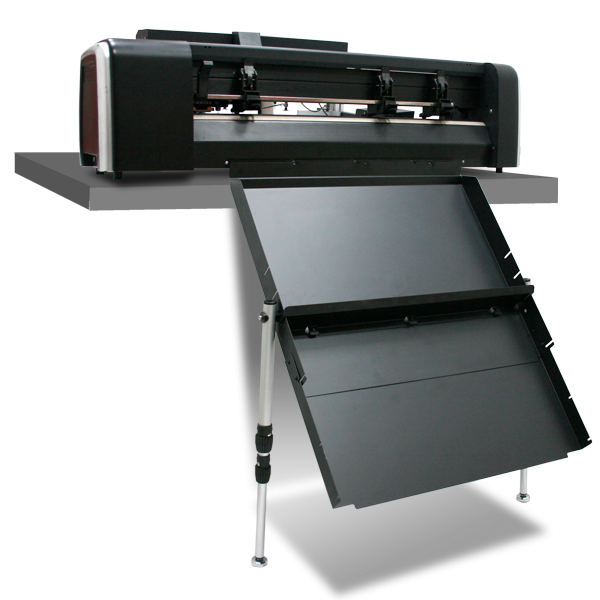

Adjustable Media Collection Tray
With the angle of the rotating hinge, the gradient of the media tray can be adjusted to a proper position to collect the finished jobs.
Metallic Blade Holder Φ2.5mm
Metallic Blade Holder Φ2.5mm
Adjusting the blade length to fit your needs.
Cutting Blades
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
Cutting Pad
It prevents the blades from becoming blunt quickly.

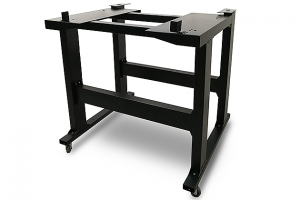

Work Table Assembly
Work Table Assembly
Work table is specific designed for AFJ/AFR which enable to prevent machine from abnormal situation on uneven desktop. It also offers a convenience for user to operation machine without space limit.

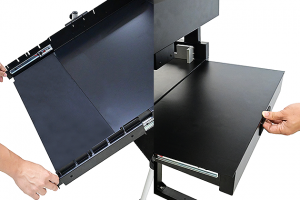

Extension plate supports up to B2 size
Extension plate supports up to B2 size
A new set of extending plate can be attached to auto feeder and media collection tray that can extend working area to support media standard up to B2 size.
ItemAFR-24S
Automatic Finisher Series (Cutter with Auto Feeder Unit)
Supported Media SizeA4 (297 x 210 mm), SRA4 (320 x 235 mm), A3 (297 x 420 mm),
SRA3 (320 x 450 mm), B3 (500 x 353 mm) (landscape orientation)
Optional: B2 (500 x 707 mm)
A3+ (329 x 483 mm) (portrait orientation)
InterfaceUSB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
Power Source100 to 240 V AC (It is required three power outlet.)
Operating EnvironmentTemperature: 15 to 30°C/60°F~86°F
Humidity: 25 to 75 % RH (non-condensing)
Dimensions (Cutter With Feeder)Approx. 1098(W) x 1140 (D) x 782 (H) mm
WeightApprox. 47.5 kg (Cutter unit: 25.5 kg, Auto feeder unit: 22 kg)
Cutter UnitRX II-61 (Creasing)
Cutting SpeedMax. 1,530 mm/s (at 45° direction)
AccelerationMax. 4.2 G
Cutting ForceMax. 600 g
InterfaceUSB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
Power Source100 to 240 V AC
Power ConsumptionMax. 251.8 watts
Auto Feeder UnitAuto Feeder
Supported MediaWidth: 279 to 500 mm, Length: 210 to 700 mm
(Extend to 700 mm length when the optional extension table are installed.)
Up to 350 g/m2
Capacity of Supply Tray250 Sheets @150 g/m2 or up to 50 mm height
(It varies by the material, thickness and condition of media.)
Interface Serial (RS-232C)
Power SourceInput: 100 to 240VAC, Approx. 60W(MAX.200W)at output.
  • *Specifications are subject to change without prior notice.100 to 240VAC, Approx. 60W(MAX.200W)at output.100 to 240VAC, Approx. 60W(MAX.200W)at output.
  • Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
