AFJ-24S-1
Digital Sheet Feeding Machine

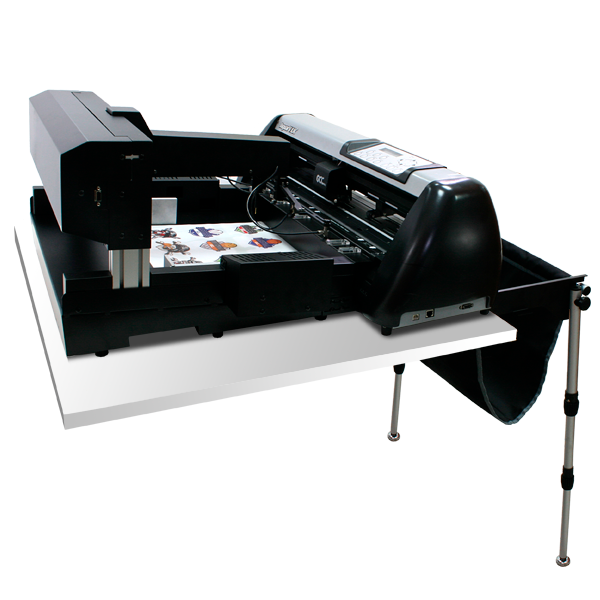

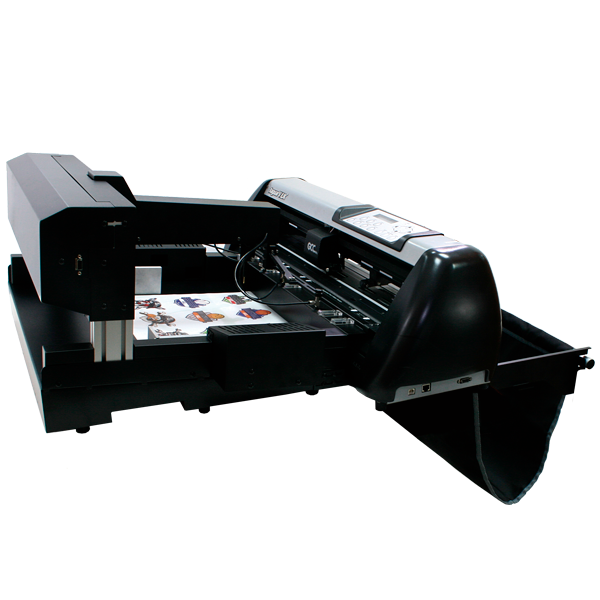

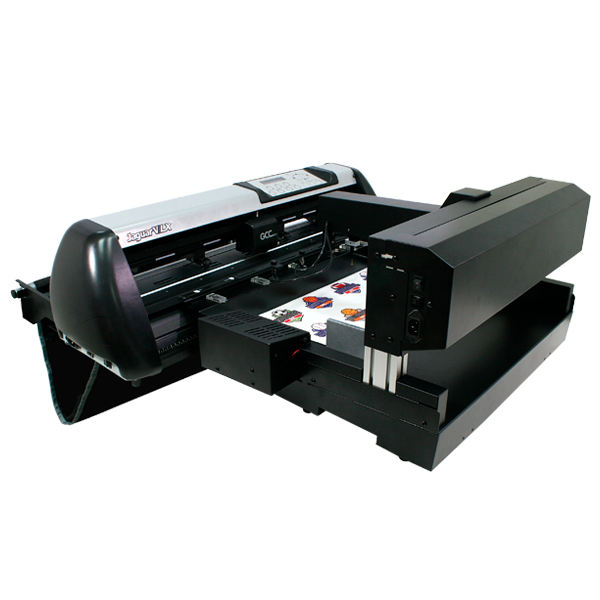

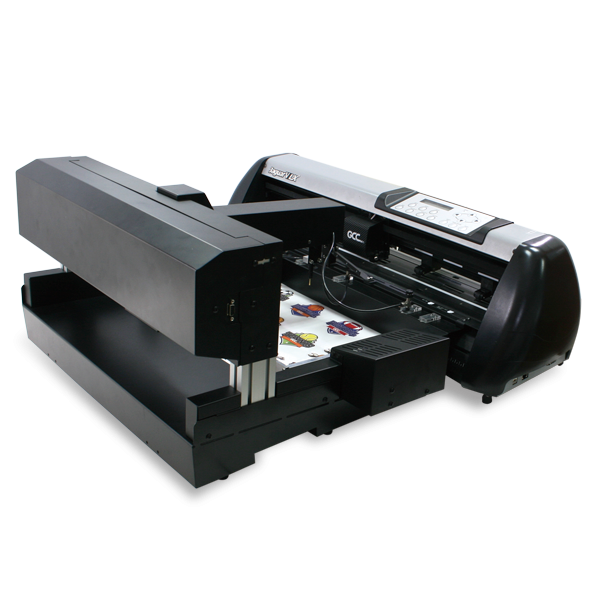

AFJ-24S Automatic Finisher
GCC digital sheet fed cutter AFJ-24S provides labor free operation with guaranteed precise contour cutting that satisfy diverse needs in custom labels, transfer decals and many more.
AFJ-24S-1
AFJ-24S-2
AFJ-24S-3
AFJ-24S-4
1 1
Digital Sheet Feeding Machine
AFJ-24S Automatic Finisher
GCC digital sheet fed cutter AFJ-24S provides labor free operation with guaranteed precise contour cutting that satisfy diverse needs in custom labels, transfer decals and many more.
INQUIRY

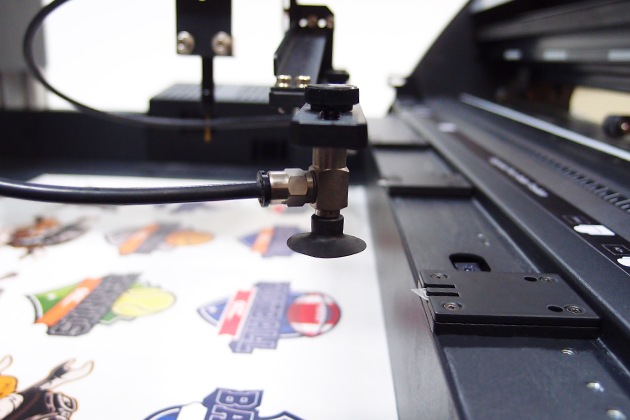

Suction Cup
Suction cup facilitates automated sheets feeding process

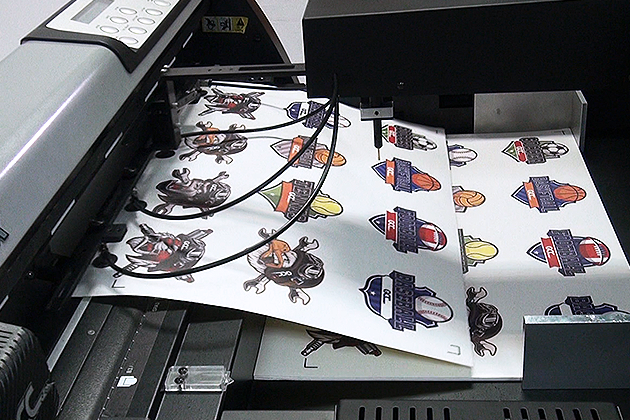

Media Separation Mechanism
The special design media separation mechanism prevents double feeding which ensure single sheet feeding each time as well as an uninterrupted workflow.

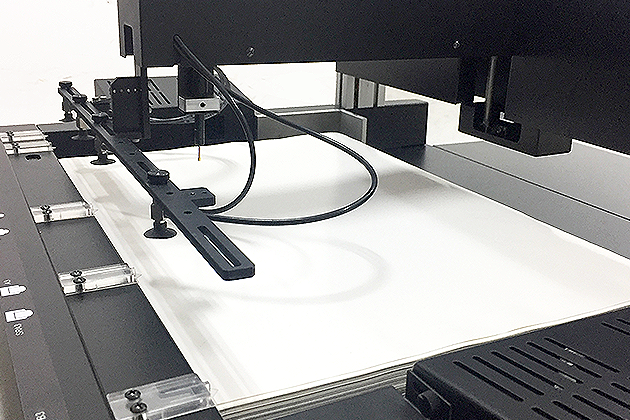

Accept B3 Size Media
Support media standard up to B3 size that accommodate most commonly used media size.

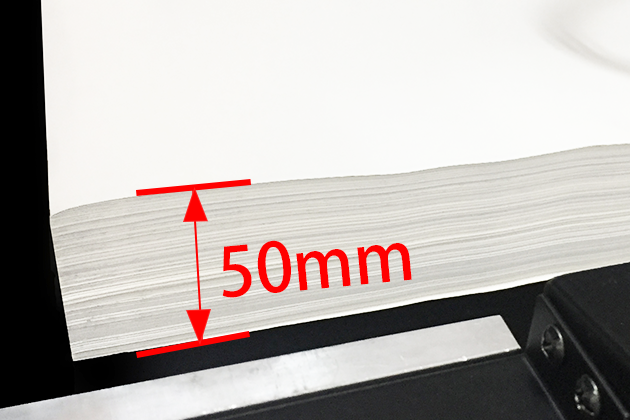

Media Stacking Up to 50mm
Up to 50mm media stacking suggests great capacity tray and allows unattended operation.

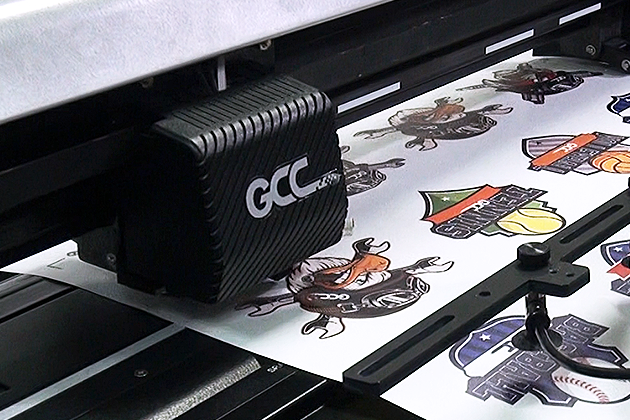

Enhanced AAS II Contour Cutting System
A standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.

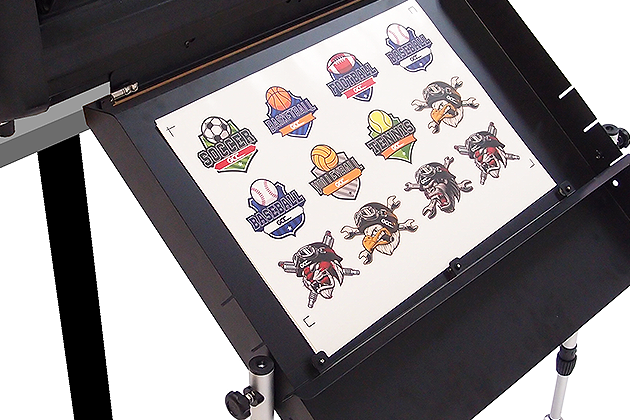

Media Tray Collects Completed Cutting Sheets
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Metallic Blade Holder Φ2.5mm
Metallic Blade Holder Φ2.5mm
Adjusting the blade length to fit your needs.
Cutting Blades
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
Cutting Pad
It prevents the blades from becoming blunt quickly.
Work Table Assembly
Work Table Assembly
Work table is specific designed for AFJ/AFR which enable to prevent machine from abnormal situation on uneven desktop. It also offers a convenience for user to operation machine without space limit.
Extension plate supports up to B2 size
Extension plate supports up to B2 size
A new set of extending plate can be attached to auto feeder and media collection tray that can extend working area to support media standard up to B2 size.
ItemAFJ-24S
Automatic Finisher Series (Cutter with Auto Feeder Unit)
Supported Media Size
A4 (297 x 210 mm), SRA4 (320 x 235 mm), A3 (297 x 420 mm), SRA3 (320 x 450 mm), B3 (500 x 353 mm) (landscape orientation)
Optional: B2 (500 x 707 mm)
A3+ (329 x 483 mm) (portrait orientation)
InterfaceUSB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
Power Source
100 to 240 V AC (It is required three-prong outlet.)
Operating EnvironmentTemperature: 15 to 30°C/60°F~86°F
Humidity: 25 to 75 % RH (non-condensing)
Dimensions (Cutter with Feeder)Approx. 950 (W) x 1,080 (D) x 780 (H) mm
(The cutter should be placed on the edge of a table)
WeightApprox.  40 kg (Cutter unit: 18 kg, Auto feeder unit:  22 kg)
Cutter Unit J5-61LX
Cutting SpeedMax. 1,530 mm/s (at 45° direction)
AccelerationMax. 4.2 G
Cutting ForceMax. 600 g
InterfaceUSB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
Power Source100 to 240 V AC
Power ConsumptionMax. 110 watts
Auto Feeder UnitAuto Feeder
Supported MediaWidth: 279 to 500 mm, Length: 210 to 700 mm
(Extend to 700 mm length when the optional extension table are installed.)
Up to 350 g/m2
Capacity of Supply tray250 Sheets @150 g/m2 or up to 50 mm height
(It varies by the material, thickness and condition of media.)
Interface Serial (RS-232C)
Power SourceInput: 100 to 240VAC, Approx. 60W(MAX.200W)at output.
  • *Specifications are subject to change without prior notice.100 to 240VAC, Approx. 60W(MAX.200W)at output.100 to 240VAC, Approx. 60W(MAX.200W)at output.
  • Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
