GCC LaserPro S290LS Focal Lens Flexible Adaptability

Laser Engraver

Adaptations of the focal lens to various applications will offer tremendous possibilities, creating different engraving results with assorted resource media.

GCC LaserPro S290 offers two different sized lenses for more flexibility of applications. This issue of Application sharing will introduce two varied Lens specifications and how they differ in applications.

Please find below the experimentation results from the LaserPro application lab for a better perception of application results.

Working object: 0.1mm metallic piece

1. Lens specifications

2. Comparison of engraving results

On stainless steel, two differed lens will create two varied engraving results.

A. Comparison by Spot size

S290 and CO2 Laser are similar in which their Spot sizes will change to match the different lenses used. 2” Lens and 4” Lens both offer different spot sizes.

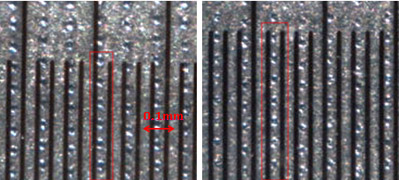

The engraved results on metallic media are not easily differentiated by the human eye perception. Please refer to the following graphs where we used the magnifying glass and further assessed the engraved results by optical measure standards: the 2” Lens engraved spot sizes measured between 0.05~0.06mm, and the 4” Lens engraved 0.08~0.09mm respectively.

　　　　　2” Sample　　　　　　 4” Sample　　　　　　

B. Compare by engraving depth

Here we use metal pieces with a width of 0.1mm for engraving; its results will distinguish and allow for comparisons of actual engraving depths.
In terms of setting engraving parameters, please set Speed at 1%~2%, and Power at 100%. Here are the differences of engraving results between the 2” Lens and the 4” Lens.

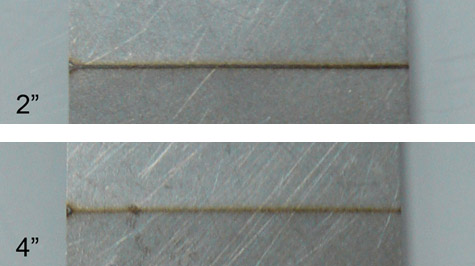

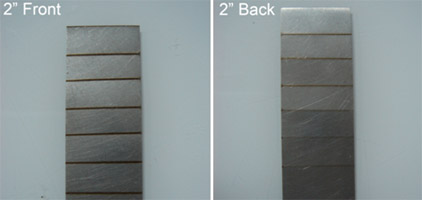

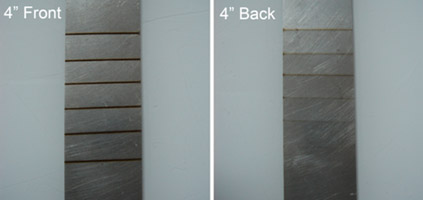

With identical parameter settings, the 2” Lens will achieve deeper engraving results than the 4” Lens. The following graph also demonstrates that with the same given Speed of 1%, the 2” Lens can almost cut through the metallic piece, but the 4” Lens only managed to give a slight cutting mark.

Test Results:

Lens	2”	4”
Parameters	Speed:1%、Power:100%	Speed:0.6%、Power:100%
Depth	0.1 mm	0.1 mm

The 2” Lens will engrave depths approximating to 0.1mm at a speed of 1%, but the 4” lens could only match the same depth result with a speed of 6% (Power set at 100%).

Slower speeds will generate even deeper engraving results, but please take caution with heat levels as it may cause possible damage to resource media.

C. Compare by the smallest text engraved

Conducting small text experiments and limiting between 1mm~0.1mm, aiming to test and find the smallest texts possible from using both 2” and 4” lenses. There is only a slight difference of texts between both lenses, the smallest recognizable text is 0.3mm, and is the same for both. The greatest different between both lenses being that 2” lens gives more refined texts than the 4”lens, the following graphic example further exemplifies this difference.

　　　　 2”small text Sample　　　　　4”small text Sample

3.Application recommendations

From the comparisons above, users should be able to take advantages of both lenses and utilize their strengths in future applications using different resource media. Select lenses according to your application requirements for best results.

Application	Lens	Remark
Deep Engraving	2” Lens	Shorter focus, smaller Spot size, higher Power density. When equal time duration is given, 2” will generate deeper engraving results.
Graphic and Vector Engraving	4” Lens	Generates a bigger spot size, faster engraving speed, cautiously works with the surface of resource materials.
Text Engraving	2” & 4” Lens	Both Lens are applicable, select in accordance with chosen resource media and required engraving depth.
